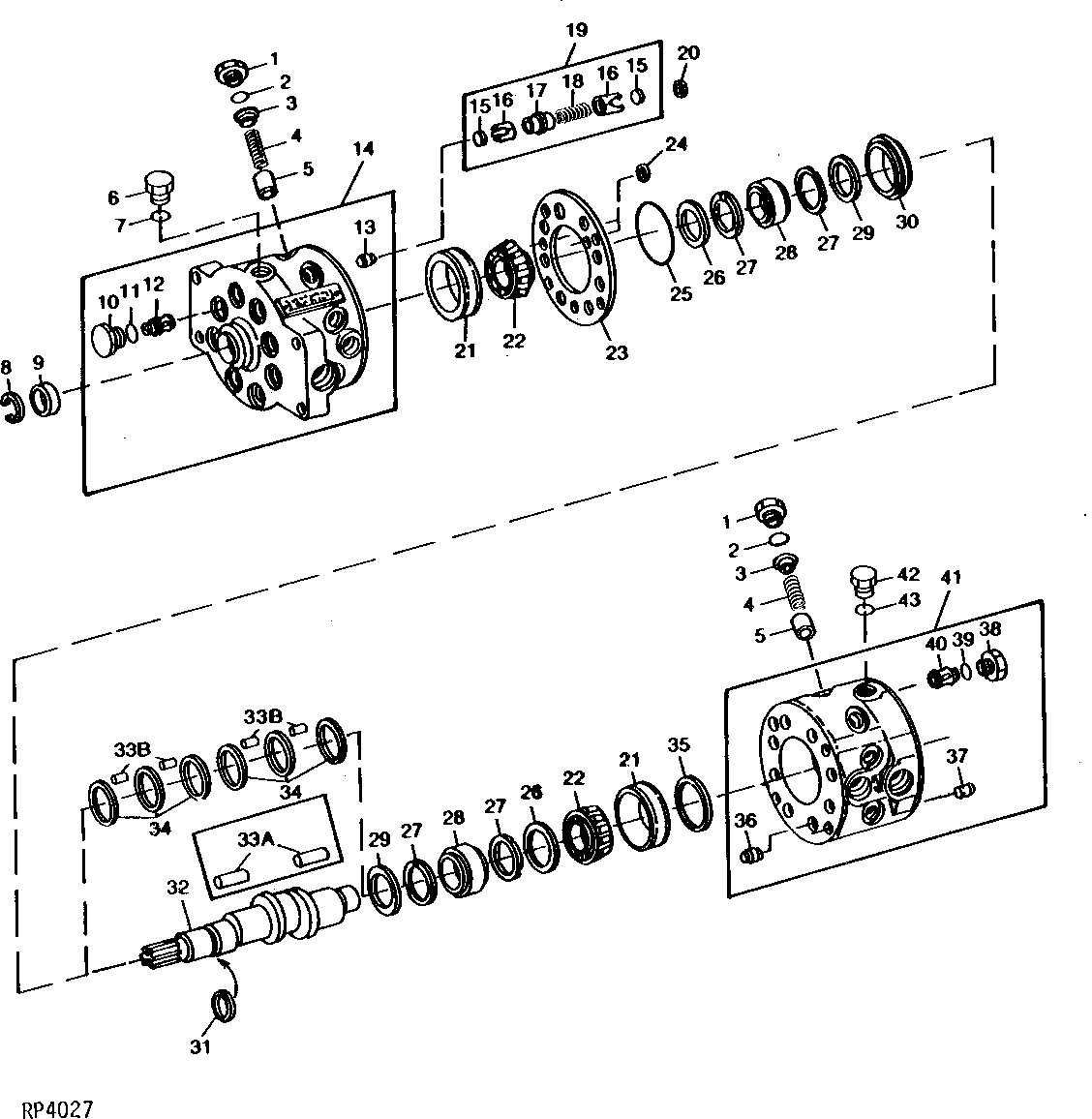

HYDRAULIC PUMP - MODEL LB1 100 CM3 (6 IN.3) [03F20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R45438	16	Fitting	-
2	R56463	16	O-Ring	-
3	R56749	16	DUST SHIELD	(SUB FOR (2) AR101236)
4	R62372	2	Spring	(SUB FOR AR76762) (SET OF 8)
5	R27150	16	PISTON	-
6	R27474	1	Drain Plug	-
7	R26906	1	O-Ring	-
8	R26137	1	Snap Ring	-
9	RE28790	1	SEAL	(SUB FOR AR52224)
10	R81825	8	DRAIN PLUG	-
11	R27149	8	O-Ring	-
12	AR53301	8	VALVE	(INLET)
13	R105583	8	Valve Seat Insert	-
14	RE11805	1	HOUSING	PRIMARY (MODEL PH1) (MARKED R71988)
15	R49297	16	DISK	-
16	R48738	16	GUIDE	-
17	R72887	8	STOP	-
18	R39208	8	Spring	-
19	AR96614	8	VALVE	(OUTLET)
20	R107239	8	Packing	(SUB FOR (8) R69279)
21	JD8223	2	Bearing Cup	-
22	JD8192	2	BEARING CONE	-
23	R70686	1	PLATE	-
24	R56755	2	WASHER	-
25	R56757	1	O-Ring	-
26	R77903	2	WASHER	-
27	R72507	4	Thrust Washer	-
28	R80558	2	Bearing Race	(SUB FOR R72506)
29	R77905	2	THRUST WASHER	-
30	R70726	1	SLEEVE	-
31	R77611	1	SEALING WASHER	(SEALING) (SUB FOR RE11777)
32	R71597	1	SHAFT	-
34	R85557	6	WASHER	-
35	R27478	1	SHIM	0.15MM (.006")
35	R27479	1	SHIM	0.25MM (.010")
36	R105583	8	Valve Seat Insert	-
37	R36728	1	BUSHING	-
38	R51912	8	FITTING	-
39	R27149	8	O-Ring	-
40	AR53301	8	VALVE	(INLET)
41	RE13616	1	HOUSING	SECONDARY, (MARKED R71991) (SUB RE15817) (ALSO ORDER RE15821)
41	RE15817	1	HOUSING	SECONDARY, (MARKED R79734) (SUB FOR RE13616 OR RE15823)
42	R27474	1	Drain Plug	-
43	R26906	1	O-Ring	-
..	AR96177	1	HYDRAULIC PUMP	-
33A	R116712	50	Needle Roller	(SUB FOR R45422)
33B	R116713	100	Needle Roller	(SUB FOR R85558)

HYDRAULIC PUMP - MODEL LB1 100 CM3 (6 IN.3) [03F20]
