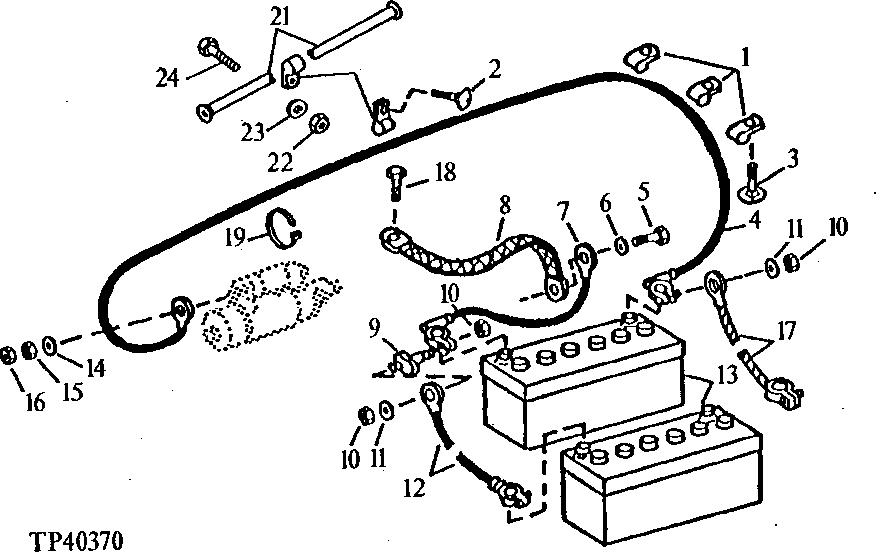

HEAVY-DUTY BATTERY INSTALLATION (320-MINUTE RESERVE) [02J08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T78787	3	Clamp	(SUB FOR T27550, THIS APPLICATION)
2	19M7784	1	Screw	M10 X 20
3	37H108	3	SCREW	3/8" X 5/8"
4	-	1	Part 4	( AT156351 NO LONGER AVAILABLE)
4	-	1	Part 5	( AT156351 NO LONGER AVAILABLE)
4	-	1	Part 6	( AT156351 NO LONGER AVAILABLE)
4	AT149613	1	BATTERY CABLE	(K) (USE WHEN AT156351 HAS BEEN INSTALLED)
5	19H1648	1	Cap Screw	3/8" X 3/4"
6	24H1305	1	Washer	13/32" X 13/16" X 0.065"
7	AR69238	1	BATTERY CABLE	-
8	AT167399	1	Ground Cable	(SUB FOR AT100506)
9	T31161	1	Stud	-
10	14H785	2	Nut	5/16"
11	12H303	2	Lock Washer	5/16"
12	AP19384	1	BATTERY CABLE	-
13	TY21741	2	DRY CHARGED BATTERY	(SUB FOR AT29160 AND TY6106)
13	TY6127	2	DRY CHARGED BATTERY	-
14	12H295	1	Lock Washer	0.190"
15	14H631	1	Nut	0.190"
16	14H812	1	NUT	3/8"
16	14H812	1	NUT	3/8"
16	14H1040	1	Nut	1/2"
17	AT46152	1	BATTERY CABLE	-
18	19H3649	1	CAP SCREW	9/16" X 1"
19	H77698	1	Tie Band	-
20	T78787	1	Clamp	(CONVERTER DIPSTICK TUBE SUPPORT)
20	R46667	1	Clamp	(K)
21	T130266	1	TUBE	(K)
22	14M7274	1	Nut	(K) M10
23	24H1305	1	Washer	(K) 13/32" X 13/16" X 0.065"
24	19M7402	1	Cap Screw	(K) M10 X 25
