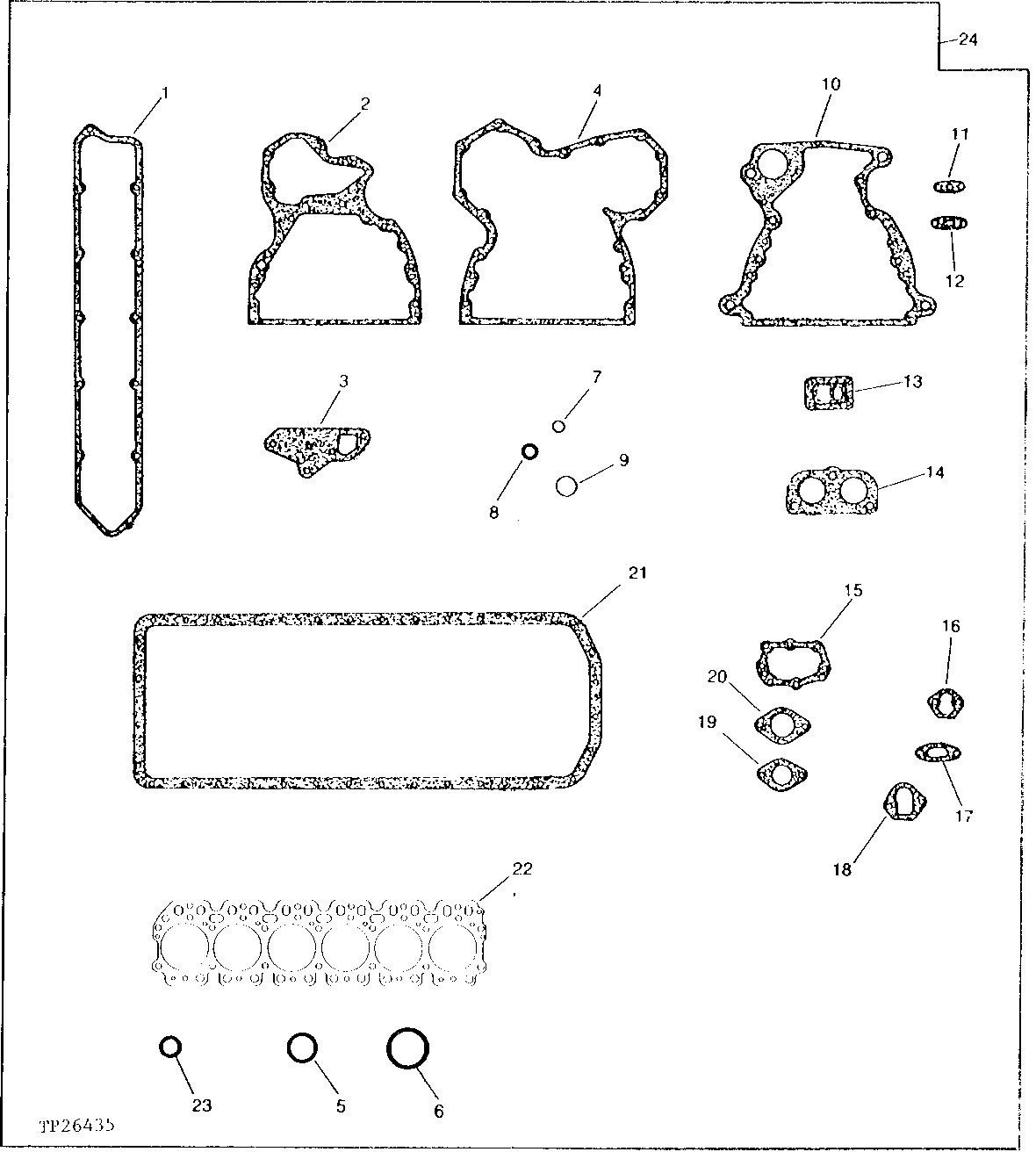

ENGINE OVERHAUL GASKET SET (710B AND 710C WITH 6359 ENGINE) (710C WITH 6059 ENGINE) [02F07]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R75728	1	Gasket	ROCKER ARM COVER, (SUB FOR AR102260)
2	R73140	1	GASKET	CYLINDER BLOCK PLATE
2	R131794	1	Gasket	(SUB FOR R90648) CYLINDER BLOCK PLATE
3	T20243	1	Gasket	WATER PUMP
4	R121314	1	Gasket	TIMING GEAR COVER, (SUB FOR T20155 OR R97454 OR R119269)
5	R123572	1	Gasket	(SUB FOR R89879, THIS APPLICATION) THERMOSTAT BYPASS TUBE
5	R56461	1	O-Ring	WATER PUMP BYPASS TUBE
6	R70956	1	Washer	OIL COOLER
7	R74354	1	O-Ring	OIL PUMP OUTLET TUBE
8	R56463	1	O-Ring	VENT TUBE
9	T20328	1	Gasket	OIL FILLER CAP
10	R97351	1	Gasket	FLYWHEEL HOUSING, (SUB FOR R70483)
11	R97348	1	GASKET	TURBOCHARGER OIL INLET, (SUB FOR R43413)
12	R105346	1	Gasket	TURBOCHARGER OIL OUTLET, (SUB FOR R97349)
12	R105346	1	Gasket	TURBOCHARGER OIL OUTLET, (SUB FOR R43416 AND R97349)
13	R89879	1	Gasket	TURBOCHARGER, (SUB FOR R55509)
14	R501373	1	Gasket	(SUB FOR R54638) THERMOSTAT COVER
15	T20273	1	GASKET	TIMING GEAR COVER OPENING COVER
16	R520618	1	Gasket	FUEL PUMP, (SUB FOR R27285, R97350)
17	R97352	1	Gasket	OIL FILLER INLET, (SUB FOR T20336)
18	R125066	1	Gasket	INJECTION PUMP COVER, (SUB FOR R69260 AND R78366 OR R97773)
19	R90658	6	Gasket	EXHAUST MANIFOLD, (SUB FOR T20006) (ALL T20006 GASKETS MUST BE REPLACED AT THE SAME TIME. DO NOT MIX T20006 AND R90658)
20	R81275	2	Gasket	AIR INLET, (SUB FOR T20159, THIS APPLICATION)
21	T20205	1	GASKET	OIL PAN (USE IF AVAILABLE)
21	R97344	1	Gasket	OIL PAN, (SUB FOR T20205)
22	R91880	1	GASKET	CYLINDER HEAD (USE IF AVAILABLE) (SUB FOR R59449 AND R80243)
22	R114157	1	Engine Cylinder Head Gasket	(SUB FOR R91880 OR R92426)
23	R87627	12	O-RING	VALVE STEM, (SUB FOR R27976, THIS APPLICATION)
24	RE501580	1	Gasket Kit	(SUB FOR RE38858) (ALSO ORDER (6) AR65507, (6) R48000 AND (6) RE32011)

ENGINE OVERHAUL GASKET SET (710B AND 710C WITH 6359 ENGINE) (710C WITH 6059 ENGINE) [02F07]
