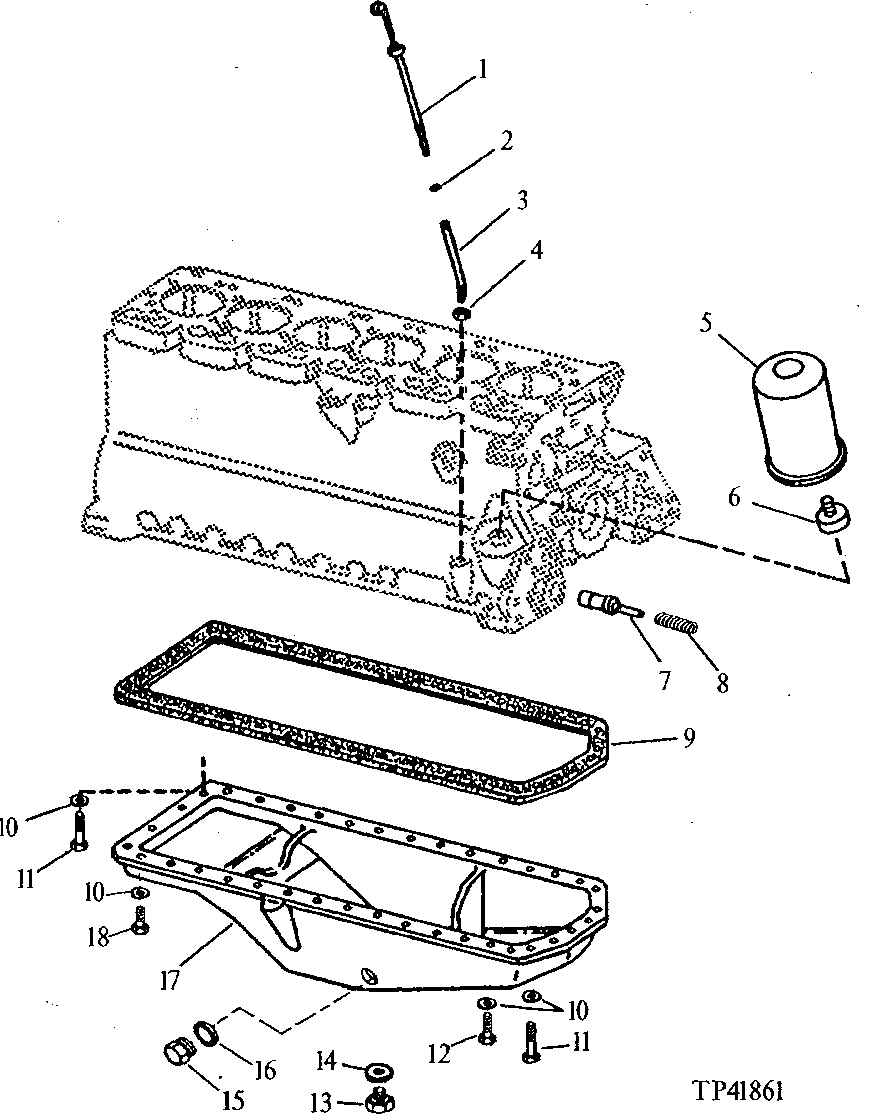

ENGINE OIL PAN, DIPSTICK, FILTER AND BYPASS VALVE [02C21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT21535	1	Dipstick	(6359)
1	AR69019	1	DIPSTICK	(6329)
2	R10093	1	O-Ring	-
3	R57479	1	TUBE	(6329)
3	R86819	1	Dipstick Tube	(6359) (SUB FOR R83568)
4	14H826	1	Nut	1/2"
5	T19044	1	Oil Filter	-
6	T23435	1	Threaded Nipple	-
7	R73139	1	Flow Control Hyd. Valve	-
8	R46625	1	SPRING	-
9	R97344	1	Gasket	OIL PAN, (SUB FOR T20205)
9	T20205	1	GASKET	(USE IF AVAILABLE)
10	12H304	36	Lock Washer	3/8"
11	19H3411	26	Screw	3/8" X 1-1/8"
11	19H3727	4	Screw	3/8" X 2"
12	19H2633	6	Cap Screw	3/8" X 1-1/2", (6329)
12	19H3239	2	Cap Screw	3/8" X 1-1/4", (6359) (SUB FOR 19H1765, THIS APPLICATION)
13	M1746T	1	Drain Plug	(SUB FOR R59048) (ALSO ORDER R27474 AND R47151)
14	T13213	1	WASHER	-
15	R27474	1	Drain Plug	-
16	R47151	1	O-Ring	-
17	R132653	1	Oil Pan	(SUB FOR R59048 AND R108380) (ALSO ORDER M1746T AND (2) 19H3727)
18	19H3065	2	Cap Screw	3/8" X 2"

ENGINE OIL PAN, DIPSTICK, FILTER AND BYPASS VALVE [02C21]
