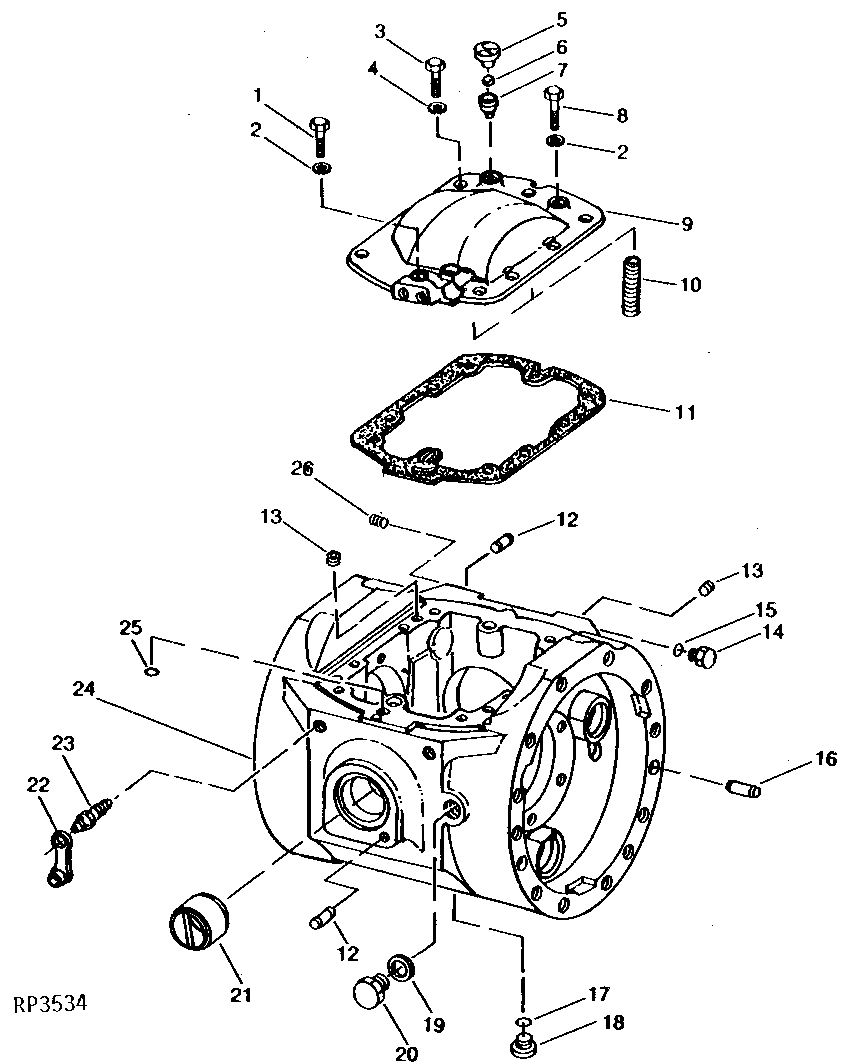

DIFFERENTIAL CASE AND COVER (710B) [01B23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R57736	1	SCREW	-
2	12H317	2	Lock Washer	9/16"
3	19H2500	8	CAP SCREW	7/16" X 1-3/8"
4	12H293	8	Lock Washer	7/16"
5	AM1074T	1	BREATHER	-
6	400R	1	Ball	-
7	T70726	1	VALVE SEAT	-
8	A2482R	1	SCREW	-
9	R74486	1	COVER	-
10	29H593	1	Threaded Nipple	1/2" X 2-1/2"
11	R100301	1	GASKET	(SUB FOR R57741)
12	R48685	2	Dowel Pin	-
12	15H558	1	Pipe Plug	1/8"
13	R21630	6	PIPE PLUG	-
14	R27094	2	Drain Plug	-
15	R26286	2	O-Ring	-
16	T26565	4	Dowel Pin	(SUB FOR C1220R)
17	R26375	1	O-Ring	-
18	R33138	1	Fitting	-
19	A4827R	1	Washer	-
20	R26727	1	DRAIN PLUG	-
21	R55523	1	BUSHING	(NOT REQUIRED)
22	R47862	1	Cap	-
23	R21612	2	Bleed Valve	-
24	RE17711	1	CASE	(MARKED R78171 OR R78172) (SUB FOR RE15669) (SUB RE12749, (3) RE46330 (MARKED R97994), RE46335 (MARKED R79673), R48240 AND R91782)
24	RE12749	1	CASE	(MARKED R78171 OR R78172) (ALSO INCLUDES DOWEL PINS, PLUG CAPS, SHIMS, PIPE PLUGS, O-RINGS AND BUSHINGS) (WITHOUT BRAKE PRESSURE PLATE AND FACINGS) (SUB FOR RE15031)
25	AR67783	1	O-RING KIT	-
26	R21630	1	PIPE PLUG	-

DIFFERENTIAL CASE AND COVER (710B) [01B23]
