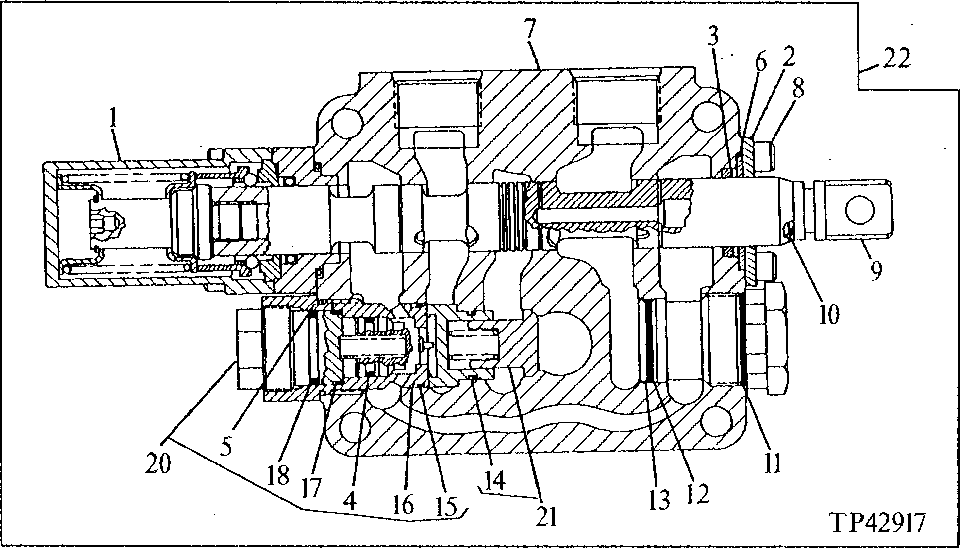

BOOM SECTION (GRESEN V30 VALVE) (SERIAL NO. 735281- ) [03I15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT114566	1	RETAINER	-
2	T106147	1	PLATE	-
3	T75982	1	BACK-UP RING	(K) (WITH EARLY DESIGN) (SUB T118736 AND T118737, THIS APPLICATION)
3	T118736	1	SEAL	(K) (WITH LATER DESIGN)
4	R56464	1	O-Ring	-
5	U15242	1	O-RING	-
6	T75976	1	WASHER	(K) (WITH EARLY DESIGN) (SUB T118736 AND T118737, THIS APPLICATION)
6	T118737	1	THRUST WASHER	(WITH LATER DESIGN)
7	-	1	Part 9	(SUB AT107969)
8	19H2701	2	SCREW	1/4" X 5/8"
9	-	1	Part 11	(SUB AT107969)
10	L34378	1	O-Ring	(SUB FOR T36492)
11	U15242	1	O-RING	-
12	T75996	1	BACK-UP RING	-
13	R27928	1	O-Ring	-
14	N31772	1	O-Ring	-
15	T106298	1	BACK-UP RING	(K1) (SUB FOR T106298, THIS APPLICATION)
16	T49819	1	O-Ring	(K1) (SUB FOR T49819, THIS APPLICATION)
17	T75984	1	O-Ring	-
18	U15980	1	O-Ring	-
20	AT106609	1	Check Valve	-
21	AT106602	1	Plug	-
22	AT156429	1	VALVE	(SUB FOR AT107969) (ALSO ORDER AT159848)

BOOM SECTION (GRESEN V30 VALVE) (SERIAL NO. 735281- ) [03I15]
