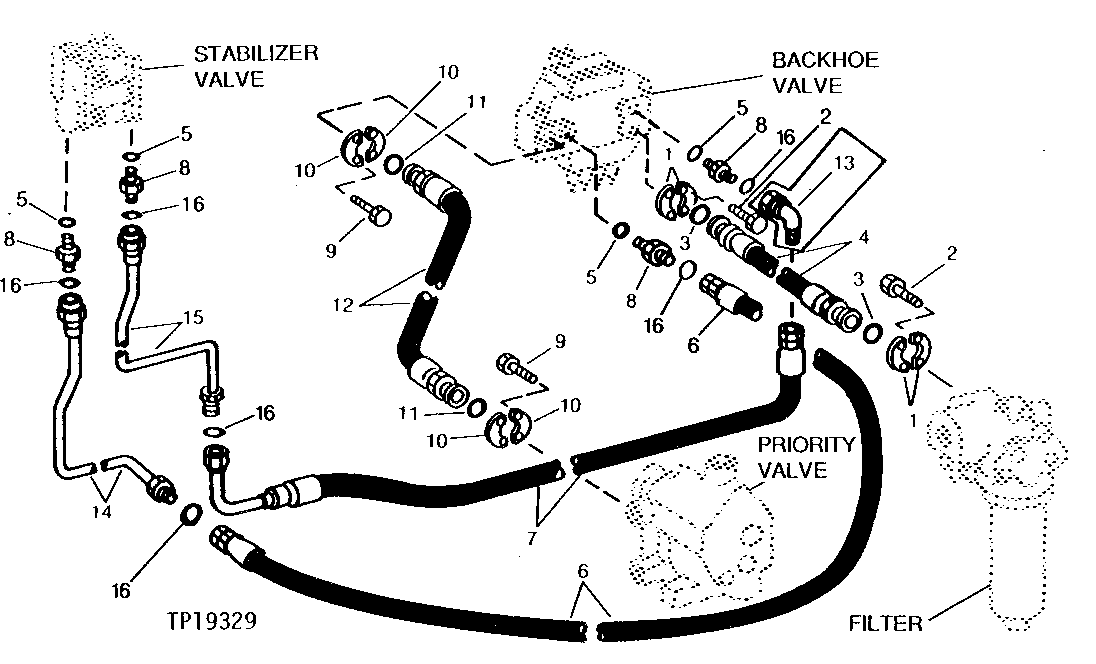

BACKHOE VALVE HYDRAULICS (710B) [04I03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	X51H-24	4	Flange Fitting	(SUB FOR T47649)
2	19H2993	8	Cap Screw	1/2" X 1-1/2"
3	B3690R	2	O-Ring	-
4	AT65250	1	HYDRAULIC HOSE	1-1/2" X 980 MM (38-1/2") X 1-1/2"
5	R26375	4	O-Ring	-
6	AT42233	1	HYDRAULIC HOSE	3/4" X 762 MM (30") X 3/4", (SUB FOR AT36981)
6	AT82906	1	HYDRAULIC HOSE - FABRICATE	13/16" X 800 MM (31-1/2") X 13/16"
7	AT30327	1	HYDRAULIC HOSE - FABRICATE	3/4" X 508 MM (20") X 3/4"
7	AT82905	1	HYDRAULIC HOSE - FABRICATE	13/16" X 530 MM (20-3/4") X 13/16"
8	R27237	4	Fitting	-
8	38H1161	4	Adapter Fitting	-
9	19H3104	8	Cap Screw	7/16" X 1-1/4"
10	R29867	4	Flange Fitting	-
11	U10289	2	O-Ring	-
12	AT65249	1	HYDRAULIC HOSE - FABRICATE	1-1/4" X 1 155 MM (45-1/2") X 1-1/4"
13	AH75164	1	Elbow Fitting	90° (WITHOUT EXTENDIBLE DIPPERSTICK)
14	AT75880	1	OIL LINE	(SUB FOR AT72282)
14	AT82903	1	OIL LINE	-
14	AT106585	1	OIL LINE	-
15	AT75879	1	OIL LINE	(SUB FOR AT72283)
15	AT82904	1	OIL LINE	-
15	AT106586	1	OIL LINE	-
16	T77857	6	O-Ring	-

BACKHOE VALVE HYDRAULICS (710B) [04I03]
