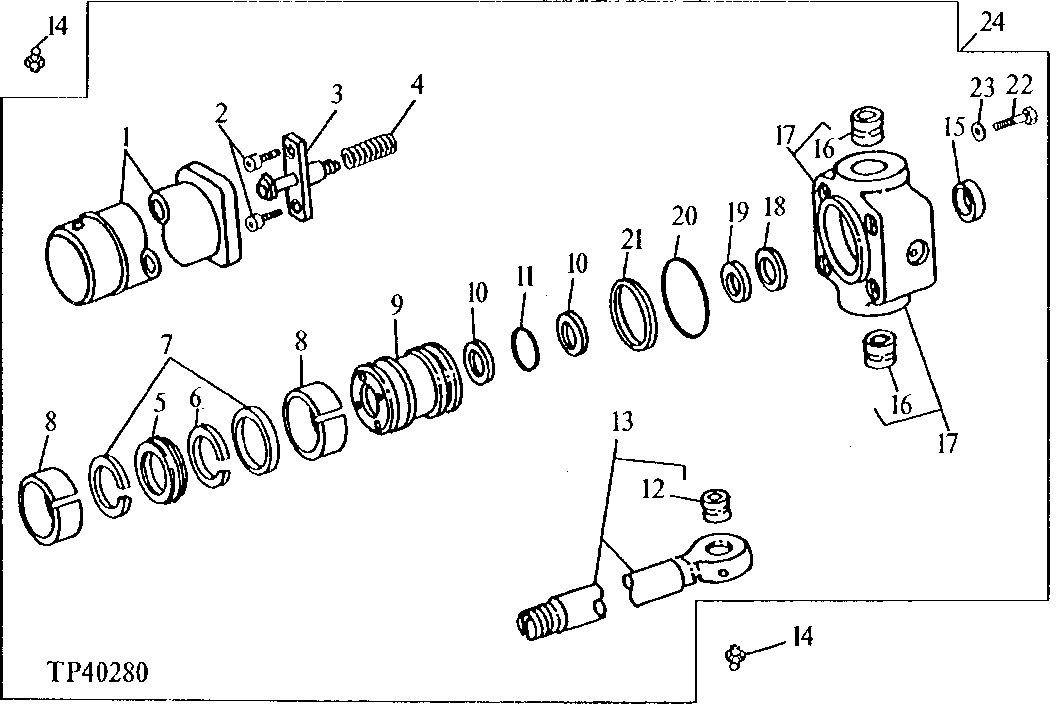

BACKHOE SWING CYLINDER (SEE REPLACEMENT BACKHOE SWING CYLINDER) [04E14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE11289	1	HYDRAULIC CYLINDER BARREL	-
2	T14581	2	CAP SCREW	(SUB 19H3111, THIS APPLICATION)
2	19H3111	2	Screw	3/8" X 1.380"
3	AR103619	1	POPPET	(SUB RE15650)
3	RE15650	1	POPPET	-
4	R72390	1	SPRING	-
5	-	1	Part 7	(SUB RE11905)
6	-	1	Part 8	(SUB RE11905)
7	RE11905	1	SEAL	(BK)
8	U17225	2	WEAR RING	(BK)
9	R77811	1	PISTON	(SUB R79663 AND (2) 19H3111)
9	R79663	1	PISTON	-
10	R79103	2	Back-Up Ring	(SUB FOR H30463)
11	R26863	1	O-Ring	-
12	R81490	1	BUSHING	(SUB FOR R77782) (USE WITH T68986)
13	RE37208	1	HYDRAULIC CYLINDER ROD	(USE WITH T68986) (SUB FOR RE15500 AND RE11288)
14	T162396	2	Lubrication Fitting	(SUB FOR JD7759, THIS APPLICATION) (SUB FOR JD7798) 1/8"
15	U46604	1	SEAL	(RK)
16	R81489	2	BUSHING	(SUB FOR R72843)
17	RE11291	1	GUIDE	(SUB RE15651)
17	RE15651	1	GUIDE	-
18	U41822	1	WEAR RING	(RK)
19	H145135	1	SEAL	(RK) (SUB FOR T52187)
20	R77857	1	Ring	(RK)
21	R79195	1	BACK-UP RING	(RK) (SUB FOR R77856)
22	19H1988	4	Cap Screw	(SUB FOR 19H3272) HS, SAE 8, 3/4" X 5-3/4" (SUB 19H3210, THIS APPLICATION)
22	19H3210	4	Cap Screw	3/4" X 5-1/4"
23	B3627R	4	WASHER	-
24	AR104407	2	HYDRAULIC CYLINDER	(SUB RE15649)
24	RE15499	2	HYDRAULIC CYLINDER	(SUB RE15649)
24	AH139415	2	HYDRAULIC CYLINDER	(SUB FOR RE15649)

BACKHOE SWING CYLINDER (SEE REPLACEMENT BACKHOE SWING CYLINDER) [04E14]
