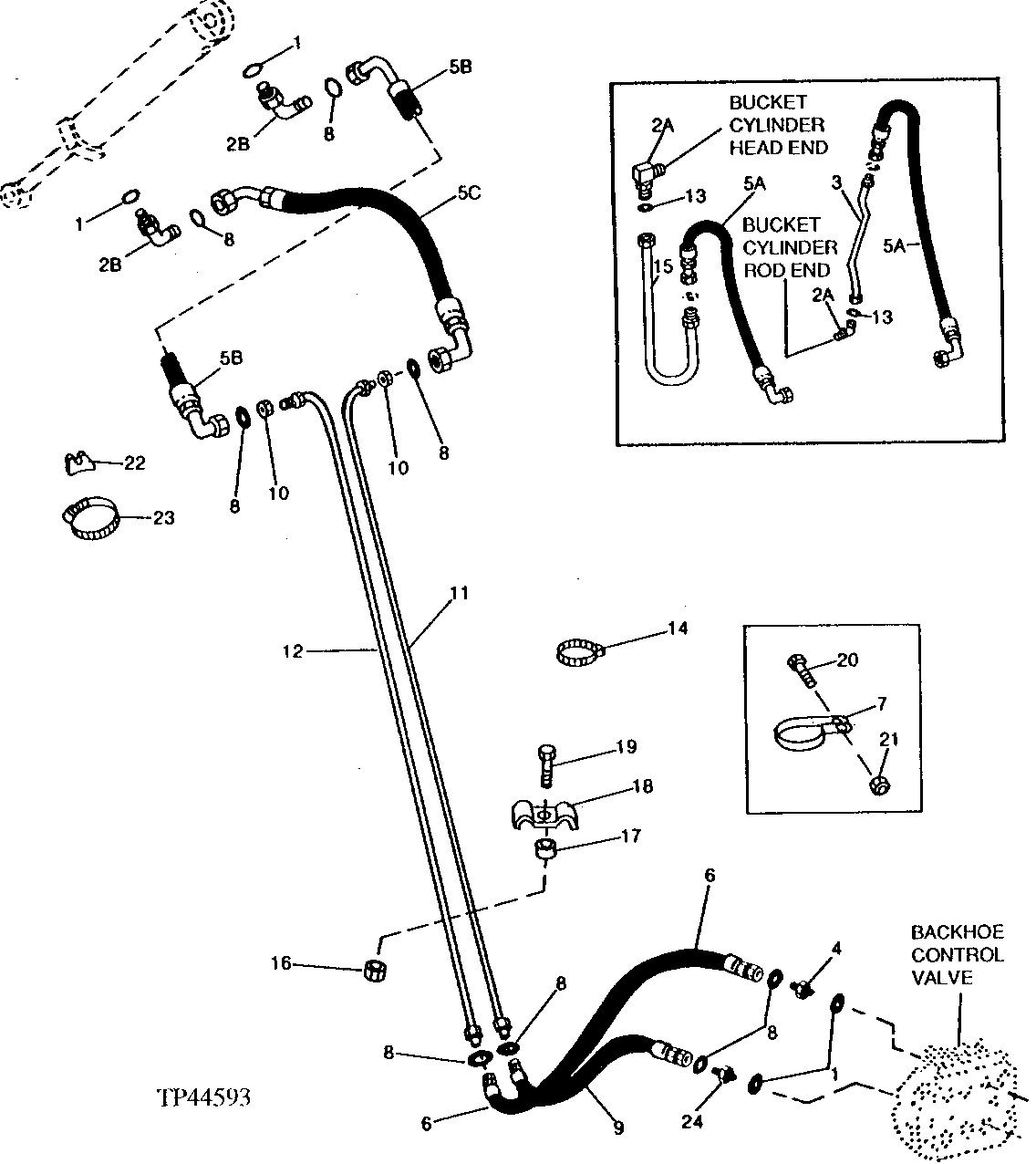

BACKHOE EXTENDIBLE DIPPERSTICK BUCKET CYLINDER HYDRAULICS (SERIAL NO. 720428- ) [04H13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R29936	2	O-Ring	(CONTROL VALVE PORTS)
1	U12547	2	O-Ring	(CYLINDER HEAD AND ROD END)
1	R29936	4	O-Ring	-
3	AT84198	1	OIL LINE	-
4	08H1194	1	CAP SCREW	-
6	AT133158	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 620 MM (63-3/4") X 1-3/16", (SUB FOR AT84184 AND AT84185)
7	T48478	2	CLAMP	-
8	T77858	8	O-Ring	-
9	AT133158	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 620 MM (63-3/4") X 1-3/16", (SUB FOR AT84185)
10	T78707	2	Nut	-
11	AT84193	1	OIL LINE	R.H.
11	AT142023	1	OIL LINE	R.H. (SUB FOR AT84193, THIS APPLICATION)
12	AT84192	1	OIL LINE	L.H.
12	AT142022	1	Oil Line	L.H. (SUB FOR AT84192, THIS APPLICATION)
13	T76938	2	O-Ring	-
14	AC15595	1	Clamp	-
15	AT84201	1	OIL LINE	-
16	14M7337	1	Lock Nut	M10
17	28H1522	1	Spacer	-
18	T40705	1	Clamp	-
19	19M7658	1	Cap Screw	M10 X 50
20	19M8162	2	Screw	M10 X 40
21	14M7167	2	Lock Nut	M10, LOCKING
22	T102005	1	Guide	-
23	AC15595	1	Clamp	-
24	T129915	1	ADAPTER FITTING	-
2A	38H1037	2	Elbow Fitting	-
2A	38H1305	2	Elbow Fitting	-
2B	38H1007	2	Elbow Fitting	-
5A	AT84196	2	HYDRAULIC HOSE - FABRICATE	1-3/16" X 2 715 MM (107") X 1-3/16"
5B	AT134846	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 2 636 MM (103-3/4") X 1-3/16"
5C	AT134847	1	Hydraulic Hose	1-3/16" X 3 642 MM (143-1/2") X 1-3/16"

BACKHOE EXTENDIBLE DIPPERSTICK BUCKET CYLINDER HYDRAULICS (SERIAL NO. 720428- ) [04H13]
