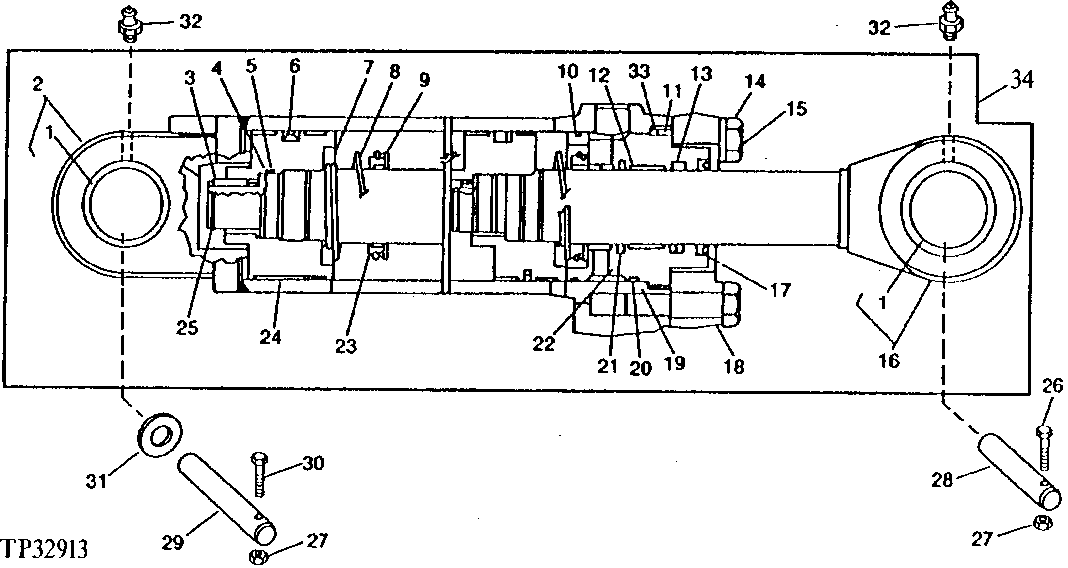

BACKHOE CROWD CYLINDER (710C) [04F05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R98722	2	BUSHING	-
2	RE37077	1	HYDRAULIC CYLINDER BARREL	-
3	R83215	1	Shaft Key	-
4	R98696	2	BACK-UP RING	(RK)
5	F1649R	1	O-Ring	(RK)
6	RE25102	1	Seal	(BK)
7	R98375	1	PISTON	-
8	H139506	1	COMPRESSION SPRING	-
9	H139508	1	VALVE SEAT INSERT	-
10	H139510	1	RING	-
11	H142154	1	Sealing Washer	(BK)
12	R97795	1	WEAR RING	(RK)
13	RE36534	1	BACK-UP RING	(RK)
14	R89575	1	Hydr. Cylinder Rod Guide	-
15	19M7989	4	Cap Screw	M24 X 90
16	RE37076	1	HYDRAULIC CYLINDER ROD	-
17	RE36519	1	SEAL	(RK)
18	R90522	4	Washer	-
19	R78818	1	Back-Up Ring	(BK)
20	T38485	1	O-Ring	(BK)
21	RE30967	1	BACK-UP RING	(RK)
22	H142176	1	HYDR. CYLINDER ROD GUIDE	(SUB FOR H139509) (ALSO ORDER H142154 AND H141647)
23	H139507	1	Back-Up Ring	-
24	R85192	2	Wear Ring	(BK)
25	R90646	1	Snap Ring	-
26	19M7914	1	Cap Screw	M12 X 120
27	14M7319	2	Lock Nut	M12
28	T125951	1	PIN FASTENER	(SUB FOR T118607)
29	T125950	1	PIN FASTENER	(SUB FOR T69052)
30	19M7758	1	Cap Screw	M12 X 130
31	T126037	1	WASHER	(SUB FOR T60375, THIS APPLICATION)
32	T162396	2	Lubrication Fitting	(SUB FOR JD7798)
33	H141647	1	Spacer	-
34	-	1	Part 34	( AH136539 NO LONGER AVAILABLE) (SUB FOR RE36909) (SUB AH142926)
