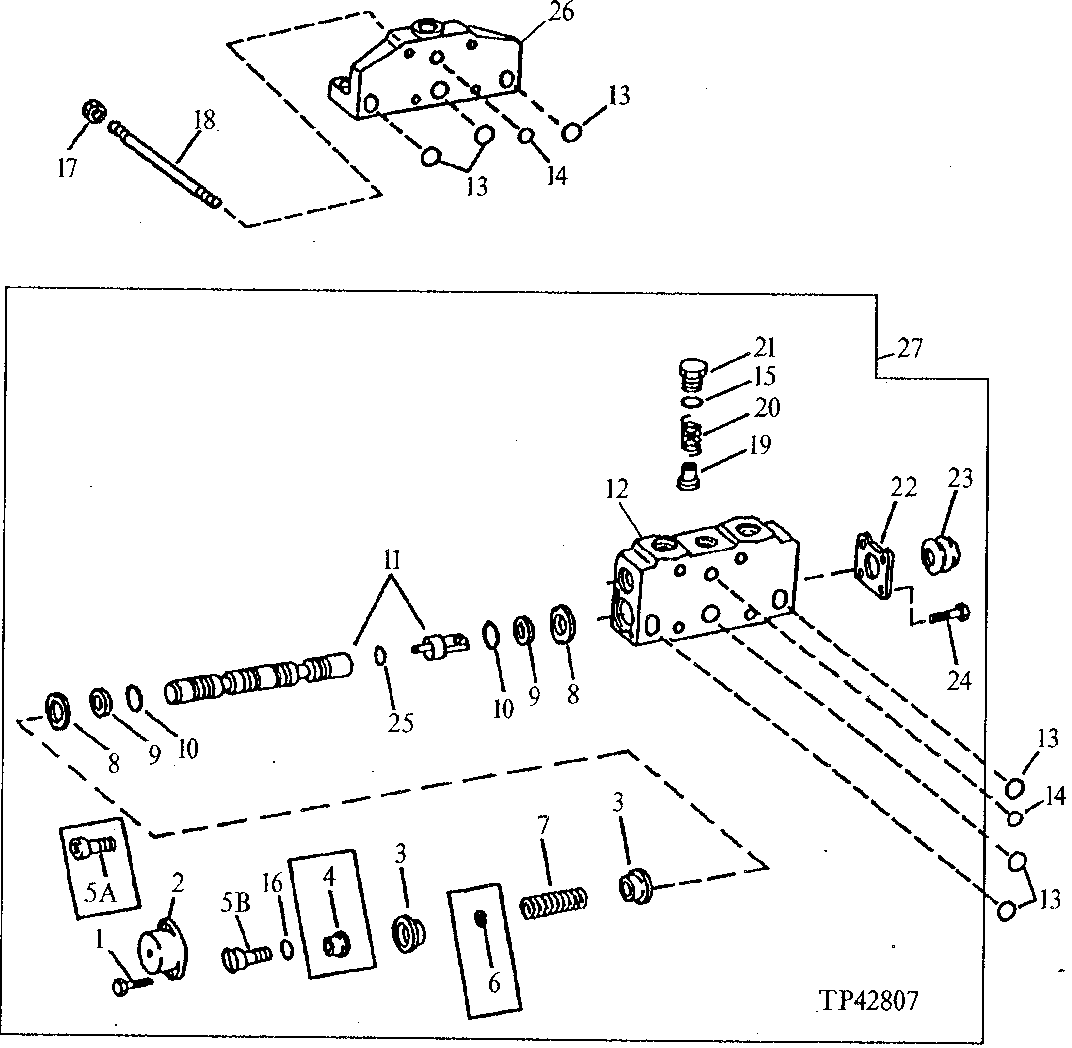

BACKHOE CONTROL VALVE CROWD SECTION WITH END PLATE (GRESEN) (SERIAL NO. -772054) [04D07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T106306	2	Screw	-
1	T35975	2	SCREW	-
2	T76006	1	FILLER CAP	-
2	AT157935	1	CAP	(SUB FOR T106586 AND AT117658)
3	T76007	2	ROUND RETAINER	-
4	T76009	1	BUSHING	(SUB T78362 AND R26286)
6	T76011	1	LOCK WASHER	(SUB T78362 AND R26286)
7	T143666	1	SPRING	(SUB FOR T76008)
8	T143344	2	RETAINER	(SUB FOR T76013)
9	T76018	2	BACK-UP RING	-
10	R29463	2	O-Ring	-
10	T122035	2	O-RING	(SUB FOR T106583)
11	-	1	Part 15	(SUB AT141655)
12	-	1	Part 16	(SUB AT141655)
13	H35244	6	Ring	-
13	-	6	Part 18	(SUB AT159878) (SUB FOR T106581)
14	-	2	Part 20	(SUB AT159878) (SUB FOR T106582)
14	H63858	2	O-Ring	-
15	R29936	1	O-Ring	-
16	R26286	1	O-Ring	-
17	14H1040	4	Nut	1/2"
18	T76016	4	SCREW	(SUB T106587)
18	T106587	4	ROD	-
19	T76005	1	POPPET	-
20	U17406	1	SPRING	-
21	T76004	1	FITTING	-
22	T76015	1	RETAINER	-
23	T76014	1	BOOT	(SUB T113360)
23	T106584	1	BOOT	(SUB T113360)
23	T113360	1	BOOT	-
24	T104773	2	Cap Screw	(SUB FOR T75973)
25	R26286	1	O-Ring	-
26	T77829	1	COVER	RIGHT
27	AT141655	1	VALVE	CROWD SECTION, (INCLUDES AT141657 AND AT141656) (SUB FOR AT74149, AT78511 AND AT107723)
5A	T76010	1	CAP SCREW	(SUB T78362 AND R26286)
5B	T78362	1	PLUG	-

BACKHOE CONTROL VALVE CROWD SECTION WITH END PLATE (GRESEN) (SERIAL NO. -772054) [04D07]
