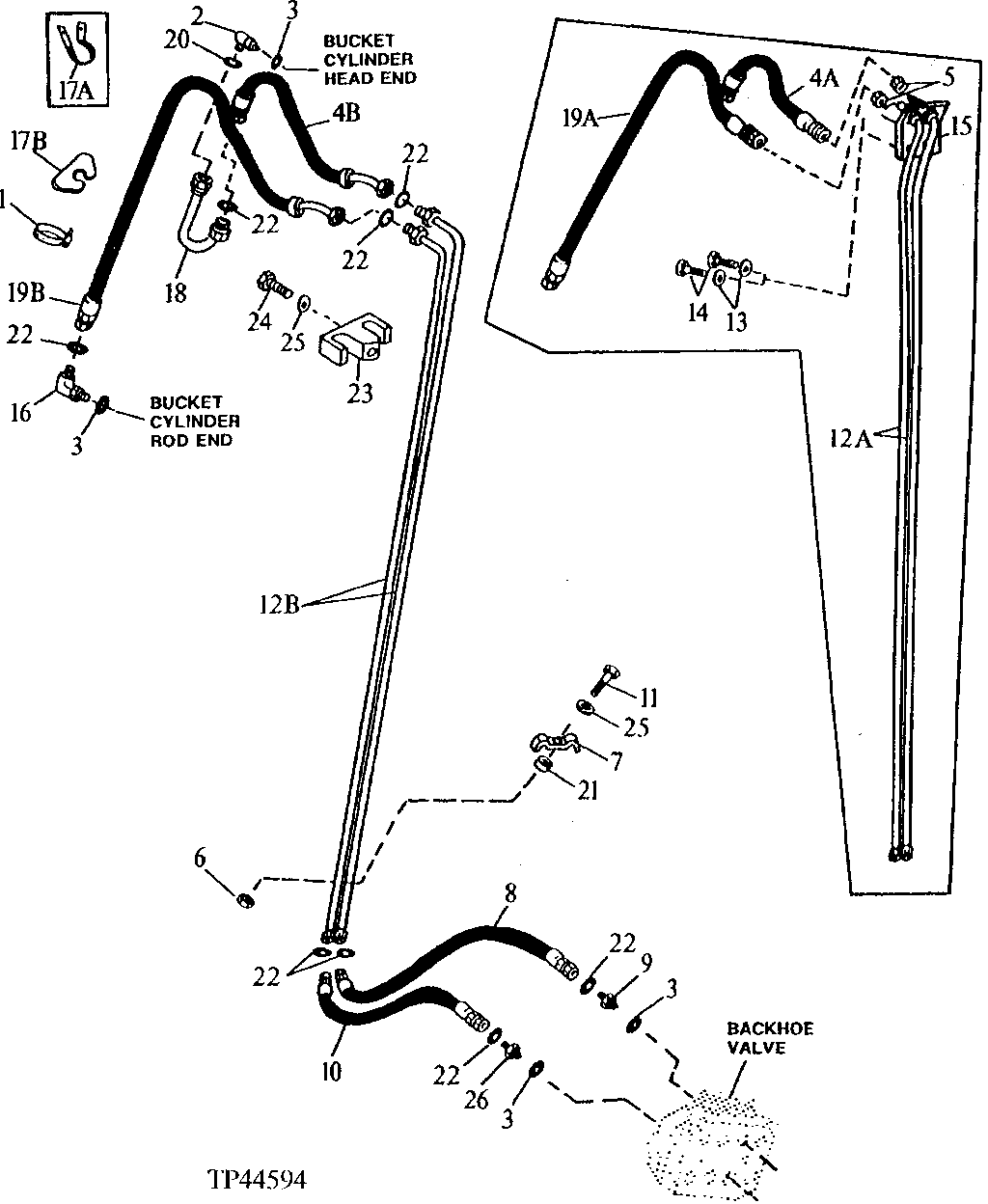

BACKHOE BUCKET CYLINDER HYDRAULICS (SERIAL NO. 720428- ) [04H09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR85327	1	Clamp	(SUB FOR AT63292)
1	AC15595	1	Clamp	(SUB FOR AT63292, THIS APPLICATION)
1	AC15595	1	Clamp	-
2	38H1037	1	Elbow Fitting	-
2	38H1305	1	Elbow Fitting	-
3	R29936	4	O-Ring	-
3	R29936	2	O-Ring	(BACKHOE VALVE PORTS)
3	U12547	2	O-Ring	(BUCKET CYLINDER HEAD AND ROD END PORTS)
5	T78707	2	Nut	-
6	14M7337	1	Lock Nut	M10
7	T40705	1	Clamp	-
8	AT133158	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 620 MM (63-3/4") X 1-3/16", (SUB FOR AT84184 AND AT84185)
9	38H1194	1	Adapter Fitting	-
10	AT133158	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 620 MM (63-3/4") X 1-3/16", (SUB FOR AT84185)
11	19M7658	1	Cap Screw	M10 X 50, FLANGE HEAD
13	24M7241	2	Washer	17 X 34 X 4 MM
14	19M7409	2	Cap Screw	M16 X 50
15	AT75907	1	BRACKET	-
16	38H1052	1	Elbow Fitting	-
16	38H1007	1	Elbow Fitting	-
18	AT84181	1	Oil Line	-
20	T76938	1	O-Ring	-
21	28H1697	1	Spacer	-
22	T77858	8	O-Ring	-
23	T52978	1	Clamp	-
24	19M7658	1	Cap Screw	M10 X 50
25	24M7239	2	Washer	10.700 X 21 X 2.500 MM
26	T129915	1	ADAPTER FITTING	-
4A	AT79822	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 940 MM (37") X 1-3/16", (SUB FOR AT83474 AND AT113907)
4B	AT114589	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 945 MM (37-1/4") X 1-3/16"
12A	AT84180	2	OIL LINE	L.H AND R.H.
12B	AT142021	1	OIL LINE	L.H.
12B	AT142020	1	Oil Line	R.H.
12B	AT114346	2	OIL LINE	L.H. AND R.H. (SUB AT142020 AND AT142021, THIS APPLICATION)
12B	AT114346	2	OIL LINE	L.H. AND R.H.
17A	T43361	1	Clip	-
17B	T102005	1	Guide	-
19A	AT113860	1	Hydraulic Hose	1-3/16" X 1 775 MM (70") X 1-3/16", (SUB FOR AT84189)
19B	AT114590	1	Hydraulic Hose	1-3/16" X 1 800 MM (70-3/4") X 1-3/16"

BACKHOE BUCKET CYLINDER HYDRAULICS (SERIAL NO. 720428- ) [04H09]
