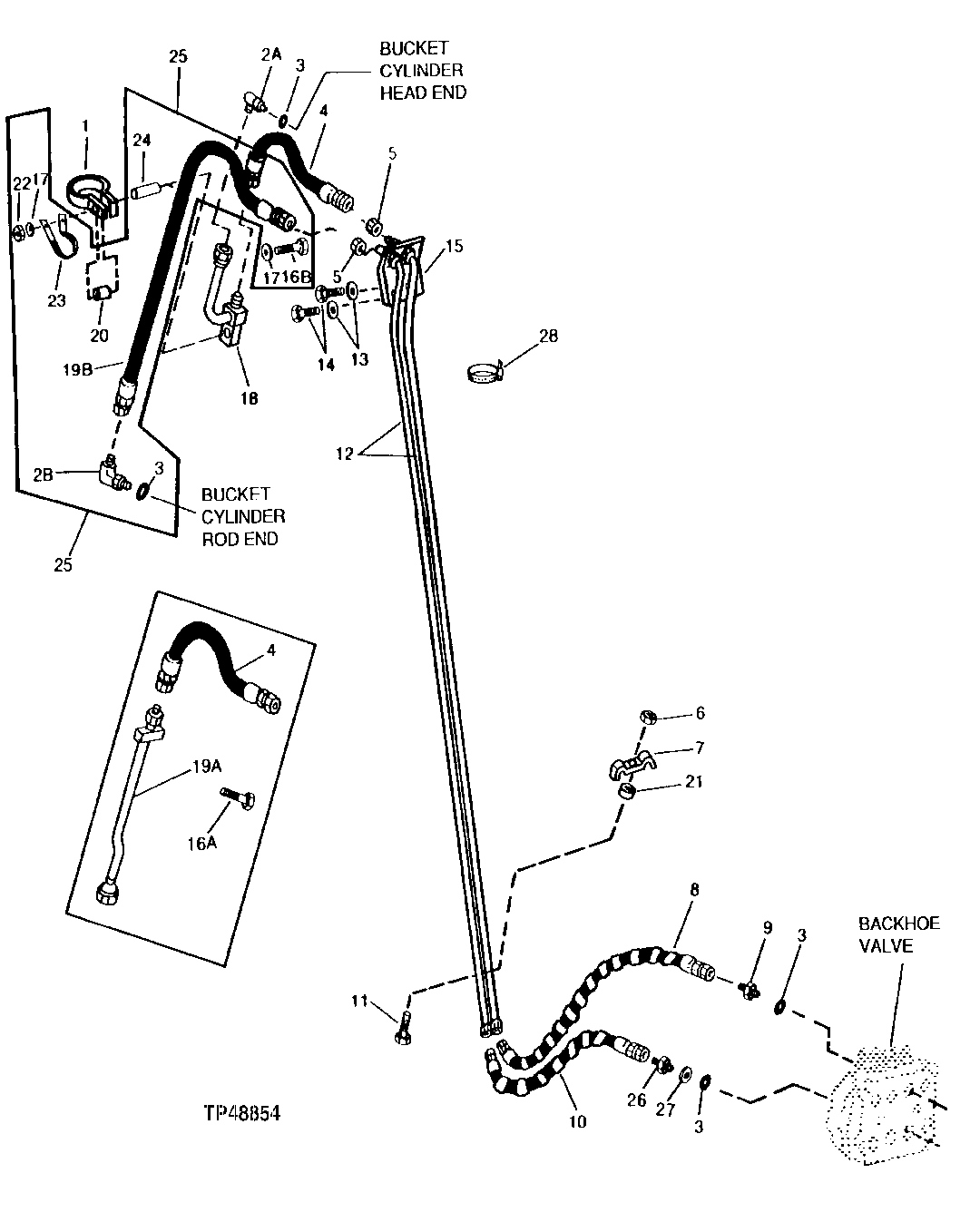

BACKHOE BUCKET CYLINDER HYDRAULICS (710B) (SERIAL NO. -720427) [04H07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T75811	1	CLAMP	-
3	R29936	4	O-Ring	-
4	AT65537	2	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 020 MM (40-1/4") X 1-3/16"
4	AT65537	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 020 MM (40-1/4") X 1-3/16"
5	R42345	2	Nut	-
6	14M7337	1	Lock Nut	M10
7	T40705	1	Clamp	-
8	AT77855	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 700 MM (67") X 1-3/16", (SUB FOR AT74207) (SUB FOR AT74207)
8	AT76169	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 725 MM (68") X 1-3/16"
9	T30933	1	ADAPTER FITTING	(SUB FOR T30933)
10	AT77857	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 620 MM (63-3/4") X 1-3/16", (SUB FOR AT74209)
10	AT76170	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 620 MM (63-3/4") X 1-3/16"
11	19M8600	1	Cap Screw	M10 X 50
12	AT65534	2	LINE	-
13	24M7241	2	Washer	17 X 34 X 4 MM
14	19M7409	2	Cap Screw	M16 X 50
15	AT75907	1	BRACKET	(SUB FOR AT68678)
17	T21242	2	Washer	-
18	AT65539	1	OIL LINE	-
20	28H2490	1	Bushing	-
21	28H1697	1	Spacer	3/8" X 3/4"
22	14M7319	1	Lock Nut	M12
23	T43361	1	Clip	-
24	28H2675	1	Bushing	-
25	AT82527	1	KIT	HYDRAULIC TUBE SERVICE KIT
26	T149403	1	ADAPTER FITTING	-
27	24H1746	1	Washer	-
2A	X16C5OX-S	1	Elbow Fitting	(SUB FOR X2503-16-16, AU42832) 90°
2A	X16C5OX-S	2	Elbow Fitting	(SUB FOR X2503-16-16, AU42832) 90°
2B	AT61289	1	FITTING	90°
16A	19M7493	1	Cap Screw	M12 X 40
16B	19M7716	1	Cap Screw	-
19A	AT68579	1	TUBE	(SUB AT82527)
19B	AT79352	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 800 MM (70-3/4") X 1-3/16"

BACKHOE BUCKET CYLINDER HYDRAULICS (710B) (SERIAL NO. -720427) [04H07]
