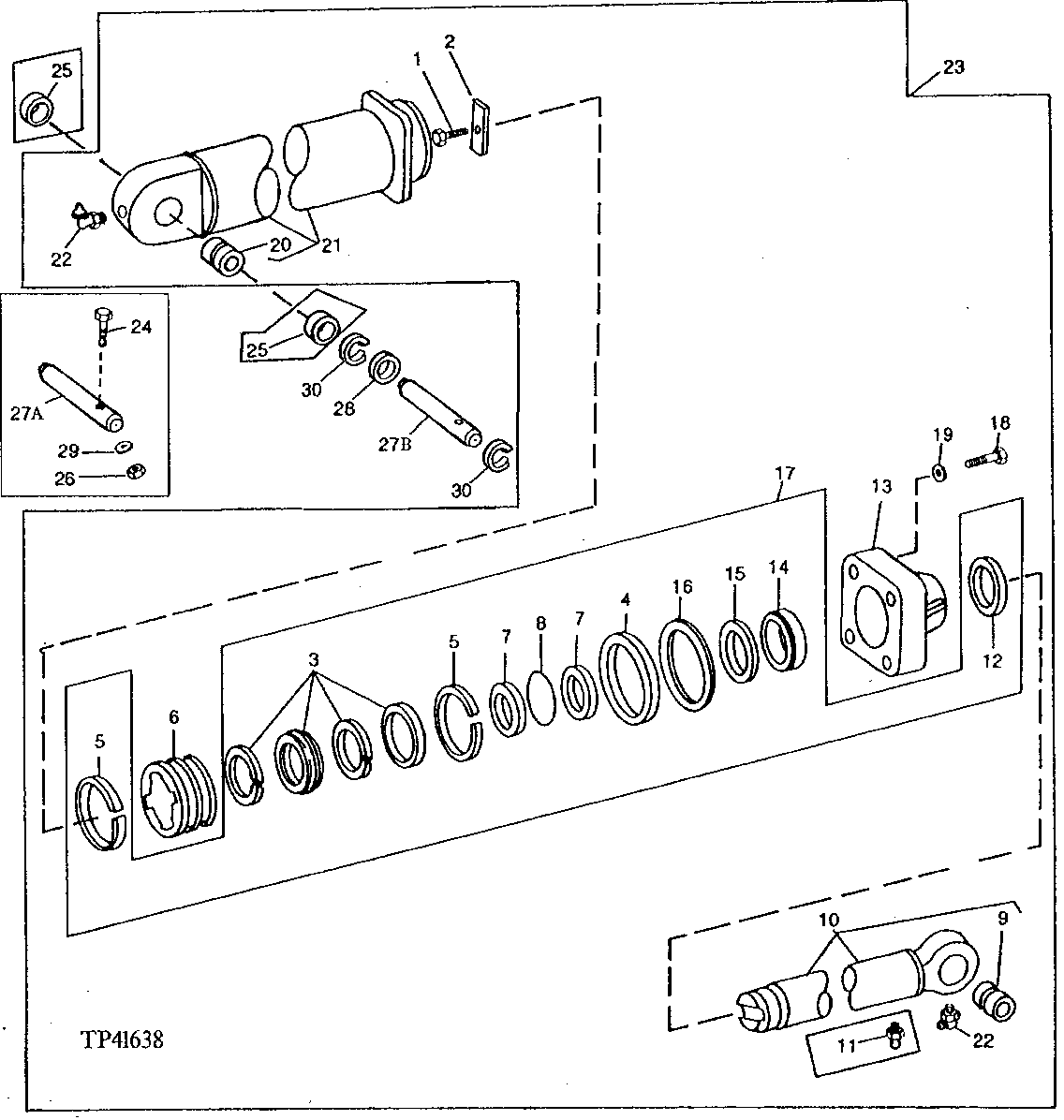

BACKHOE BUCKET CYLINDER (710B) [04F17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R70772	1	CAP SCREW	-
2	R72063	1	STRAP	-
3	RE11904	1	SEAL	(BK)
4	R79125	1	BACK-UP RING	(BK) (SUB FOR R76232)
5	R77825	2	WEAR RING	(BK)
6	R77832	1	PISTON	-
7	R79170	2	BACK-UP RING	(RK) (SUB FOR R75354)
8	F3450R	1	O-Ring	(RK)
9	U43784	1	BUSHING	-
10	AR101686	1	HYDRAULIC CYLINDER ROD	-
11	JD7759	1	Lubrication Fitting	1/8", (SUB JD7781, THIS APPLICATION)
12	U45230	1	SEAL	(RK)
13	R72060	1	GUIDE	-
14	U44577	1	WEAR RING	(RK)
15	R76774	1	SEAL	(RK)
16	R63308	1	O-Ring	(BK)
17	AR105276	1	KIT	(SUB RE14567 AND RE14516)
18	19H1735	4	Cap Screw	3/4" X 3-1/2"
19	T10510	4	Washer	(SUB FOR 24M7353)
20	R72058	1	BUSHING	-
21	AR101684	1	HYDRAULIC CYLINDER BARREL	-
22	JD7781	2	Lubrication Fitting	1/8"
23	-	1	Part 23	(WHEN AR105296 IS NO LONGER AVAILABLE, ORDER COMPONENT PARTS FOR SERVICE)
24	19M7908	1	Cap Screw	M12 X 110, (USE WITH T125953)
25	T67615	2	Seal	-
26	14M7319	1	Lock Nut	M12, (USE WITH T125953)
28	24H1679	1	Washer	2-17/64" X 3-1/4" X 0.060", (SUB FOR 22694)
29	28H1721	1	WASHER	0.546" X 0.840" X 15/64", (USE WITH T125953)
30	40M7066	2	Snap Ring	(USE WITH T142472)
27A	T125953	1	PIN FASTENER	(SUB FOR T70145) (SUB T142472 AND (2) 40M7066)
27B	T142472	1	PIN FASTENER	(SUB FOR T125953)
