Открытый узел

TRACK FRAME [01G18]

TRACK FRAME [01G18]

TRACK FRAME [01G18]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

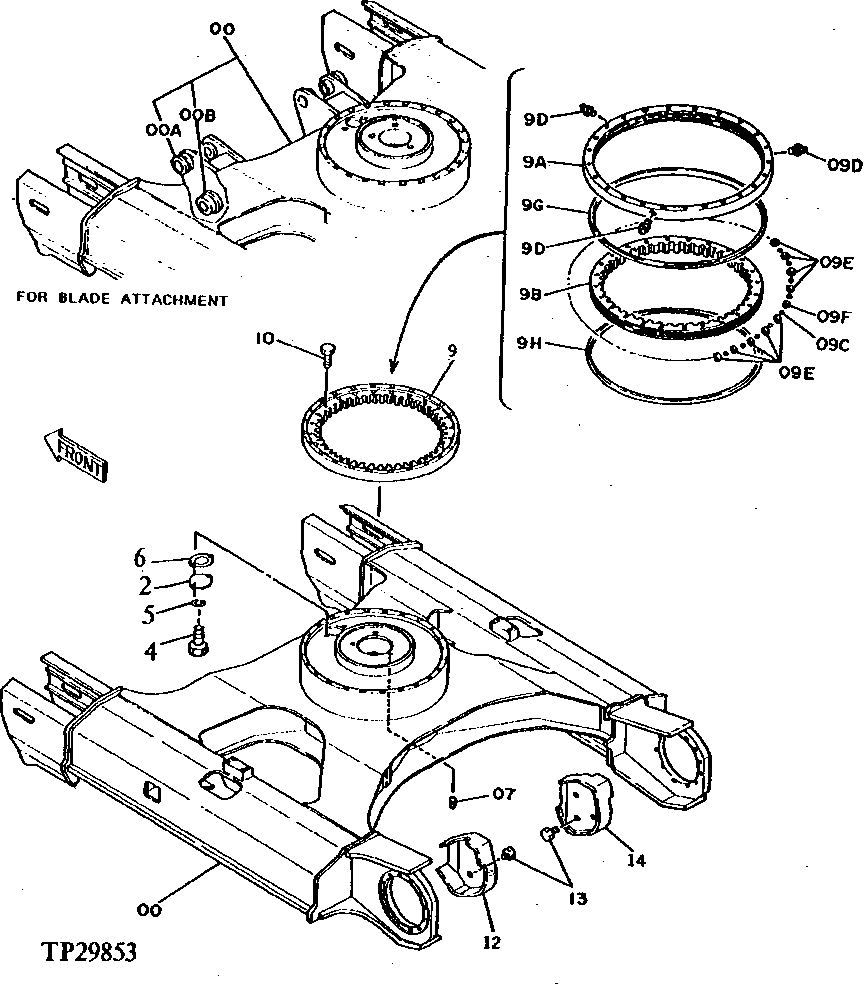

TRACK FRAME [01G18]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	-	1	Part 2	FOR BLADE ATTACHMENT ( TH110787 CONVENIENCE ASSEMBLY NO LONGER AVAILABLE)
0	-	1	Part 1	FOR STANDARD ( TH110788 CONVENIENCE ASSEMBLY NO LONGER AVAILABLE)
2	4128863	1	Plate	(SUB FOR TH102264)
4	19M8324	2	Cap Screw	M10 X 16
5	12M7066	2	Lock Washer	10 MM
6	4272297	1	Gasket	(SUB FOR 4211149 AND TH110612)
7	94-2024	1	Fitting Plug	(SUB FOR TH101292)
9	-	1	Part 10	(A) (ASSY) (INCLUDES KEYS 9 THROUGH 9H) ( TH110519 NLA)
9	-	1	Part 11	(A) REMAN (ASSY) (INCLUDES KEYS 9 THROUGH 9H) ( AT190764 OR 4193433EX NLA)
10	19M8485	24	Cap Screw	M16 X 90
12	7019691	1	Cover	(SUB FOR TH110926, THIS APPLICATION) (SUB FOR TH111671) (LEFT)
13	19M8231	6	Cap Screw	M12 X 16, (SUB FOR TH100522)
14	7019690	1	COVER	(RIGHT) (SUB FOR TH110926, THIS APPLICATION) (SUB FOR TH111672)
0A	4081613	2	SPACER	(SUB FOR TH105957) FOR BLADE ATTACHMENT
0B	4081614	2	SPACER	(SUB FOR TH105958) FOR BLADE ATTACHMENT
9A	-	1	Part 12	(OUTER) (SUB AT190764)
9B	-	1	Part 13	(INNER) (SUB AT190764)
9C	4138028	1	BALL	(SUB FOR TH110757) (SUB FOR TH106031) (1=66 PIECES) (DISCARD EXTRA BALLS)
9D	JD7769	3	Lubrication Fitting	(SUB FOR TH100364)
9E	4218312	42	Support	(SUB FOR TH110758) (16MM LONG ON OUTSIDE DIAMETER)
9F	4218313	24	SUPPORT	(SUB FOR TH110759) (19MM LONG ON OUTSIDE DIAMETER)
9G	T203958	1	Seal	(A) (SUB FOR T191211) (SUB FOR TH108166 OR AT131732, THIS APPLICATION) (ALSO ORDER TY21517 AND AT66866) (SUB FOR AT131484 OR AT128483 OR AT131732, 4199645) (SUB FOR 4199645) (SUB FOR AT131732)
9G	TY21517	1	Adhesive	(NOT ILLUSTRATED)
9G	AT66866	1	Fluid	(NOT ILLUSTRATED)
9H	T203958	1	Seal	(A) (SUB FOR T191211) (SUB FOR TH108166 OR AT131732, THIS APPLICATION) (ALSO ORDER TY21517 AND AT66866) (SUB FOR AT131484 OR AT128483 OR AT131732) (SUB FOR 4199645)
9H	TY21517	1	Adhesive	(NOT ILLUSTRATED)
9H	AT66866	1	Fluid	(NOT ILLUSTRATED)
