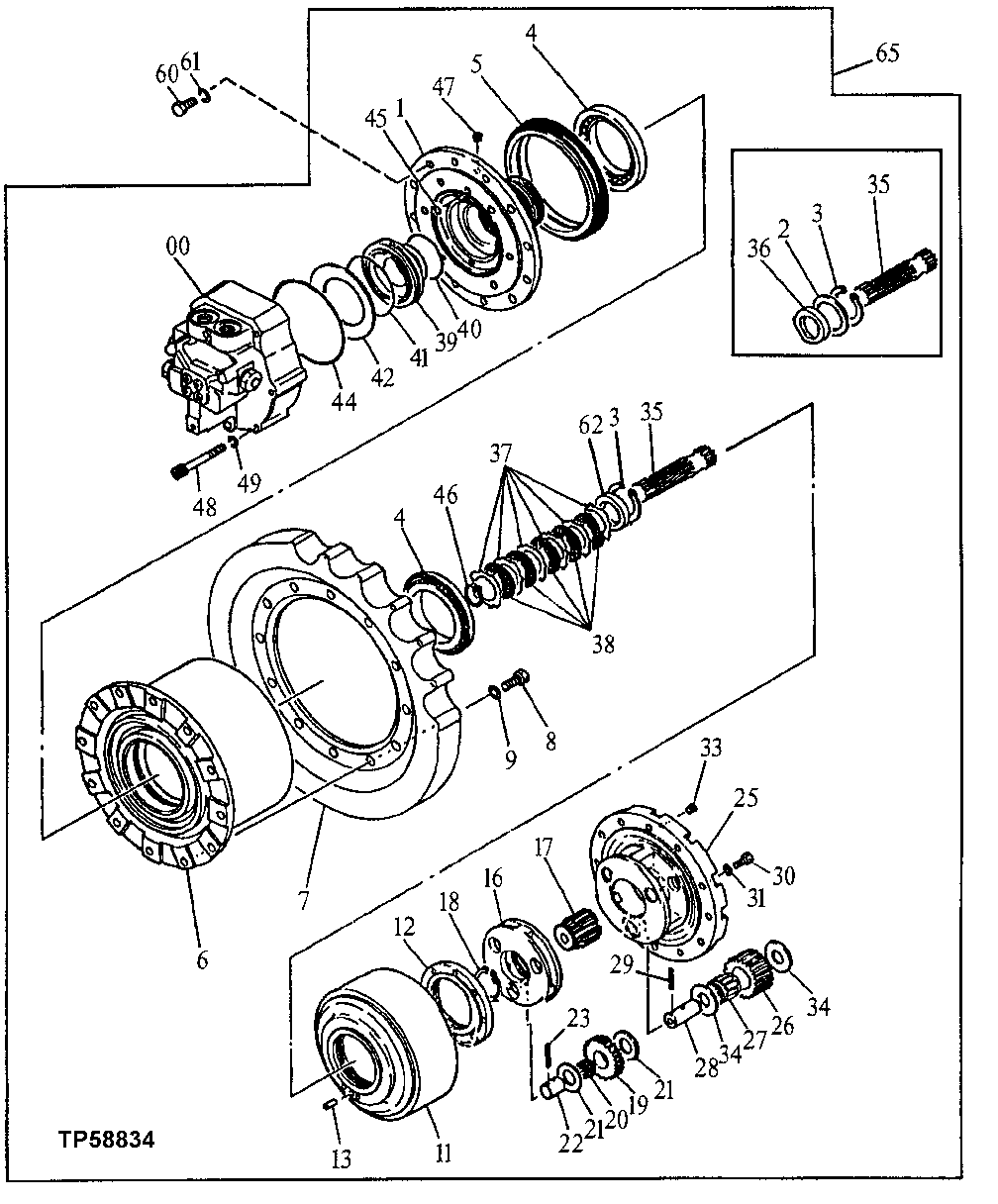

PROPEL MOTOR, BRAKE AND PLANETARY DRIVE [01B08]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	-	1	Part 2	( AT167084 OR 9133147 NLA)
0	-	1	Part 1	(SUB AT167084) ( TH110970 OR AT131486 NLA)
1	1011457	1	HOUSING	(SUB FOR TH110364)
2	-	1	Part 4	(SUB AT130923) ( TH106667 NO LONGER AVAILABLE)
3	40M5099	1	Snap Ring	(SUB FOR TH106303)
4	4148014	2	CYLINDRICAL ROLLER BEARING	(SUB FOR TH110465) MUST REPLACE BOTH INNER AND OUTER RACE - DO NOT MIX VENDORS
5	4092483	1	SEALING TRIM	(SUB FOR TH105969)
6	1011458	1	DRUM	(SUB FOR TH110365)
7	1010447	1	CHAIN SPROCKET	(SUB FOR TH110360)
8	19M7488	12	Cap Screw	M16 X 40
8	19M8035	12	Cap Screw	M16 X 35
9	12H294	12	Lock Washer	5/8"
11	2023132	1	RING GEAR	(SUB FOR TH110375)
12	3027147	1	NUT	(SUB FOR TH110395)
13	4148012	1	Dowel Pin	(SUB FOR TH110463)
16	2023175	1	PLANET PINION CARRIER	(SUB FOR TH110377)
17	3027146	1	SUN GEAR	(SUB FOR TH110394)
18	40M7047	1	Snap Ring	(SUB FOR TH108871)
19	3027148	3	GEAR	(SUB FOR TH110396)
20	4177007	3	NEEDLE BEARING	(SUB FOR TH108846)
21	4192910	6	Plate	(SUB FOR TH108847)
22	4178202	3	BUSHING	(SUB FOR TH108848)
23	4173093	3	Spring Pin	(SUB FOR TH108841)
23	34M7181	3	Spring Pin	4 X 45 MM (0.157" X 1.772")
25	1010450	1	PLANET PINION CARRIER	(SUB FOR TH110361)
26	3027149	3	GEAR	(SUB FOR TH110397)
27	4148013	3	NEEDLE BEARING	(SUB FOR TH110464)
28	4148016	3	PIN FASTENER	(SUB FOR TH110466)
29	34M5723	3	Spring Pin	5 X 55 MM, (SUB FOR TH110460) (SUB FOR 34M7037)
30	19M8169	12	Screw	M12 X 30, (SUB FOR TH105691)
30	19M8011	12	Cap Screw	M12 X 30
31	12H301	12	Lock Washer	1/2"
31	12M7058	12	Lock Washer	12 MM (0.472") (SUB FOR 12M7067)
33	94-2013	2	Fitting Plug	(SUB FOR AT128487) (SUB FOR TH100648)
34	4148080	6	Plate	(SUB FOR TH110467)
35	2017872	1	SHAFT	(SUB FOR TH110372)
36	-	1	Part 37	(SUB AT130923) ( TH106672 NO LONGER AVAILABLE)
37	3070675	6	PLATE	(SUB FOR 3036156 ALONG WITH 3070674)
37	3070675	6	PLATE	(SUB FOR AT171193)
38	3070674	5	PLATE	(SUB FOR 3036157 ALONG WITH 3070675)
38	3070674	5	PLATE	(SUB FOR AT171194)
39	3036158	1	PISTON	(SUB FOR TH110405)
40	4092712	1	RING	(SUB FOR TH105972)
41	4092713	1	RING	(SUB FOR TH105973)
42	3017067	1	Washer	(SUB FOR TH105888)
44	4154877	1	O-Ring	(SUB FOR TH110468)
45	M800650	1	Packing	-
46	40M7062	1	Snap Ring	(SUB FOR TH106273)
47	94-2010	1	Fitting Plug	(SUB FOR TH100689)
48	M341495	6	Bolt	(SUB FOR 4192042) (SUB FOR TH110499)
49	12H317	6	Lock Washer	9/16"
60	19M7409	24	Cap Screw	M16 X 50
61	12H294	24	Lock Washer	5/8"
62	4223129	1	SPACER	(SUB FOR AT130923)
65	-	1	Part 55	( TH110966 NO LONGER AVAILABLE)
