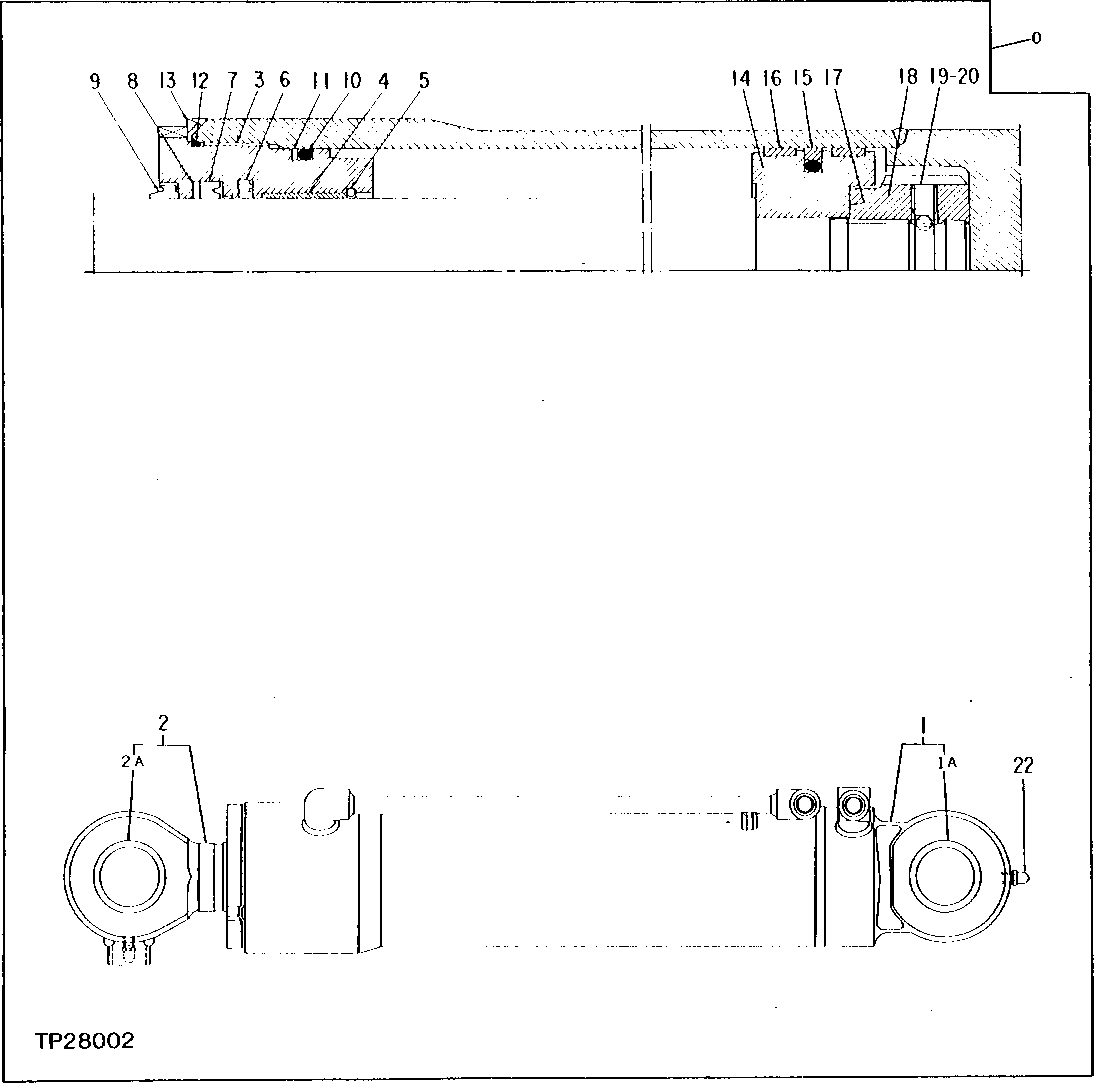

OFFSET CYLINDER (WITH OFFSET BOOM) [02F09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4215547	1	HYDRAULIC CYLINDER	(SUB FOR TH110644)
1	4249616	1	HYDRAULIC CYLINDER BARREL	(SUB FOR TH110348) (SUB FOR TH112082)
2	4249617	1	ROD	(SUB FOR TH110349) (SUB FOR TH112083)
3	0257803	1	CYLINDER HEAD	(SUB FOR TH106865)
4	988670	1	BUSHING	60 X 65 X 40 MM (2.362" X 2.559" X 1.575") (SUB FOR TH106301)
5	0225704	1	Snap Ring	(SUB FOR TH105772)
6	AT264380	1	Ring	(K) (SUB FOR TH105780)
7	AT264378	1	Ring	(K) (SUB FOR TH105778)
8	AT264379	1	Back-Up Ring	(K) (SUB FOR TH105779)
9	AT264377	1	Ring	(K) (SUB FOR TH105777)
10	TH100156	1	O-Ring	(K) 99.600 X 5.700 MM (3.921" X 0.224") (SUB FOR TH106869)
11	4513525	1	BACK-UP RING	(K) (SUB FOR TH106870)
12	AT264320	1	O-Ring	(K) 109.400 X 3.100 MM (4.307" X 0.122") (SUB FOR TH106871, T110448)
13	0174517	1	LOCK WASHER	(K) 117 X 135 X 1.600 MM (4.606" X 5.315" X 0.063") (SUB FOR TH106866)
14	0334803	1	PISTON	(SUB FOR TH110350)
15	AT264386	1	Ring	(K) (SUB FOR TH106872, 0240915)
16	0654711	2	RING	(SUB FOR TH106873, 0240916)
17	TH110253	1	Shim	0.300 MM (0.012") (SUB FOR 0326007)
18	0326006	1	NUT	(SUB FOR TH110252)
19	22M7139	1	Set Screw	M10 X 10, (SUB FOR TH109380)
20	400R	1	Ball	6.350 MM (1/4") (SUB FOR TH109381)
22	JD7781	2	Lubrication Fitting	(SUB FOR TH105707)
1A	4265483	1	BUSHING	55 X 65 X 55 MM (2.165" X 2.559" X 2.165") (SUB FOR TH106868) (SUB FOR AT137407)
2A	4265483	1	BUSHING	55 X 65 X 55 MM (2.165" X 2.559" X 2.165") (SUB FOR TH106868) (SUB FOR AT137407)

OFFSET CYLINDER (WITH OFFSET BOOM) [02F09]
