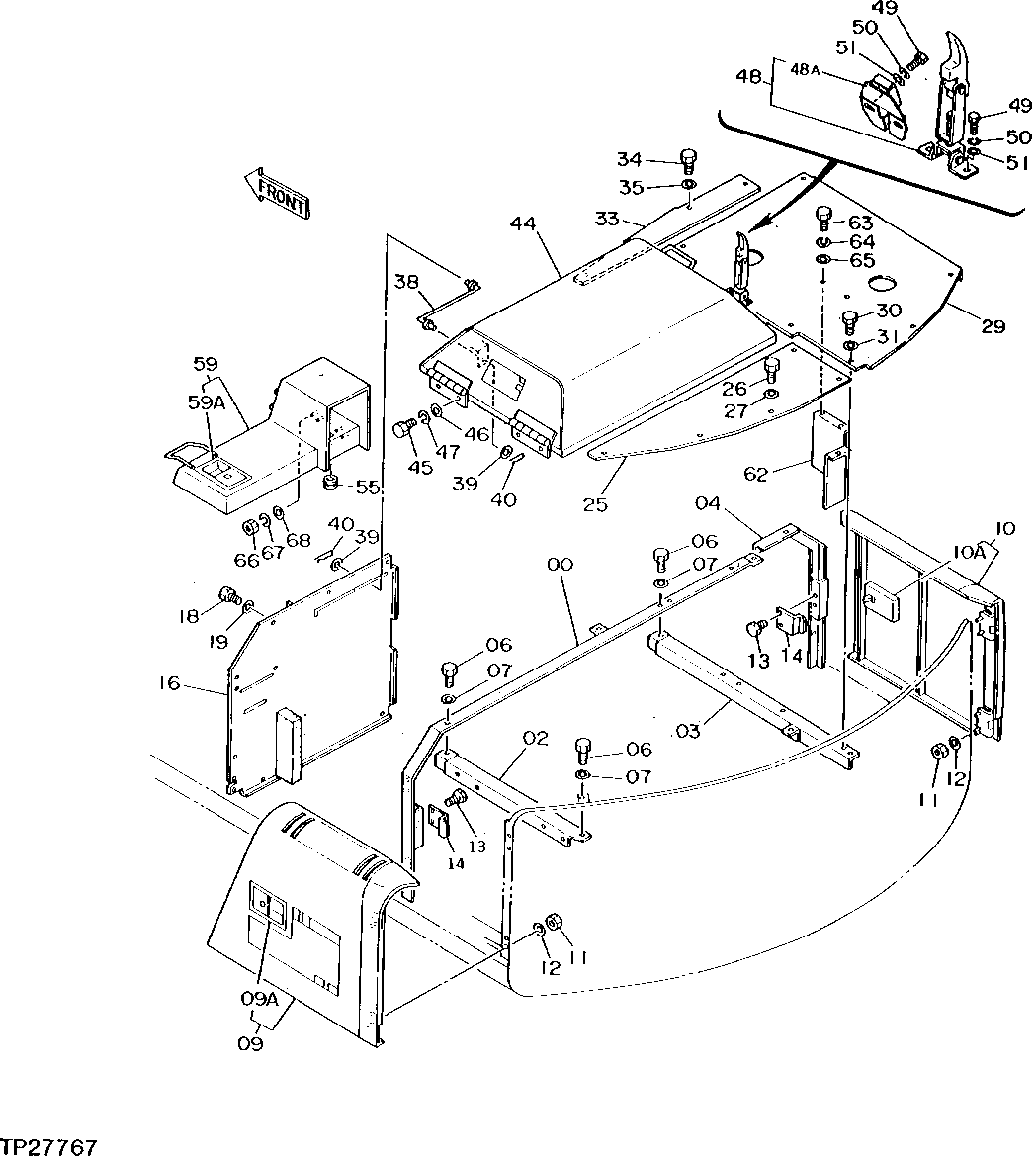

ENGINE COMPARTMENT SERVICE DOORS AND COVER [01H19]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	7019084	1	SUPPORT	(SUB FOR TH110909)
2	8040520	1	SUPPORT	(SUB FOR TH110938)
3	8040521	1	SUPPORT	(SUB FOR TH110939)
4	8037584	1	SUPPORT	(SUB FOR TH110925)
6	19M7872	8	Cap Screw	M12 X 25
7	24M7047	8	Washer	13 X 24 X 2.500 MM
9	7017810	1	DOOR	(SUB FOR TH110893)
10	7017811	1	DOOR	(SUB FOR TH110894)
11	14M7275	8	Nut	M12
12	24M7047	8	Washer	13 X 24 X 2.500 MM
13	19M7872	4	Cap Screw	M12 X 25
14	4188492	2	STOP	(SUB FOR TH108762)
16	7019082	1	COVER	(SUB FOR TH110907)
18	19M7872	8	Cap Screw	M12 X 25
19	24M7047	8	Washer	13 X 24 X 2.500 MM
25	8040519	1	COVER	(SUB FOR TH110937)
26	19M7872	5	Cap Screw	M12 X 25
27	24M7047	5	Washer	13 X 24 X 2.500 MM
29	7019083	1	COVER	(SUB FOR TH110908)
30	19M7872	8	Cap Screw	M12 X 25
31	24M7047	8	Washer	13 X 24 X 2.500 MM
33	3040410	1	COVER	(SUB FOR TH110433)
34	19M7872	3	Cap Screw	M12 X 25
35	24M7047	3	Washer	13 X 24 X 2.500 MM
38	9729209	1	SUPPORT	(SUB FOR TH111000)
39	24H1748	2	Washer	1/2" X 1-1/4" X 0.105"
40	R50647	2	Spring Locking Pin	(SUB FOR TH101244)
44	6008937	1	HOOD	(SUB FOR TH110797)
45	19M8011	4	Cap Screw	M12 X 30
46	24M7047	4	Washer	13 X 24 X 2.500 MM
47	12H301	4	Lock Washer	1/2"
48	4361455	1	Catch	(SUB FOR TH108769)
48	AT194969	1	Key	(SUB FOR AT147803) (H800) (NOT ILLUSTRATED)
49	19M7932	4	Cap Screw	M8 X 16
50	12M7056	4	Lock Washer	8 MM, (SUB FOR 12M7065)
51	24M7055	4	Washer	8.400 X 16 X 1.600 MM
55	445110	1	CLAMP	(SUB FOR TH110784)
59	6009203	1	COVER	(SUB FOR TH110802)
62	8040534	1	COVER	(SUB FOR TH110940)
63	19M7938	3	Cap Screw	M10 X 20
64	12M7066	3	Lock Washer	10 MM
65	24M7101	3	Washer	11 X 34 X 3 MM, (SUB FOR TH101289)
66	14M7273	2	Nut	M8
67	12M7056	2	Lock Washer	8 MM, (SUB FOR 12M7065)
68	24M7055	2	Washer	8.400 X 16 X 1.600 MM
9A	-	1	Part 8	(SUB FOR TH110898) (SUB AT214010) ( AT115741 NO LONGER AVAILABLE)
10A	-	1	Part 10	(SUB FOR TH110126) (SUB AT214010) ( AT115741 NO LONGER AVAILABLE)
48A	3021131	1	Anchor	(SUB FOR TH102247)
59A	-	1	Part 42	(SUB FOR TH110898) (SUB AT214010) ( AT115741 NO LONGER AVAILABLE)
