ELECTRIC PARTS [01G01]

ELECTRIC PARTS [01G01]

ELECTRIC PARTS [01G01]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

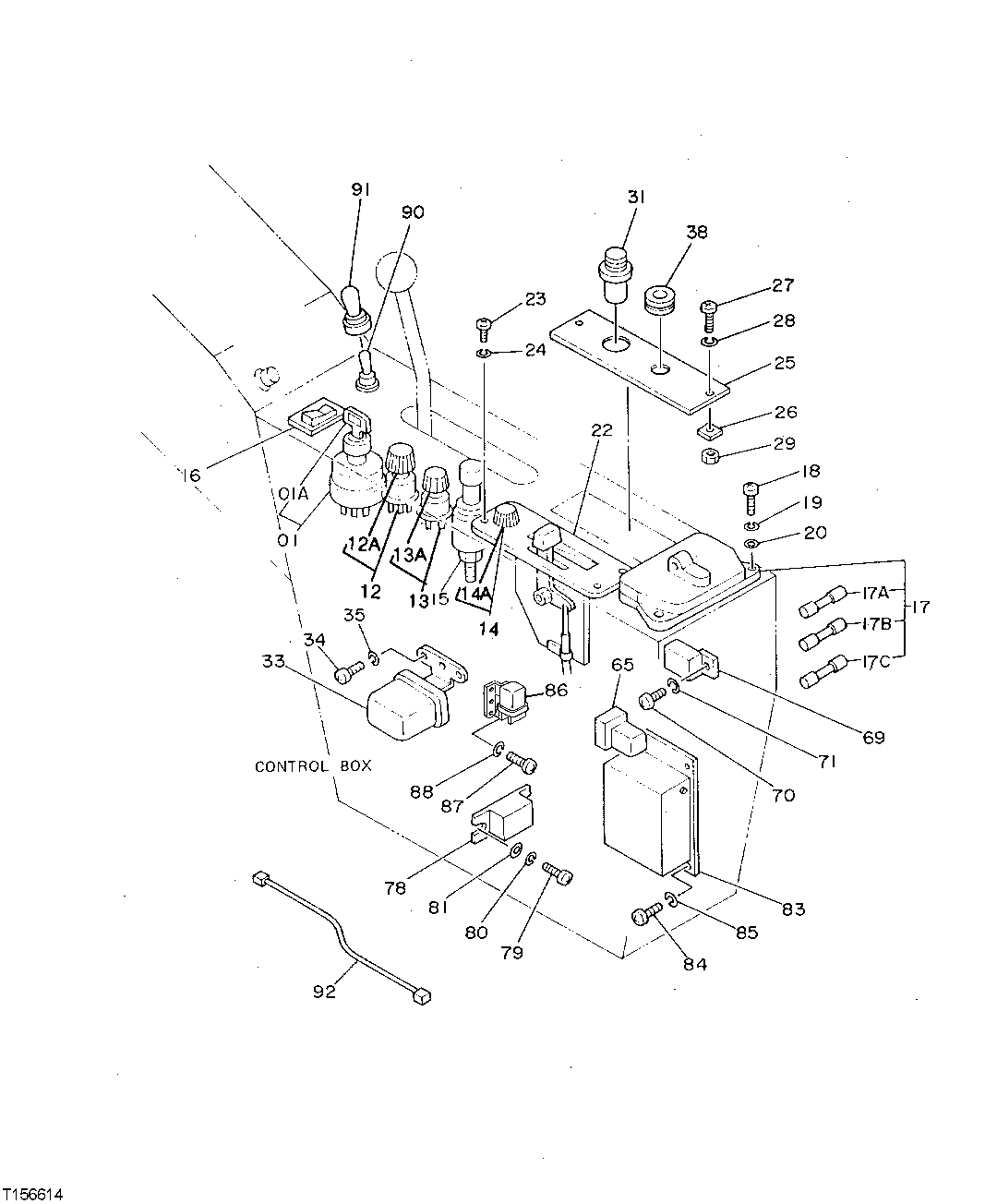

ELECTRIC PARTS [01G01]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	4237505	1	SWITCH	(SUB FOR TH108551 OR 4186744) (STARTER)
12	4184396	1	SWITCH	(SUB FOR TH108556) LIGHT
13	4184398	1	Switch	(SUB FOR TH108559) WIPER
14	4184397	1	Switch	(SUB FOR TH108557) BLOWER
15	AT78633	1	Housing	(12 VOLT)
15	-	1	Part 13	( 4357862 NO LONGER AVAILABLE) (SUB FOR AT190190) (24 VOLT)
15	AU42809	1	Resistor	(12 VOLT)
15	AT78634	1	Wiring Lead	(12 VOLT)
15	AR60937	1	Electrical Lighter	(SUB FOR TH108558, ALONG WITH AT78633, AT78634 AND AU42809) (CIGAR) (12 VOLT)
16	-	1	Part 14	(MODE SELECT) (SUB TH112234 ALONG WITH TH112235)
16	4251778	1	Switch	(SUB FOR TH112234) (MODE SELECT)
17	4205437	1	FUSE BOX	(SUB FOR TH108560)
18	21M7277	2	Screw	M6 X 25
19	12M7006	2	Lock Washer	6 MM, (SUB FOR TH103470)
20	24M7054	2	Washer	6.400 X 12 X 1.600 MM
22	4456566	1	Control	HEATER, (SUB FOR 4189169, ALSO ORDER 4248908)
22	4248908	1	Cable	(SUB FOR AT194604)
23	21M7396	4	Screw	M4 X 10
24	12H315	4	Lock Washer	4.166 MM, (SUB FOR 12M7063)
25	4200522	1	PLATE	(SUB FOR TH108564)
26	4200521	2	PLATE	(SUB FOR TH108565)
27	21M7455	2	Screw	M6 X 20, (SUB FOR 21M7085)
28	12M7006	2	Lock Washer	6 MM
29	14M7272	2	Nut	M6
31	4155755	1	SWITCH	(SUB FOR TH101582) (ETHER START AID)
33	4505392	1	RELAY	(SUB FOR TH100585) HORN
34	21M7288	2	Screw	M6 X 10, (SUB FOR TH100547)
35	12M7006	2	Lock Washer	6 MM
38	4146754	1	ISOLATOR	(SUB FOR TH100572)
65	4192489	1	Diode	(SUB FOR TH110500)
69	4205029	1	Relay	(SUB FOR TH108573) (LOAD DUMP RELAY WITH DIODE)
70	21M7288	1	Screw	M6 X 10, (SUB FOR TH100547)
71	12M7006	1	Lock Washer	6 MM
77	14M7165	2	Lock Nut	M6, (STARTER RELAY TERMINALS)
78	AT85258	1	Relay	(STARTER) (WITHOUT BLADE) (SUB AT145341, ALONG WITH (2) T28583 CONNECTORS)
78	AT145341	1	Relay	(WITHOUT BLADE) (STARTER)
78	AT85258	1	Relay	(SUB AT145341) (WITH BLADE) (STARTER)
78	AT145341	1	Relay	(WITH BLADE) (STARTER)
79	21M7267	3	Screw	M6 X 20
80	12M7006	3	Lock Washer	6 MM
81	24M7054	3	Washer	6.400 X 12 X 1.600 MM
83	9062123	1	Panel	(SUB FOR TH110961) (CONTROL UNIT)
84	21M7288	4	Screw	M6 X 10
85	12M7006	4	Lock Washer	6 MM
86	4357038	1	RELAY	(SUB FOR AT82709) (AUTO IDLE)
87	21M7278	2	Screw	M5 X 10
88	12M7064	2	Lock Washer	5 MM
90	AN15089	1	TOGGLE/ROCKER SWITCH	(AUTO IDLE)
91	4042098	1	Cap	(SUB FOR TH103939)
92	4251779	1	WIRING HARNESS	(SUB FOR TH112235) (MODE SELECT SWITCH)
1A	AT194969	1	Key	(SUB FOR TH108552 AND AT147803)
12A	4268740	1	KNOB	(SUB FOR AT130799)
13A	4268741	1	Knob	(SUB FOR AT130801)
14A	4268750	1	KNOB	(SUB FOR AT130800)
17A	AT58169	3	Fuse	1 AMP
17B	AT28077	9	Fuse	10 AMP, (SUB FOR TH108562) (DOME LIGHT, HEATER, WIPER, HORN, CONTROLLER, MONITOR)
17C	AT39227	5	Fuse	15 AMP, (SUB FOR TH104047) (WORK LIGHTS, LIGHTER)
