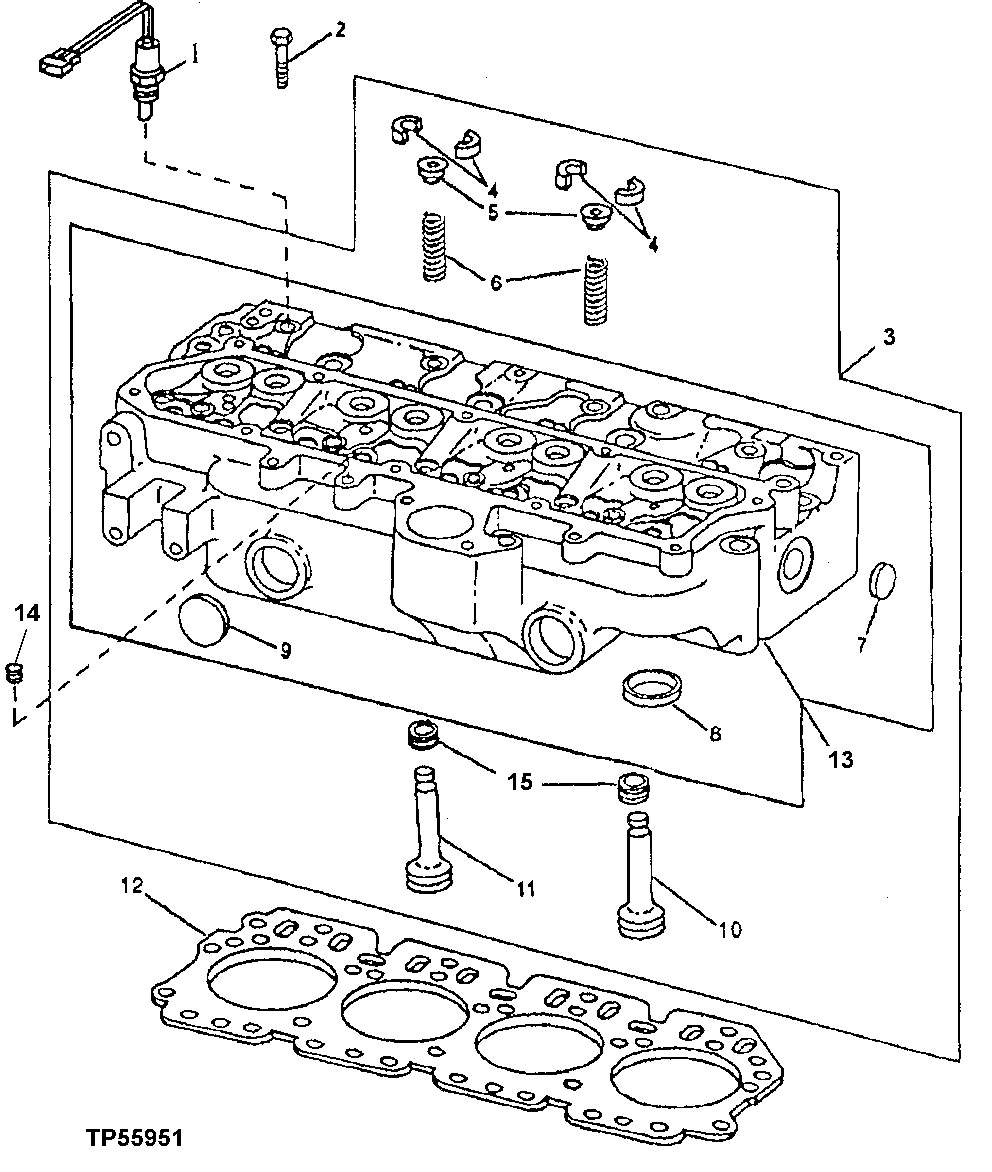

CYLINDER HEAD, HEAD GASKET AND VALVES (ENGINE SERIAL NO. 300000- ) [01D06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH139059	1	Temperature Switch	(ENGINE COOLANTTEMPERATURE) (SUB FOR AT120609, THIS APPLICATION) (SUB FOR AH139059)
2	R85363	18	Cap Screw	12.700 X 112 MM (1/2" X 4.409")
3	RE48615	1	Cylinder Head	CONVENIENCE ASSEMBLY,(MARKED R111949)
4	R91889	16	Retainer	-
5	RE60005	8	Rotator	(SUB FOR RE31323)
6	R26125	8	Spring	-
7	N102039	2	Plug	(SUB FOR A3910R)
8	R98063	4	Valve Seat Insert	STANDARD SIZE INTAKE VALVE
8	R98335	4	Valve Seat Insert	OVERSIZE INTAKE VALVE
8	R85687	4	Valve Seat Insert	STANDARD SIZE EXHAUST VALVE
8	R93910	4	Valve Seat Insert	OVERSIZE EXHAUST VALVE
9	R43409	2	Plug	-
10	R90692	4	Exhaust Valve	STANDARD
10	R97493	4	Exhaust Valve	.030" OVERSIZE
10	R97492	4	Exhaust Valve	.015" OVERSIZE
11	R98062	4	Intake Valve	STANDARD
11	R97490	4	Intake Valve	.015" OVERSIZE
11	R97491	4	Intake Valve	.030" OVERSIZE
12	R125863	1	GASKET	(SUB FOR R92425)
13	RE48616	1	Cylinder Head	(MARKED R111949) (SUB RE48615)
14	R104592	1	Pipe Plug	3.175 MM (1/8")
15	RE31617	8	Seal	STANDARD
15	-	8	Part 23	-
15	-	8	Part 24	-

CYLINDER HEAD, HEAD GASKET AND VALVES (ENGINE SERIAL NO. 300000- ) [01D06]
