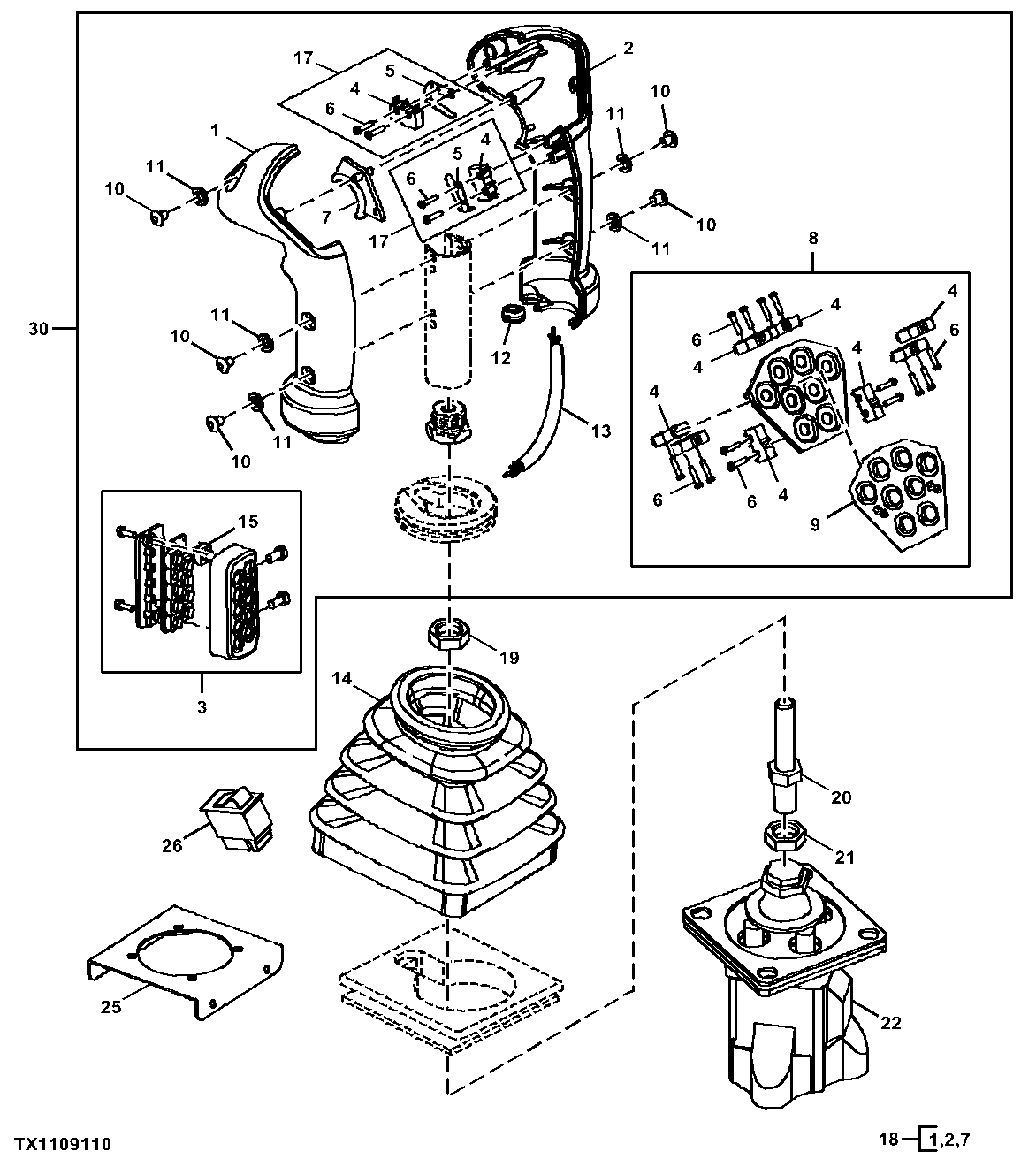

Measuring System Joystick Components, Right (RH)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F658448	1	Case	NLA; ORDER F658451
2	F658449	1	Case	NLA; ORDER F658451
3	AT415142	1	Push Switch	RH Module Includes Case Half and Harness
4	F057215	10	Switch	-
5	-	2	Part 5	-
6	F057647	4	Screw	-
7	F658450	1	Lever	NLA; ORDER F658451
8	F435820	1	Panel	-
9	F435821	1	Panel	Button Overlay
10	F057648	6	Screw	-
11	-	1	Part 11	10–32
12	F057637	1	Grommet	-
13	AT480562	1	Wiring Harness	Cable Harness, ALSO ORDER 57M9575, 57M10347, 57M10265 AND (25) 57M7683
13	57M7633	1	Electrical Connector Assy	-
13	57M7682	1	Elec.Connect Locking Device	-
14	F433669	1	Boot	LGTH = 90 mm , 5 Rib
15	AT350864	10	Push Switch	NLA; ORDER AT415142
17	AT372714	1	Spring Assembly	-
18	F658451	1	Case Kit	-
19	14M7415	1	Nut	M12
20	F295311	1	Adapter Fitting	-
21	14M7157	1	Nut	M14
22	AT348338	1	Hydr./Pilot Control Valve	Components Listed On Separate Page
25	F298565	1	Plate	-
26	F120944	1	Switch	Saw Enable Switch
26	F434492	1	Bulb	-
30	AT348570	1	Control Lever	-
31	57M9575	1	Elec. Connector Housing	Not Illustrated
32	57M10347	1	Elec. Connector Housing	Not Illustrated
33	57M10265	1	Elec.Connect Locking Device	Not Illustrated
34	57M7683	25	Elec. Connector Terminal	Not Illustrated

Measuring System Joystick Components, Right (RH)
