Открытый узел

TRANSMISSION CONTROL CABLES

TRANSMISSION CONTROL CABLES

TRANSMISSION CONTROL CABLES

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

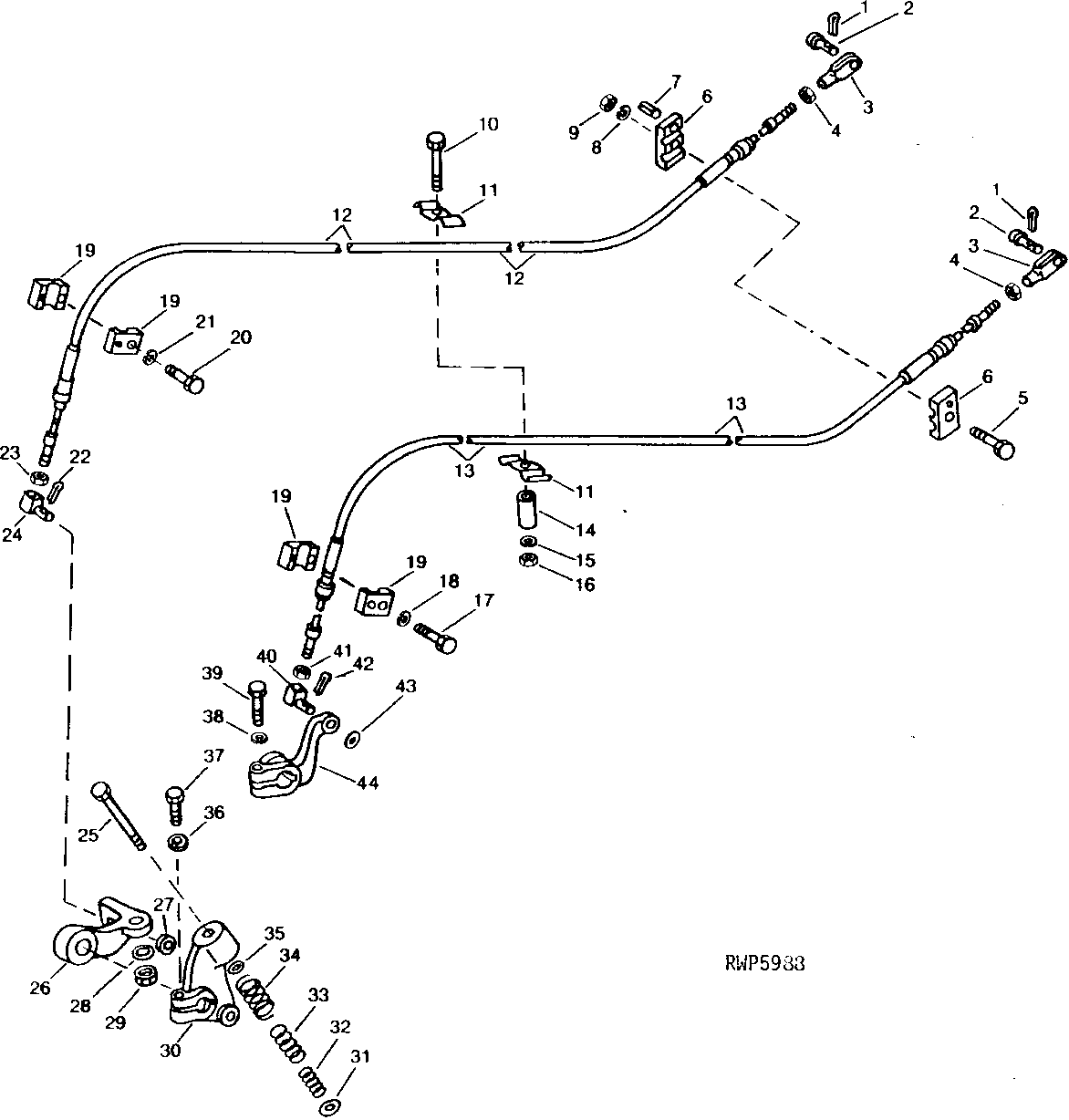

TRANSMISSION CONTROL CABLES

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	11M7081	2	Cotter Pin	2.500 X 20 mm
2	R65563	2	Pin Fastener	(SUB FOR C1067R)
3	T13606	2	Yoke	-
4	14H774	2	Nut	3/8"
5	19H1819	1	Cap Screw	3/8" X 2-1/8"
6	R47807	2	Clamp	-
7	34H254	1	Spring Pin	1/8" X 1-1/2"
8	12H304	1	Lock Washer	3/8"
9	14H1076	1	Nut	3/8"
10	19H1912	1	Cap Screw	3/8" X 3-1/2"
11	R34064	2	CLAMP	-
12	R48720	1	Seal	(TERMINAL SLEEVE TO INNER MEMBER OUTPUT END)
12	R48719	1	Seal	(TERMINAL SLEEVE TO INNER MEMBER INPUT END) (SUB R48720)
12	R48718	1	Seal	(CONDUIT TO TERMINAL SLEEVE)
12	AR50523	1	Push Pull Cable	(SPEED CHANGE)
13	AR50522	1	Push Pull Cable	(SPEED RANGE)
13	R48718	1	Seal	(CONDUIT TO TERMINAL SLEEVE)
13	R48719	1	Seal	(TERMINAL SLEEVE TO INNER MEMBER INPUT END) (SUB R48720)
13	R48720	1	Seal	(TERMINAL SLEEVE TO INNER MEMBER OUTPUT END)
13	R49921	1	Clamp	-
13	19H2021	1	Cap Screw	3/8" X 5/8"
13	12H304	1	Lock Washer	3/8"
14	28H1635	1	Spacer	0.493" X 0.675" X 2-1/8", 3/8" X 2-1/8"
15	12H304	1	Lock Washer	3/8"
16	14H1076	1	Nut	3/8"
17	19H2549	1	Cap Screw	3/8" X 1-7/8"
18	12H304	1	Lock Washer	3/8"
19	R47806	4	Clamp	-
20	19H2128	1	CAP SCREW	3/8" X 3"
21	12H304	1	Lock Washer	3/8"
22	11M7081	1	Cotter Pin	2.500 X 20 mm
23	14H774	1	Nut	3/8"
24	AR51386	1	Swivel	-
25	19H1854	1	Cap Screw	3/8" X 3-3/4"
26	R47701	1	Arm	-
27	24H1302	1	Washer	13/32" X 11/16" X 0.035"
28	R1870R	1	Washer	(SUB R57696)
29	T11234	1	Lock Nut	-
30	R47702	1	Arm	-
31	24H1272	1	Washer	9/16" X 1-1/4" X 1/4"
32	R26369	1	SPRING	-
33	R26638	1	SPRING	-
34	R26637	1	SPRING	-
35	R1870R	1	Washer	(SUB R57696)
36	12H304	1	Lock Washer	3/8"
37	19H1800	1	Cap Screw	3/8" X 1-1/2"
38	12H304	1	Lock Washer	3/8"
39	19H1800	1	Cap Screw	3/8" X 1-1/2"
40	AR51386	1	Swivel	-
41	14H774	1	Nut	3/8"
42	11M7081	1	Cotter Pin	2.500 X 20 mm
43	24H1302	1	Washer	13/32" X 11/16" X 0.035"
44	R47703	1	Arm	-
