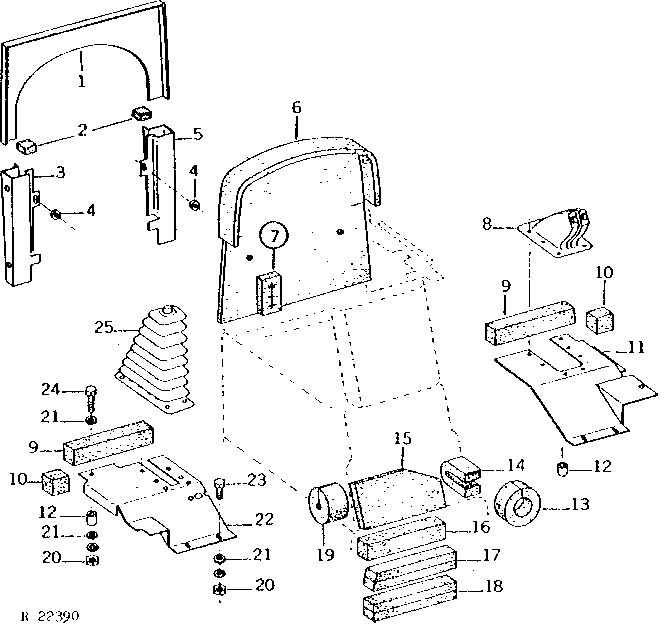

SEALING BAFFLES, COWL PANEL, AND EXTENSION

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 2	(MAKE FROM R44585)
1	AR51589	1	Panel	-
2	-	2	Part 3	25 X 25 X 60MM (1" X 1" X 2-3/8"), (MAKE FROM R30937)
3	AR51210	1	Panel	-
3	-	1	Part 5	38 X 38 X 262MM (1-1/2" X 1-1/2" X 10-5/16"), (MAKE FROM R47941)
4	R48378	2	Washer	-
5	AR51209	1	Panel	-
5	-	1	Part 8	38 X 38 X 262MM (1-1/2" X 1-1/2" X 10-5/16"), (MAKE FROM R47941)
6	AR65967	1	Isolator	-
7	R48237	1	Isolator	-
8	R48151	1	BOOT	-
9	-	2	Part 12	51 X 51 X 305MM (2" X 2" X 12"), (MAKE FROM R44791)
10	-	2	Part 13	51 X 51 X13MM (2" X 2" X 1/2"), (MAKE FROM R44791)
11	AR63181	1	Extension	(ALSO ORDER 19H1900, 24H1136 AND 12H303) (SUB FOR AR50820 OR AR53144)
12	28H1495	2	Spacer	0.493" X 0.675" X 1", 3/8" X 1"
13	R28123	1	Pad	-
14	R28123	1	Pad	(RH CLUTCH HOUSING SIDE HOLE)
15	R46632	1	ISOLATOR	(CLUTCH HOUSING REAR)
16	R35340	1	PAD	(CLUTCH HOUSING REAR CAST HOLE)
17	R28123	2	Pad	(REAR CAST HOLE OVER OIL LINES)
18	-	2	Part 21	25 X 51 X 229MM (1" X 2" X 9"), (MAKE FROM R28123 CLUTCH HOUSING REAR CAST HOLE)
19	-	1	Part 22	38 X 51 X 229MM (1-1/2" X 2" X 9"), (MAKE FROM R35339 LH CLUTCH HOUSING HOLE)
20	14H1076	6	Nut	3/8"
20	12H304	6	Lock Washer	3/8"
21	24H1305	6	Washer	13/32" X 13/16" X 0.065"
22	AR64281	1	Extension	(SUB FOR AR53145)
23	03H1519	6	Bolt	3/8" X 1"
24	19H1726	2	Cap Screw	3/8" X 2-1/4"
25	R49042	2	SUPPORT	-
25	R48150	1	BOOT	-
25	R57257	1	BOOT	(ILLUSTRATED)
..	R53745	1	Tape	54.9M (180 FT.), (SUB FOR R46662)
..	R46663	1	Sealing Trim	18.3M (60 FT.)
..	AR85792	2	Adhesive	-
