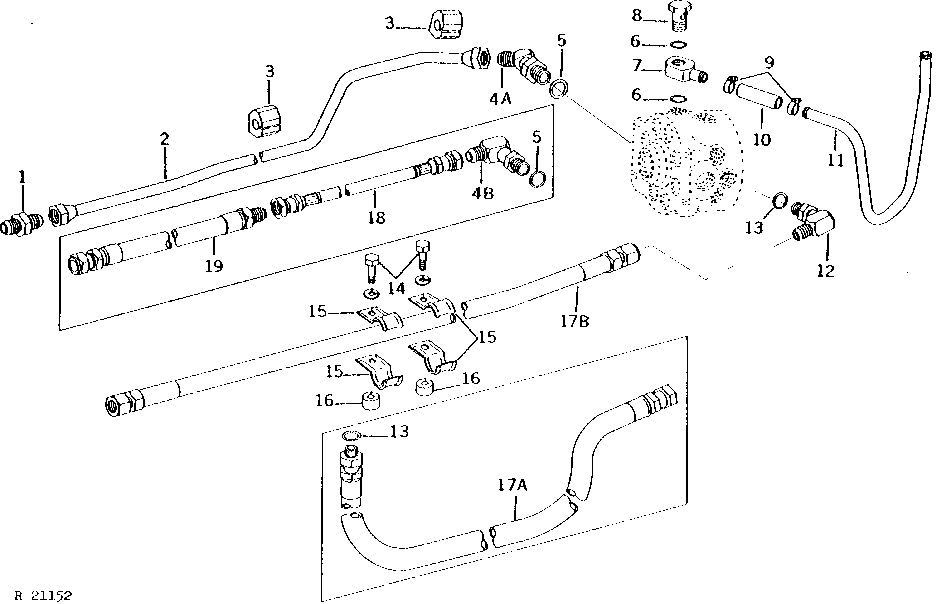

HYDRAULIC PUMP PRESSURE AND RETURN PIPES

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27266	1	Fitting	-
2	AR43151	1	OIL LINE	(USE IF TRACTOR IS DISASSEMBLED)
3	R43479	2	SPACER	-
5	F3171R	1	O-Ring	-
6	R27928	2	O-Ring	-
6	R27928	1	O-Ring	(REPLACEMENT PUMP WITH SERIAL PLATE) (TOP)
6	P47908	1	O-Ring	(REPLACEMENT PUMP WITH SERIAL PLATE) (BOTTOM)
7	R27926	1	FITTING	-
8	R27927	1	BOLT	-
9	AT18904	2	Clamp	-
10	-	1	Part 13	(MAKE FROM TY22563)
11	R48135	1	Tube	-
12	AR40516	1	ELBOW FITTING	-
12	RE19313	1	Elbow Fitting	(REPLACEMENT PUMP WITH SERIAL PLATE)
13	R26906	2	O-Ring	-
13	F3171R	1	O-Ring	(REPLACEMENT PUMP WITH SERIAL PLATE)
14	19H2733	2	Cap Screw	3/8" X 2-3/8"
14	12H304	2	Lock Washer	3/8"
15	R36180	4	CLAMP	-
16	28H1497	2	Bushing	0.493" X 0.675" X 1-1/2", 3/8" X 1-1/2"
18	AR45230	1	HYDRAULIC HOSE	(USE IF TRACTOR IS NOT DISASSEMBLED)
19	R37143	1	Hydraulic Hose	(USE IF TRACTOR IS NOT DISASSEMBLED)
4A	AR47803	1	ELBOW FITTING	60°
4B	AR27888	1	ELBOW FITTING	(USE IF TRACTOR IS NOT DISASSEMBLED) 90°, (USE WITH AR45230)
17A	AR53224	1	Hose	(ALSO ORDER R27270) (SUB FOR AR52242)
17B	AR61672	1	Hydraulic Hose	-

HYDRAULIC PUMP PRESSURE AND RETURN PIPES
