Открытый узел

HI-LO SPEED SELECTOR SHIFTER LEVER, SUPPORT AND CABLE

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24M7096	5	Washer	10.500 X 18 X 1.600 mm
2	11M7081	5	Cotter Pin	2.500 X 20 mm
3	R47970	1	Rod	-
4	R47968	1	Bracket	-
5	11M7059	1	Cotter Pin	3.200 X 20 mm
6	F2353R	1	Pin Fastener	-
7	19H2615	3	CAP SCREW	5/8" X 3-3/4"
8	R47775	1	Support	-
9	14H1039	3	Nut	5/8"
9	12H294	3	Lock Washer	5/8"
10	19H1732	2	Cap Screw	3/8" X 1-1/4"
10	12H304	2	Lock Washer	3/8"
11	R56415	1	Lever	(SUB FOR R47969) (NLA)
12	T13606	1	Yoke	-
13	11M7081	1	Cotter Pin	2.500 X 20 mm
14	R65563	1	Pin Fastener	(SUB FOR C1067R)
15	14H774	1	Nut	3/8"
16	R47806	4	Clamp	-
17	19H2979	2	CAP SCREW	-
17	12H304	2	Lock Washer	3/8"
18	AR50862	1	Push Pull Cable	-
18	R48718	1	Seal	(CONDUIT TO TERMINAL SLEEVE)
18	R48719	1	Seal	(TERMINAL SLEEVE TO INNER MENBER INPUT END) (SUB R48720)
18	R48720	1	Seal	(TERMINAL SLEEVE TO INNER MEMBER OUTPUT END)
19	14H1040	1	Nut	1/2"
19	12H301	1	Lock Washer	1/2"
20	14H1076	1	Nut	3/8"
20	12H304	1	Lock Washer	3/8"
21	19H444	2	Cap Screw	1/2" X 1"
21	12H301	2	Lock Washer	1/2"
22	AR50860	1	Support	-
22	R48813	1	Label	-
23	14H1076	3	Nut	3/8"
23	12H304	3	Lock Washer	3/8"
24	R47967	1	Angle	-
25	19H988	2	CAP SCREW	3/8" X 1-1/4"
26	H75541	1	Clamp	(SUB FOR R46415)
27	19H2284	1	Cap Screw	3/8" X 7/8"
28	14H1080	1	Nut	3/8"
28	12H304	1	Lock Washer	3/8"
29	24H1652	1	Washer	13/32" X 11/16" X 7/64"
30	AR52087	1	Arm	-
31	24H1321	1	Shim	-
32	AR52086	1	Cam Follower	-
33	11M7059	1	Cotter Pin	3.200 X 20 mm
34	R38185	1	Spring	-
35	19H2644	1	Cap Screw	1/2" X 2-1/2"
36	24H1211	1	Washer	9/16" X 1-3/8" X 0.105"
37	R47966	1	Bushing	-
39	34H254	1	Spring Pin	1/8" X 1-1/2"
40	R26182	1	Bushing	-
41	14H1076	2	Nut	3/8"
41	12H304	2	Lock Washer	3/8"
42	24H1305	4	Washer	13/32" X 13/16" X 0.065"
43	19H1731	2	Cap Screw	3/8" X 1"
44	R49202	1	Angle	-
45	14H732	1	Nut	3/8"
46	R42948	1	Set Screw	-
47	F2861R	1	KNOB	(SUB R60458)
38A	AR50861	1	Shifter	(SUB AR54435)
38B	AR54435	1	Lever	-

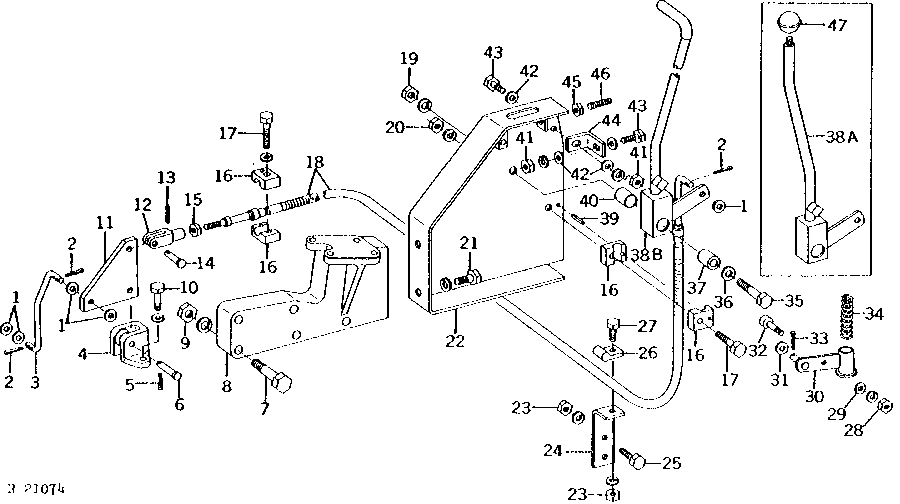

HI-LO SPEED SELECTOR SHIFTER LEVER, SUPPORT AND CABLE
