CAB FRONT AND REAR LAMPS, TAIL LAMP AND WARNING LAMPS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R42689	1	Bezel	(HOBBS)
2	AR42591	1	Headlight	(12-VOLT), (FRONT AND REAR UPPER) (USE WITH AR42119 (4422))
2	RE285629	1	FLOODLAMP	LED LAMP, TRAPEZOID FLOOD PATTERN.
2	AR104119	1	Headlight	(12-VOLT), (FRONT AND REAR UPPER) (HALOGEN) (USE WITH RE19075 (H7606))
2	RE285628	1	FLOODLAMP	LED LAMP, FLOOD PATTERN.
3	-	1	Part 6	165MM (6-1/2"), (MAKE FROM R66319 AND (2) R32016)
4	21H1293	2	SCREW	0.164" X 5/16"
5	12M7084	2	Lock Washer	4.300 mm
6	AR42119	1	FLOODLAMP	(12-VOLT), (SUB RE19075, THIS APPLICATION)
7	R30181	1	PLATE	ORDER R1134R; (HOBBS)
8	R27460	2	ELEC. CONNECTOR ACCESSORY	-
9	R43662	1	BRACKET	-
10	37H106	2	SCREW	3/8" X 5/8"
11	19H2644	1	Cap Screw	1/2" X 2-1/2"
12	12H301	1	Lock Washer	1/2"
13	14H856	1	Nut	1/2"
14	12H292	1	Lock Washer	1/2"
15	R38371	1	Washer	-
16	R42667	1	LENS	(RED)
16	R42666	1	LENS	(AMBER)
16	AD2062R	1	Bulb	32 C.P. (12-16 VOLT)
16	AT23467	1	LAMP	(SUB FOR AR38456)
16	RE69223	1	LAMP	(SUB FOR AR54975)
17	37H2	4	Screw	0.164" X 5/8"
18	R45936	1	Lens	-
19	R45937	1	Gasket	-
20	AR48041	1	Bulb	-
21	-	1	Part 28	(ORDER AR78825)
22	AR78825	1	Tail Lamp	NUT AND WASHER, (SUB FOR AR45099)
23	14H1040	1	Nut	1/2"
24	12H301	1	Lock Washer	1/2"
25	F2935R	1	WASHER	-
26	R48663	1	WASHER	-
27	AR51335	1	LAMP	(NLA)
27	AR54891	1	Lamp	-
27	AR54892	1	Wiring Harness	-
27	R21551	3	CLIP	-
28	RE25125	1	Dual Beam Headlamp	(12-VOLT), (HALOGEN) (SUB FOR AR48723)
29	R48293	1	Bezel	-
29	R31250	1	BEZEL	-
30	R1134R	1	Eyelet	-

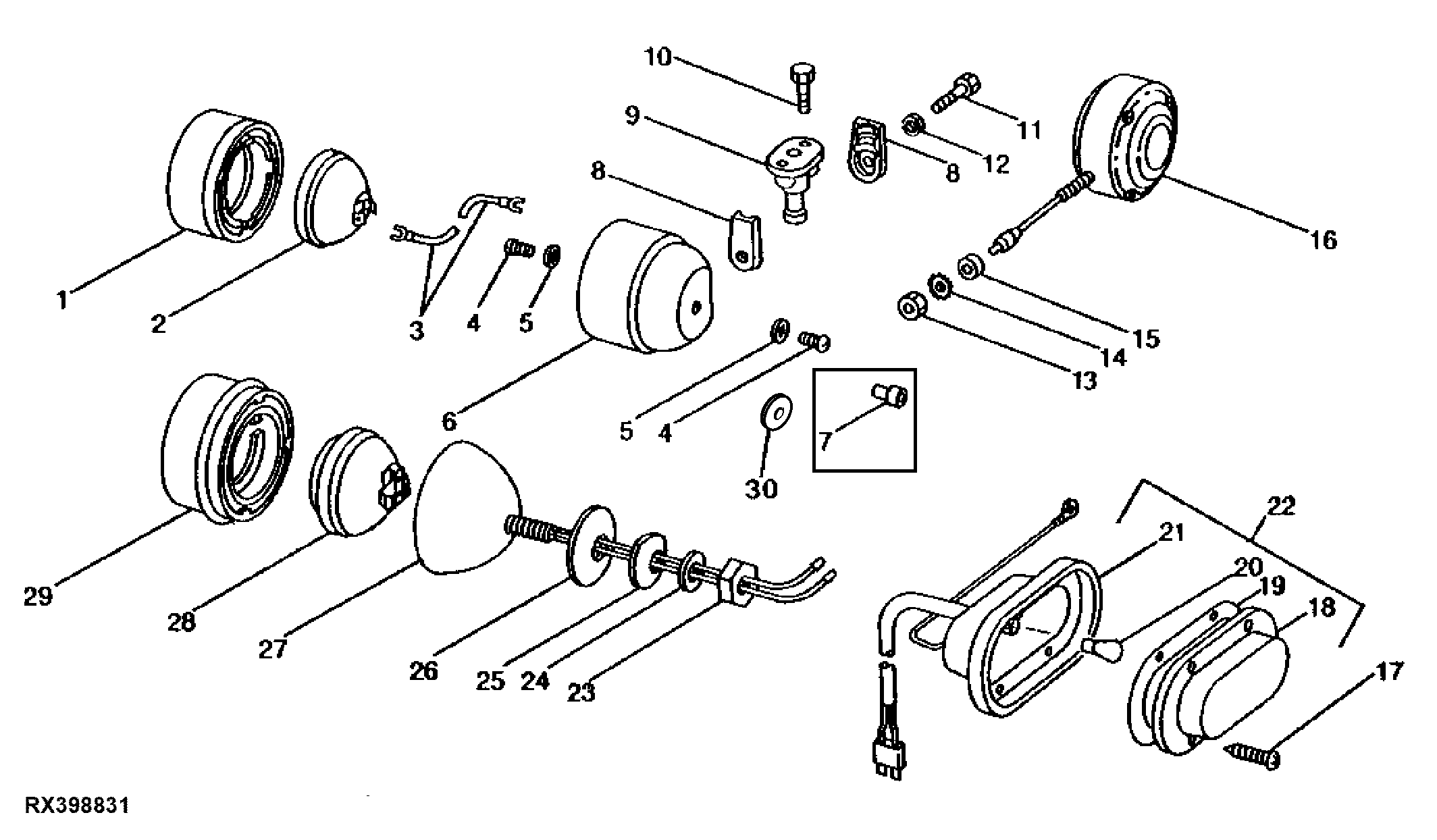

CAB FRONT AND REAR LAMPS, TAIL LAMP AND WARNING LAMPS
