Открытый узел

Winch Mounting Kit Without Rear Auxiliary

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

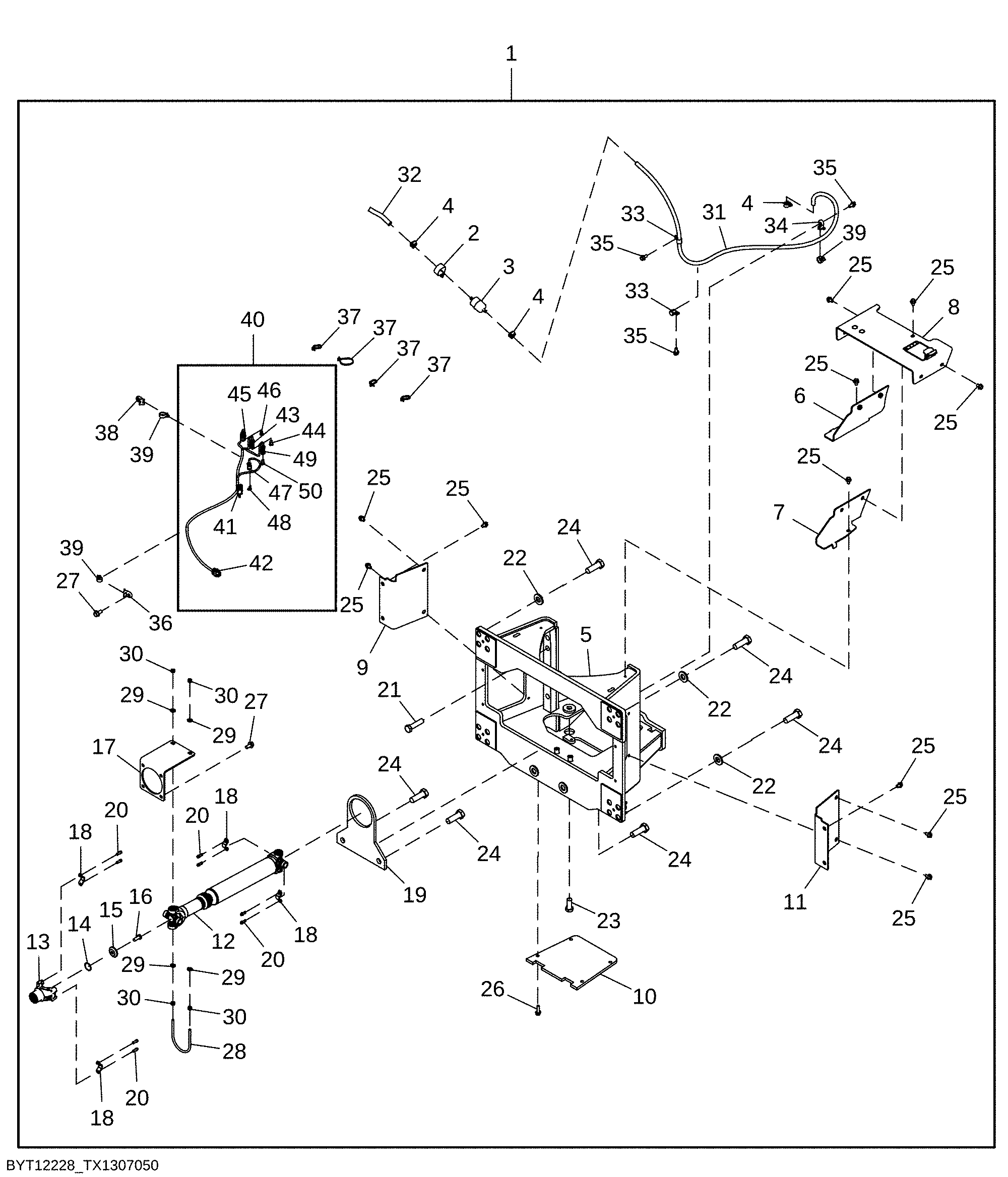

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT12228	1	Winch Kit	Whole Goods
2	N205415	1	Clamp	-
3	AT101565	1	Air Filter	-
4	AR21836	3	Clamp	-
5	AT496982	1	Bracket	-
6	AT427206	1	Cover	RH
7	AT427205	1	Cover	LH
8	AT427204	1	Cover	-
9	T177836	1	Cover	-
10	T177793	1	Plate	-
11	T177851	1	Cover	-
12	AT495574	1	Universal Driveshaft	-
13	T185656	1	Universal Joint Yoke	-
14	M41029	1	Snap Ring	-
15	T163182	1	Spacer	-
16	19M8011	1	Cap Screw	M12 X 30
17	T414789	1	Bracket	-
18	T69938	4	Half Clamp	-
19	T177837	1	Plate	-
20	T113128	8	Screw	-
21	19M7892	8	Cap Screw	M20 X 80
22	24M7243	16	Washer	25.400 X 50 X 6 mm
23	19M7950	2	Cap Screw	M20 X 45
24	19M8346	20	Cap Screw	M24 X 70
25	19M7783	15	Screw	M10 X 16
26	19M7835	4	Screw	M10 X 35
27	19M7788	5	Screw	M12 X 25
28	T36393	1	U-Bolt	-
29	24H1305	4	Washer	13/32" X 13/16" X 0.065"
30	14H1076	4	Nut	3/8"
31	-	1	Part 31	MAKE FROM M87571, CTL 1633 mm (5 ft 4.5 in)
32	-	1	Part 32	MAKE FROM M87571, CTL 120 mm (5 in)
33	R46414	2	Clamp	-
34	T351899	1	Clamp	-
35	19M7784	3	Screw	M10 X 20
36	T372741	1	Clamp	-
37	R44302	4	Tie Band	-
38	N380408	1	Clamp	-
39	H224073	3	Tie Band	-
40	AT497212	1	Wiring Harness	Winch Harness
41	R78053	1	Electrical Connector Assy	B570, Winch Pressure Switch
41	57M7251	2	Elec. Connector Terminal	-
41	57M9218	2	Elec. Connector Seal	-
42	57M9750	1	Elec. Connector Housing	X21B, Winch Harness to Back Frame Harness Connector
42	R78065	6	Elec. Connector Terminal	-
43	57M13029	1	Elec. Connector Housing	Y33, Winch Brake off Solenoid
43	R78065	2	Elec. Connector Terminal	-
44	57M8022	1	Elec.Connect Locking Device	Winch Brake off Solenoid
45	57M13029	1	Elec. Connector Housing	Y36, Winch Clutch Solenoid
45	R78065	2	Elec. Connector Terminal	-
46	57M8022	1	Elec.Connect Locking Device	Winch Clutch Solenoid
47	57M8021	1	Electrical Connector Assy	Y35, Winch Direction Solenoid
47	R78065	2	Elec. Connector Terminal	-
48	57M8022	1	Elec.Connect Locking Device	Winch Direction Solenoid
49	57M13029	1	Elec. Connector Housing	Y34, Winch Freespool Solenoid
49	R78065	2	Elec. Connector Terminal	-
50	57M8022	1	Elec.Connect Locking Device	Winch Freespool Solenoid

Winch Mounting Kit Without Rear Auxiliary
