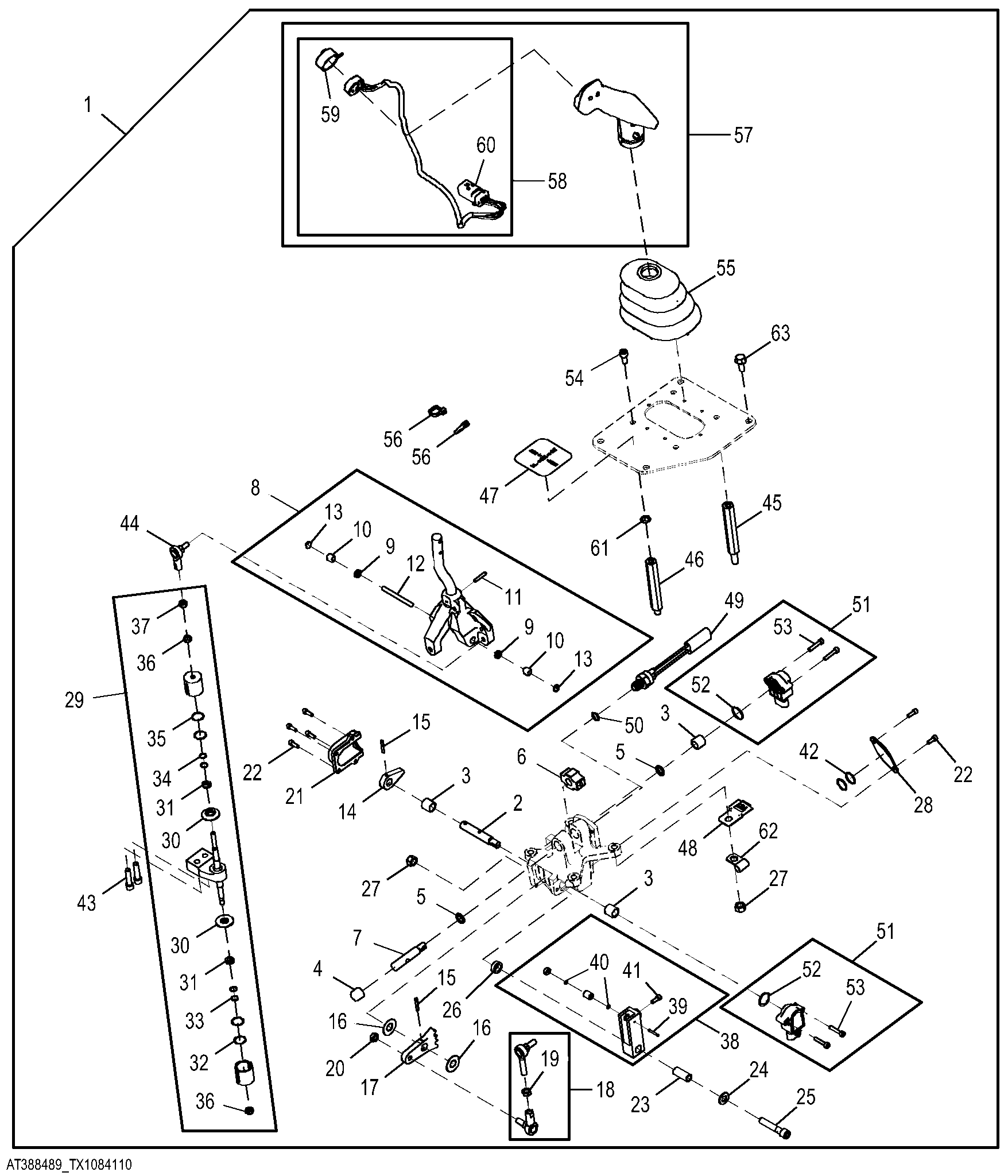

Transmission, Hydrostatic Control Lever

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT376576	1	Control Lever	-
2	T176147	1	Cam	-
3	AT220702	3	Bearing	-
4	AT220703	1	Bearing	-
5	AT220704	2	Seal	-
6	T176143	1	Spacer	-
7	T176144	1	Universal Driveshaft	-
8	AT222803	1	Bracket	-
9	AT220710	2	Seal	-
10	AT220711	2	Bearing	-
11	34H266	1	Spring Pin	5/32" X 1"
12	T176145	1	Universal Driveshaft	-
13	T176146	2	Plug	-
14	T176148	1	Cam	-
15	34H266	2	Spring Pin	5/32" X 1"
16	T176149	2	Washer	-
17	T176150	1	Plate	-
18	AT220706	1	Linkage	-
19	14H882	1	Nut	5/16"
20	14H882	1	Nut	5/16"
21	AT220707	1	Cover	-
22	T176152	6	Screw	-
23	T177602	1	Spacer	-
24	T177605	1	Washer	-
25	T177604	1	Screw	-
26	T177603	1	Spacer	-
27	14H1076	2	Nut	3/8"
28	T176155	1	Plate	-
29	AT220709	1	Spring Assembly	-
30	T176168	2	Washer	-
31	T176169	2	Spacer	-
32	T176170	1	Spring	-
33	T176171	1	Spring	-
34	T176172	1	Spring	-
35	T176173	1	Spring	-
36	T10581	2	Lock Nut	-
37	14H860	1	Nut	1/4"
38	AT220708	1	Lever	Detent
39	R39090	1	Needle Roller	-
40	T26257	2	O-Ring	-
41	T176152	1	Screw	-
42	T176154	1	Spring	-
43	M882T	2	Screw	-
44	AT169374	1	Ball Joint	-
45	T178767	1	Post	-
46	T176158	3	Post	-
47	T204071	1	Label	Forward - Neutral - Reverse
48	57M10650	1	Clip Kit	-
49	AT86950	1	Switch	Neutral Start Switch
50	R26448	1	O-Ring	-
51	AT220879	2	Potentiometer	FNR Sensor Steer Sensor
52	U15980	2	O-Ring	-
53	19M8146	4	Screw	M5 X 16
54	T176136	4	Bolt	-
55	AT220855	1	Boot	-
56	R44302	2	Tie Band	-
57	AT376577	1	Grip	-
58	AT376578	1	Cable	-
59	T178768	1	Boot	Switch Cover
60	57M9753	1	Elec. Connector Housing	-
61	24M7388	3	Washer	10 X 16 X 1 mm
62	AT222606	1	Clamp	-
63	T164946	4	Screw	SUB FOR 19M7865
