Topcon Light Bar and Coax Cables

Topcon Light Bar and Coax Cables

Topcon Light Bar and Coax Cables

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Topcon Light Bar and Coax Cables

Нет текстового описания

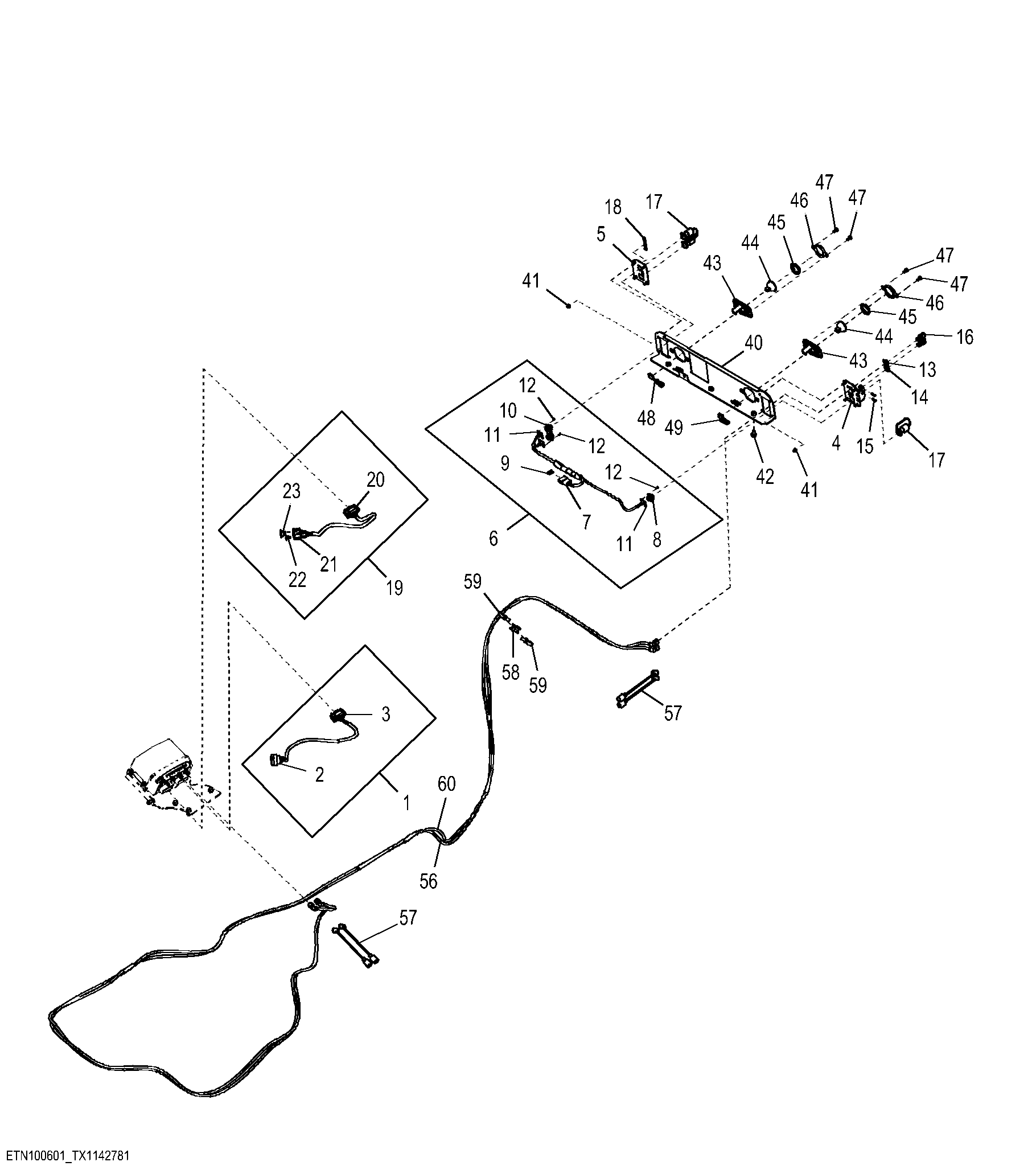

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT416149	1	Wiring Harness	IGC
2	57M7543	1	Elec. Connector Housing	-
3	57M11531	1	Elec. Connector Housing	-
4	AT430316	1	Guard	-
5	AT416103	1	Guard	-
6	AT426002	1	Wiring Harness	IGC Grill Harness
7	57M7633	1	Electrical Connector Assy	-
8	57M11539	1	Elec. Connector Housing	-
9	57M7682	1	Elec.Connect Locking Device	-
10	57M11538	2	Elec. Connector Housing	-
11	T331463	3	Elec. Connector Accessory	-
12	19H4047	12	Screw	0.112" X 3/8"
13	T326120	1	Graphics Panel	-
14	T326121	1	Graphics Panel	-
15	34H339	2	Spring Pin	5/16" X 3/4"
16	57M11757	2	Elec. Connector Housing	-
17	W42413	3	Cap	-
18	T325733	1	Graphics Panel	-
19	AT427640	1	Wiring Harness	IGC
20	57M11532	1	Elec. Connector Housing	-
21	57M8012	1	Electrical Connector Assy	-
22	57M8013	1	Elec.Connect Locking Device	-
23	57M8009	1	Elec.Connect Locking Device	-
24	AT426002	1	Wiring Harness	IGC Grill Harness
25	57M7633	1	Electrical Connector Assy	-
26	57M11539	1	Elec. Connector Housing	-
27	T331463	3	Elec. Connector Accessory	-
28	57M7682	1	Elec.Connect Locking Device	-
29	19H4047	12	Screw	0.112" X 3/8"
30	57M11538	2	Elec. Connector Housing	-
31	AT427640	1	Wiring Harness	IGC
32	57M11532	1	Elec. Connector Housing	-
33	57M8008	1	Electrical Connector Assy	-
34	57M8012	1	Electrical Connector Assy	-
35	57M8013	1	Elec.Connect Locking Device	-
36	57M8009	1	Elec.Connect Locking Device	-
37	AT416149	1	Wiring Harness	IGC
38	57M7543	1	Elec. Connector Housing	-
39	57M11531	1	Elec. Connector Housing	-
40	AT379245	1	Bracket	-
41	14M7397	8	Lock Nut	M6
42	19M7784	3	Screw	M10 X 20
43	T202551	2	Housing	-
44	AT221450	2	Bulb	-
45	T208406	2	Grommet	-
46	T177833	2	Ring	-
47	19M7775	4	Screw	M6 X 16
48	AT222676	1	Wiring Harness	High Intensity Light
49	AT222676	1	Wiring Harness	High Intensity Light
50	AT222676	2	Wiring Harness	High Intensity Light
51	AT222676	1	Wiring Harness	High Intensity Light
52	AT435237	1	Wiring Harness	High Intensity Light
53	W42990	2	Cap	-
54	AT435238	1	Wiring Harness	IGC
55	W42990	2	Cap	-
56	AT435237	1	Wiring Harness	IGC
57	W42990	4	Cap	-
58	AN209168	1	Swivel	-
59	H224073	2	Tie Band	-
