Integrated Grade Control Hydraulic Control Valve

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT360635	1	Control Valve	Three Function, (SUB FOR AT339000 AND AT351030)(CA)
1	AT360630	1	Control Valve	4-Function, (SUB FOR AT351028 AND AT333760) (CA)
2	AT341292	1	Valve	Angle
3	AT360631	1	Valve	Tilt, (SUB FOR AT329080 AND AT351012)
4	AT360633	1	Valve	Lift, (SUB FOR AT341293, AT351027
5	AT341993	1	Valve	Inlet
5	AT367550	1	Cap	-
5	AT367551	1	Fitting Plug	-
6	AT360632	1	Valve	Integrated Grade Control Auxiliary, (SUB FOR AT341295 AND AT351029)
7	AT324966	1	Seal Kit	-
8	AT341998	1	Valve	-
9	AT49216	3	Fitting Plug	-
10	R26448	3	O-Ring	-
11	AT341294	1	Valve Spool	-
12	AT341296	1	Valve Spool	-
13	AT335918	1	Pressure Relief Valve	SUB FOR AT341994
14	19M8532	16	Screw	M6 X 35
15	19M8553	16	Screw	M6 X 16
16	AT360624	2	Elec-Hyd Proportional Valve	(SUB FOR AT329088 AND AT351010)
17	AT335927	4	Actuator	-
17	AT355118	1	Seal Kit	-
18	AT335934	1	Bolt And Nut	With 4 Function Control Valve
18	AT329085	1	Bolt And Nut	With 3 Function Control Valve
19	AT335933	1	Spring Assembly	-
20	AT342200	2	Housing	-
21	AT329127	2	Check Valve	-
22	T77932	5	O-Ring	-
23	AT335920	4	Compensator	-
24	51M7045	4	O-Ring	19.300 X 2.200 mm
25	AT360626	2	Elec-Hyd Proportional Valve	(SUB FOR AT329087 AND AT351013)
26	AT335929	1	Valve Spool	-
27	AT335932	3	Spring Assembly	-
28	AT335947	1	Housing	-
29	AT329089	1	Elec-Hyd Proportional Valve	-
30	AT341296	1	Valve Spool	-
31	AT335946	1	Housing	-
32	AT329083	2	Pressure Relief Valve	-
33	AT324969	1	Pressure Relief Valve	SUB FOR AT341997
34	38H1004	1	Elbow Fitting	-
35	T74553	1	O-Ring	-
36	AT335919	1	Hydraulic Pressure Valve	-
37	T77613	4	O-Ring	-
38	38H1030	1	Tee Fitting	-
39	38H1094	1	Elbow Fitting	-
40	AT329086	5	Seal Kit	-
41	38H1160	1	Adapter Fitting	-
42	38H1174	1	Adapter Fitting	-
43	R26906	1	O-Ring	-
44	T77857	1	O-Ring	-
45	38H1180	1	Adapter Fitting	-
46	T76938	1	O-Ring	-
47	U13639	1	O-Ring	-
48	38H1194	1	Adapter Fitting	-
49	R29936	2	O-Ring	-
50	T77858	1	O-Ring	-
51	38H1329	1	Adapter Fitting	-
52	T77932	1	O-Ring	-
53	U12547	1	O-Ring	-
54	R36636	1	Drain Plug	-

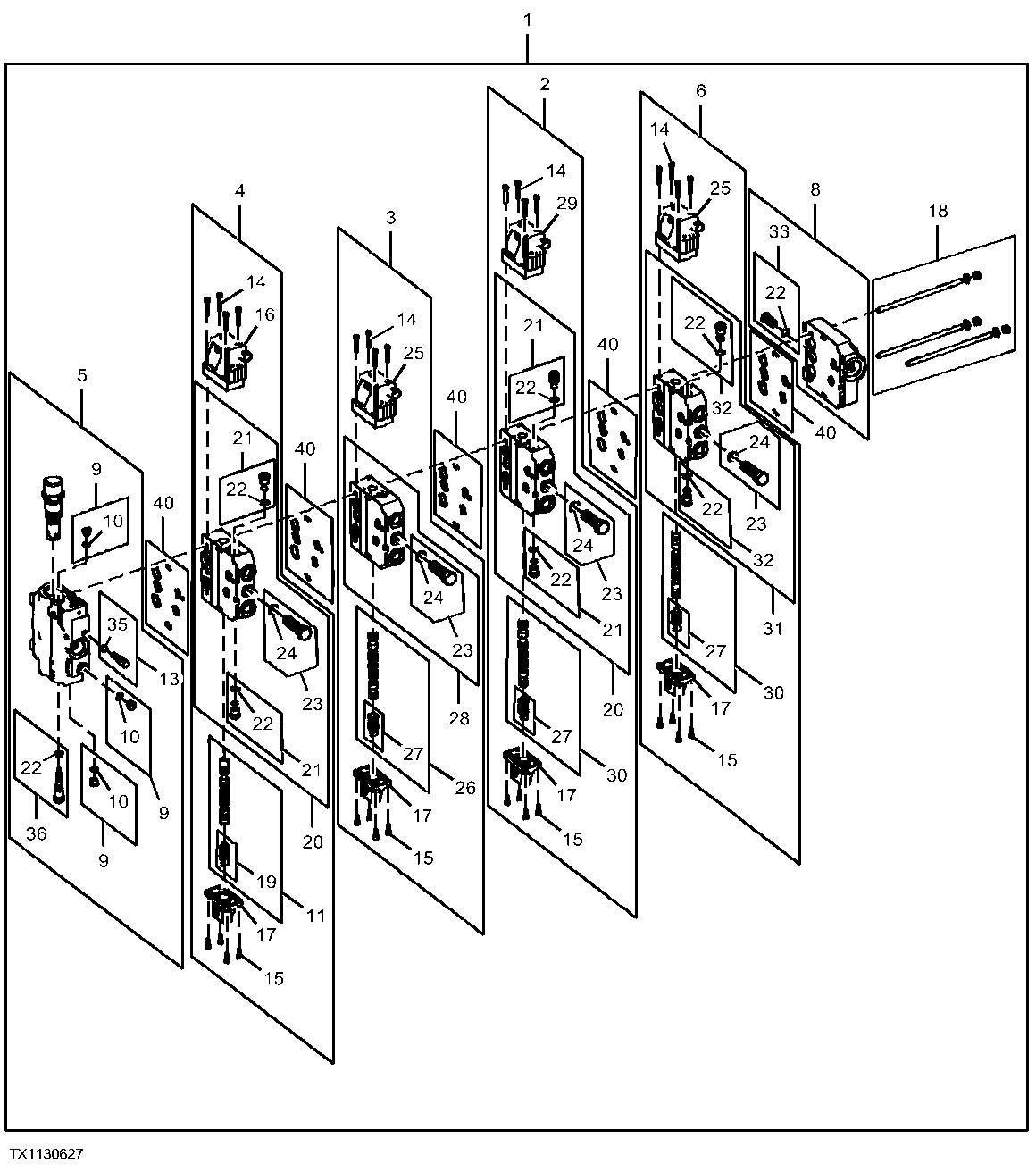

Integrated Grade Control Hydraulic Control Valve
