Hydraulic Control without Auxiliary, without Winch

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT220322	1	Control	-
2	AT211316	1	Control	-
3	AT210265	2	Washer	-
4	AT220759	1	Shaft	-
5	24M7044	1	Washer	13 X 20 X 2 mm
6	M43940	1	Snap Ring	-
7	AT112928	1	Ball Joint	-
8	AT112928	1	Ball Joint	-
9	24M7096	2	Washer	10.500 X 18 X 1.600 mm
10	19H2309	2	Cap Screw	3/8" X 1-1/4"
11	T177506	2	Strap	-
12	M68954	2	Lock Nut	-
13	AT221200	1	Bellcrank	-
14	AA34134	2	Ball Bearing	-
15	AT48548	1	Ball Joint	-
16	R11151	3	Lock Nut	-
17	T177138	1	Eyebolt	-
18	14H882	1	Nut	5/16"
19	AT425334	1	Rod	SUB FOR AT221783
20	T120001	1	Stud	-
21	14H882	2	Nut	5/16"
22	AT48548	1	Ball Joint	-
23	AT48548	1	Ball Joint	-
24	AT223278	1	Handle	-
25	AT56822	1	Ball Joint	ALSO ORDER AT169087 AND 14H774
26	AT56822	1	Ball Joint	ALSO ORDER AT169087 AND 14H774
27	AT56822	1	Ball Joint	ALSO ORDER AT169087 AND 14H774
28	AT399307	1	Control	-
29	AT223375	1	Boot	-
30	T178362	2	Grommet	-
31	M68954	3	Lock Nut	-
32	14H774	3	Nut	3/8"
33	14M7275	1	Nut	M12
34	24M7096	2	Washer	10.500 X 18 X 1.600 mm
35	24M7296	1	Washer	10.500 X 30 X 2.500 mm
36	19M7863	11	Screw	M6 X 25
37	19M8499	1	Cap Screw	M10 X 60
38	24H1646	4	Washer	17/64" X 3/4" X 0.060"
39	T177890	1	Label	-

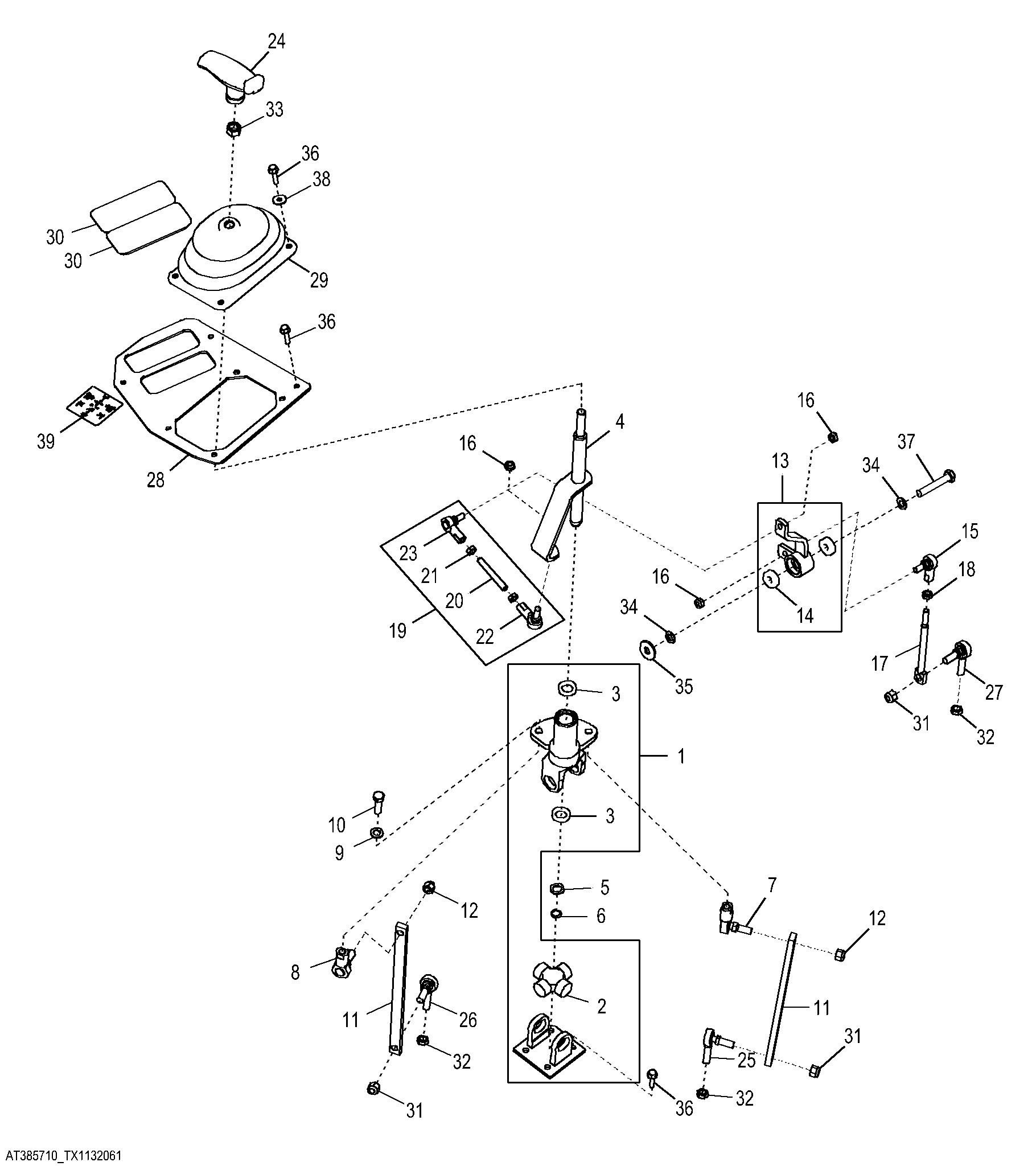

Hydraulic Control without Auxiliary, without Winch

Нет текстового описания
