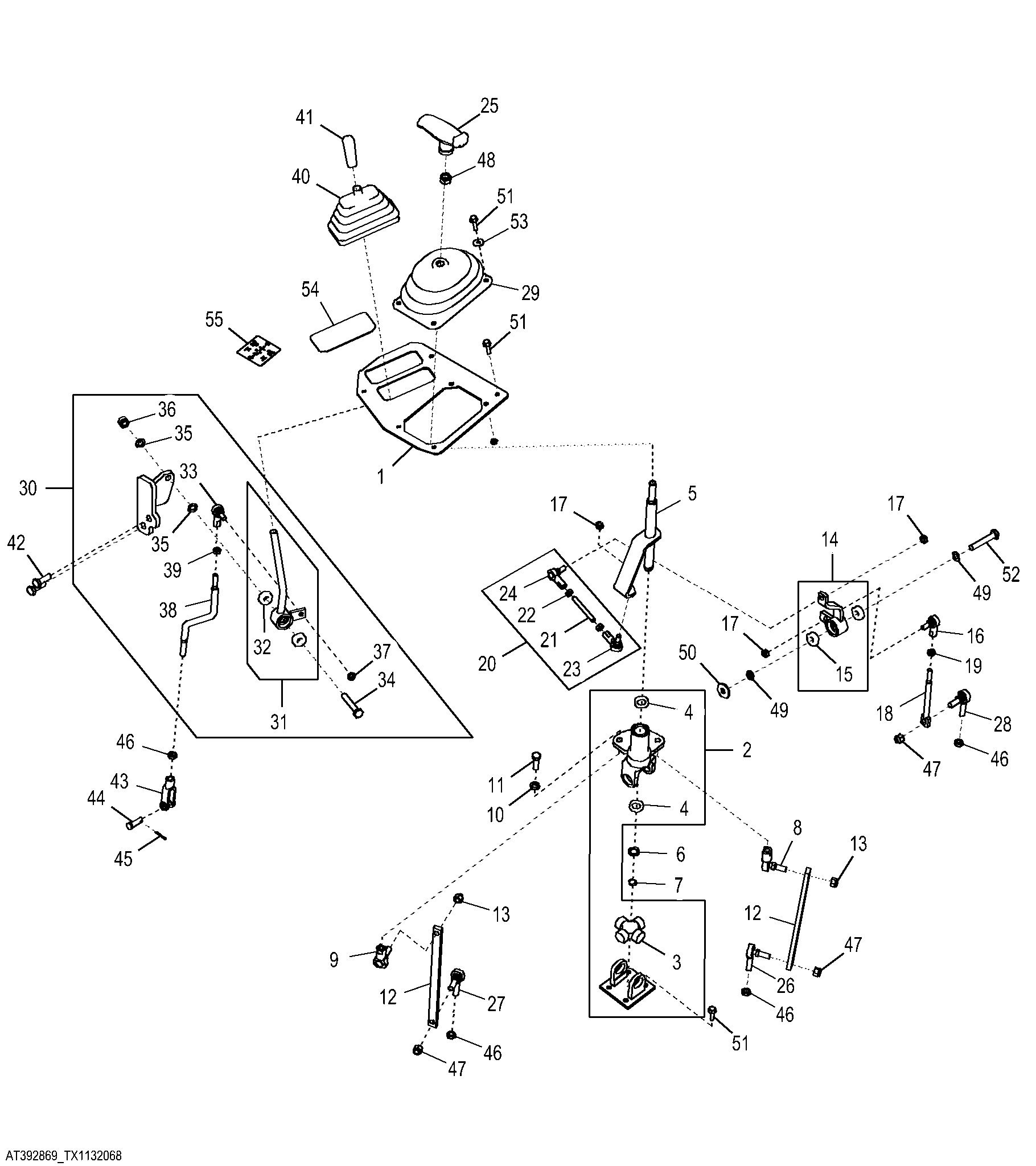

Hydraulic Control with Auxiliary, without Winch

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT399307	1	Control	-
2	AT220322	1	Control	-
3	AT211316	1	Control	-
4	AT210265	2	Washer	-
5	AT220759	1	Shaft	-
6	24M7044	1	Washer	13 X 20 X 2 mm
7	M43940	1	Snap Ring	-
8	AT112928	1	Ball Joint	-
9	AT112928	1	Ball Joint	-
10	24M7096	2	Washer	10.500 X 18 X 1.600 mm
11	19H2309	2	Cap Screw	3/8" X 1-1/4"
12	T177506	2	Strap	-
13	M68954	2	Lock Nut	-
14	AT221200	1	Bellcrank	-
15	AA34134	2	Ball Bearing	-
16	AT48548	1	Ball Joint	-
17	R11151	3	Lock Nut	-
18	T177138	1	Eyebolt	-
19	14H882	1	Nut	5/16"
20	AT425334	1	Rod	SUB FOR AT221783
21	T120001	1	Stud	-
22	14H882	2	Nut	5/16"
23	AT48548	1	Ball Joint	-
24	AT48548	1	Ball Joint	-
25	AT223278	1	Handle	-
26	AT56822	1	Ball Joint	ALSO ORDER AT169087 AND 14H774
27	AT56822	1	Ball Joint	ALSO ORDER AT169087 AND 14H774
28	AT56822	1	Ball Joint	ALSO ORDER AT169087 AND 14H774
29	AT223375	1	Boot	-
30	AT399784	1	Control	-
31	AT211021	1	Control	-
32	AA34134	2	Ball Bearing	-
33	AT48548	1	Ball Joint	-
34	19M8499	1	Cap Screw	M10 X 60
35	24M7096	2	Washer	10.500 X 18 X 1.600 mm
36	14M7517	1	Lock Nut	M10
37	R11151	1	Lock Nut	-
38	-	1	Part 38	NLA
39	14H882	1	Nut	5/16"
40	AT140287	1	Boot	-
41	T71570	1	Grip	-
42	19M7662	2	Cap Screw	M10 X 30
43	M80373	1	Yoke	-
44	R65563	1	Pin Fastener	-
45	11M7081	1	Cotter Pin	2.500 X 20 mm
46	14H774	4	Nut	3/8"
47	M68954	3	Lock Nut	-
48	14M7275	1	Nut	M12
49	24M7096	2	Washer	10.500 X 18 X 1.600 mm
50	24M7296	1	Washer	10.500 X 30 X 2.500 mm
51	19M7863	11	Screw	M6 X 25
52	19M8499	1	Cap Screw	M10 X 60
53	24H1646	4	Washer	17/64" X 3/4" X 0.060"
54	T178362	1	Grommet	-
55	T177890	1	Label	-

Hydraulic Control with Auxiliary, without Winch
