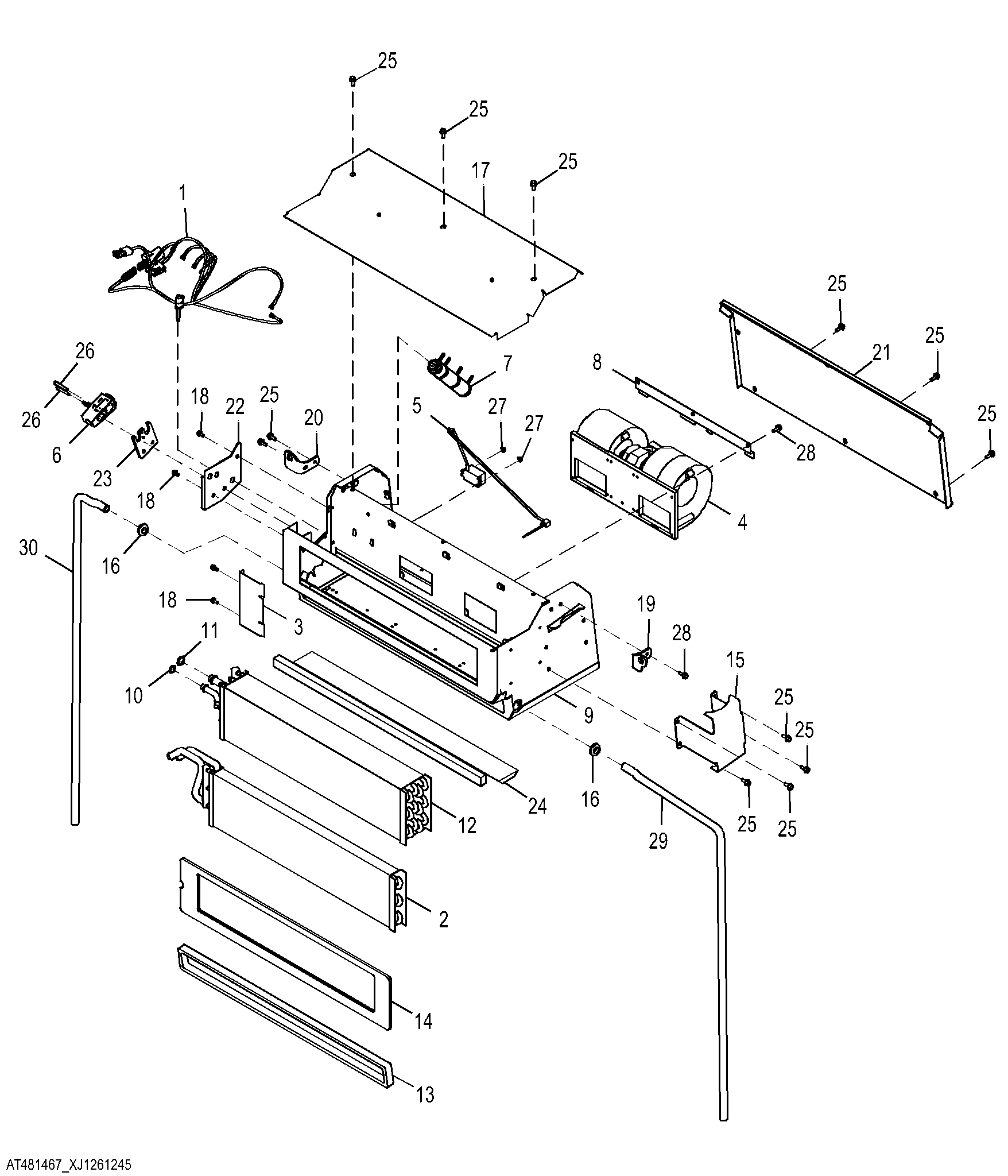

Air Conditioning Heater Components (323719 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT387324	1	Wiring Harness	Heater and Air Conditioner
2	AT207849	1	Core	Heater
3	AT221266	1	Cover	Top
4	AT387317	1	Blower Fan	24 V
5	AT502808	1	Thermostat Kit	Air Conditioner Freeze Switch, INCLUDES T276131, 21H1475, AT502858 AND AT439838; SUB FOR AT433044
5	T276131	1	Grommet	-
5	21H1475	1	Screw	1/4" X 1/2"
5	AT502858	1	Wiring Harness	-
5	AT439838	1	Thermostat	-
6	AT469774	1	Valve	Thermostatic Expansion
7	AT221337	1	Resistor	Blower Motor Speed Resistor 24 V
8	AT387529	1	Bracket	-
9	AT387621	1	Housing	HVAC
10	T356706	1	Sealing Washer	-
11	T356708	1	Sealing Washer	-
12	AT481463	1	Core	Evaporator
13	T258162	1	Isolator	-
14	T247345	1	Isolator	-
15	T177228	1	Bracket	-
16	P41858	2	Grommet	-
17	AT442335	1	Cover	Top
18	19M9902	4	Screw	M5 X 12
19	T267717	1	Bracket	-
20	T267716	1	Bracket	-
21	AT221268	1	Cover	Back
22	AT221317	1	Plate	-
23	T400341	1	Plate	-
24	AT224721	1	Gasket Kit	-
25	19M7775	18	Screw	M6 X 16
26	19M8669	2	Screw	M5 X 35
27	14M7375	2	Flange Nut	M5
28	19M7775	2	Screw	M6 X 16
29	-	1	Part 33	MAKE FROM T305780, CTL 1056.64 mm (41.6 in.)
30	-	1	Part 34	MAKE FROM T305780, CTL 1501.14 mm (59.1 in.)

Air Conditioning Heater Components (323719 - )
