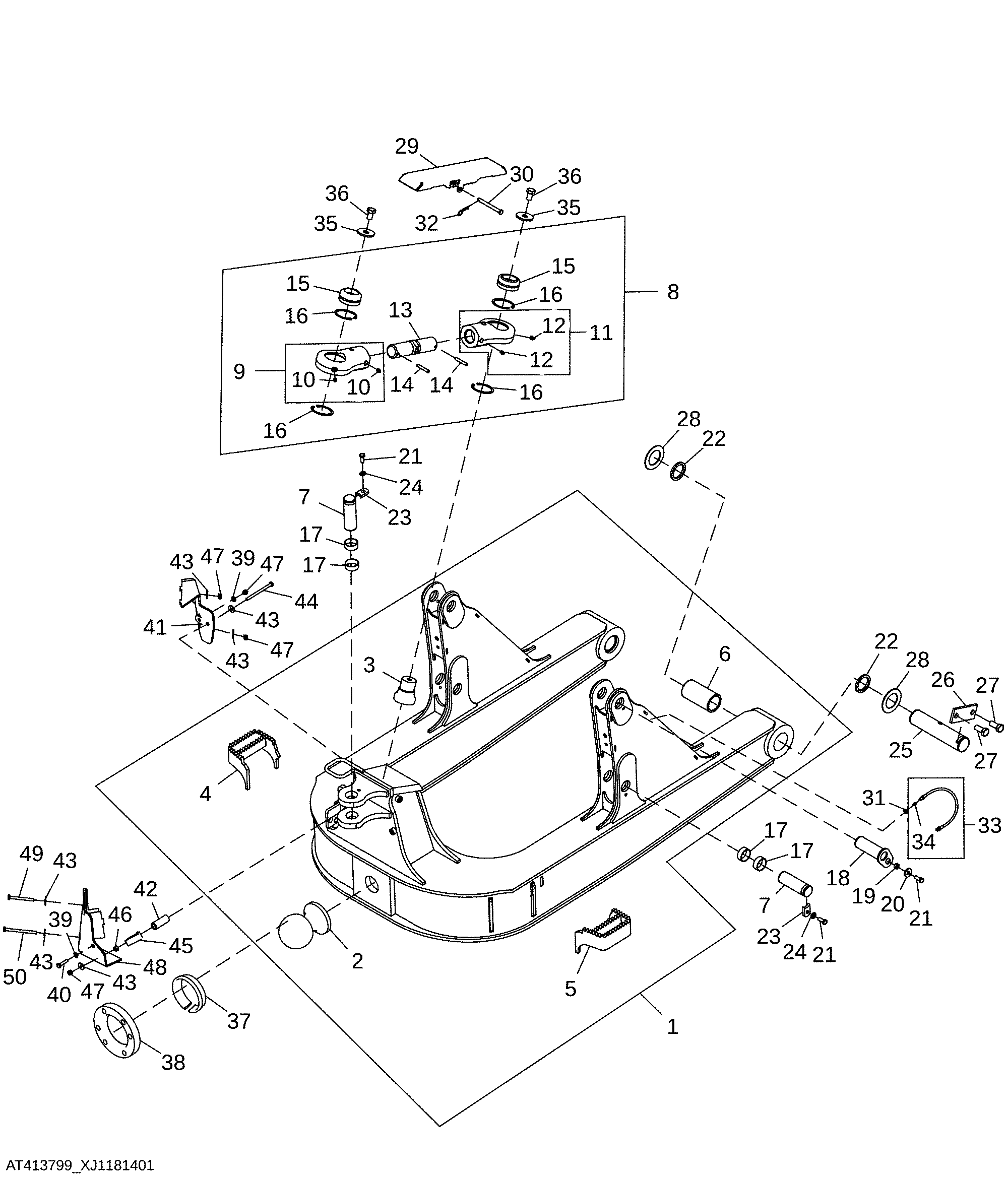

C - Frame, Low Ground Pressure ( - 291536)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT413798	1	Frame	Convenience Assembly
2	T179350	1	Ball	Pivot
3	T208700	1	Pin Fastener	-
4	AT360970	1	Step	Convenience Assembly RH
5	AT360969	1	Step	Convenience Assembly LH
6	T177029	2	Bushing	-
7	T176360	3	Pin	-
8	AT377794	1	Link	Pitch Link, SUB FOR AT308735
9	AT308736	1	Link End	RH, SUB FOR AT377795
10	JD7759	2	Lubrication Fitting	-
11	AT308737	1	Link End	LH, SUB FOR AT377791
12	JD7759	2	Lubrication Fitting	-
13	T176696	1	Turnbuckle	-
14	34M7073	2	Spring Pin	10 X 65 mm
15	AT128774	2	Self-Aligning Bushing	-
16	40M1873	4	Snap Ring	-
17	T176988	6	Bushing	-
18	AT221145	2	Pin	Lift Cylinders
19	28H3418	2	Washer	0.546" X 0.840" X 5/16"
20	24H1351	2	Washer	9/16" X 1-1/2" X 0.164"
21	19M8011	5	Cap Screw	M12 X 30
22	T102136	4	Seal	Pin
23	T177000	3	Strap	Flag Pin
24	24M7240	3	Washer	13 X 25 X 3 mm
25	T177030	2	Pin	C - Frame
26	T177028	2	Strap	C - Frame Flag Pin
27	19M7950	4	Cap Screw	M20 X 45
28	T102171	4	Washer	-
29	T178166	1	Cover	Pitch Link, SUB FOR T267578
30	M117096	1	Pin Fastener	-
31	E12379	2	Nut	-
32	T177673	1	Spring Locking Pin	-
33	AT173254	2	Hydraulic Hose	-
34	JD7797	1	Lubrication Fitting	-
35	T101172	2	Washer	-
36	19M8543	2	Cap Screw	M20 X 30
37	T231116	1	Retainer	-
38	T410262	1	Retainer	-
38	T231115	1	Retainer	ORDER T410262
39	24M7239	2	Washer	10.700 X 21 X 2.500 mm
40	19M7572	1	Cap Screw	M10 X 45
41	AT222540	1	Hose Guard	-
42	T151427	1	Bushing	-
43	24M7296	6	Washer	10.500 X 30 X 2.500 mm
44	19M8003	1	Cap Screw	M10 X 140
45	T118385	1	Clamp	-
46	14M7296	1	Flange Nut	M10
47	14M7517	4	Lock Nut	M10
48	AT222541	1	Hose Guard	-
49	19M8093	1	Cap Screw	M10 X 100
50	19M7638	1	Cap Screw	M10 X 130

C - Frame, Low Ground Pressure ( - 291536)
