Открытый узел

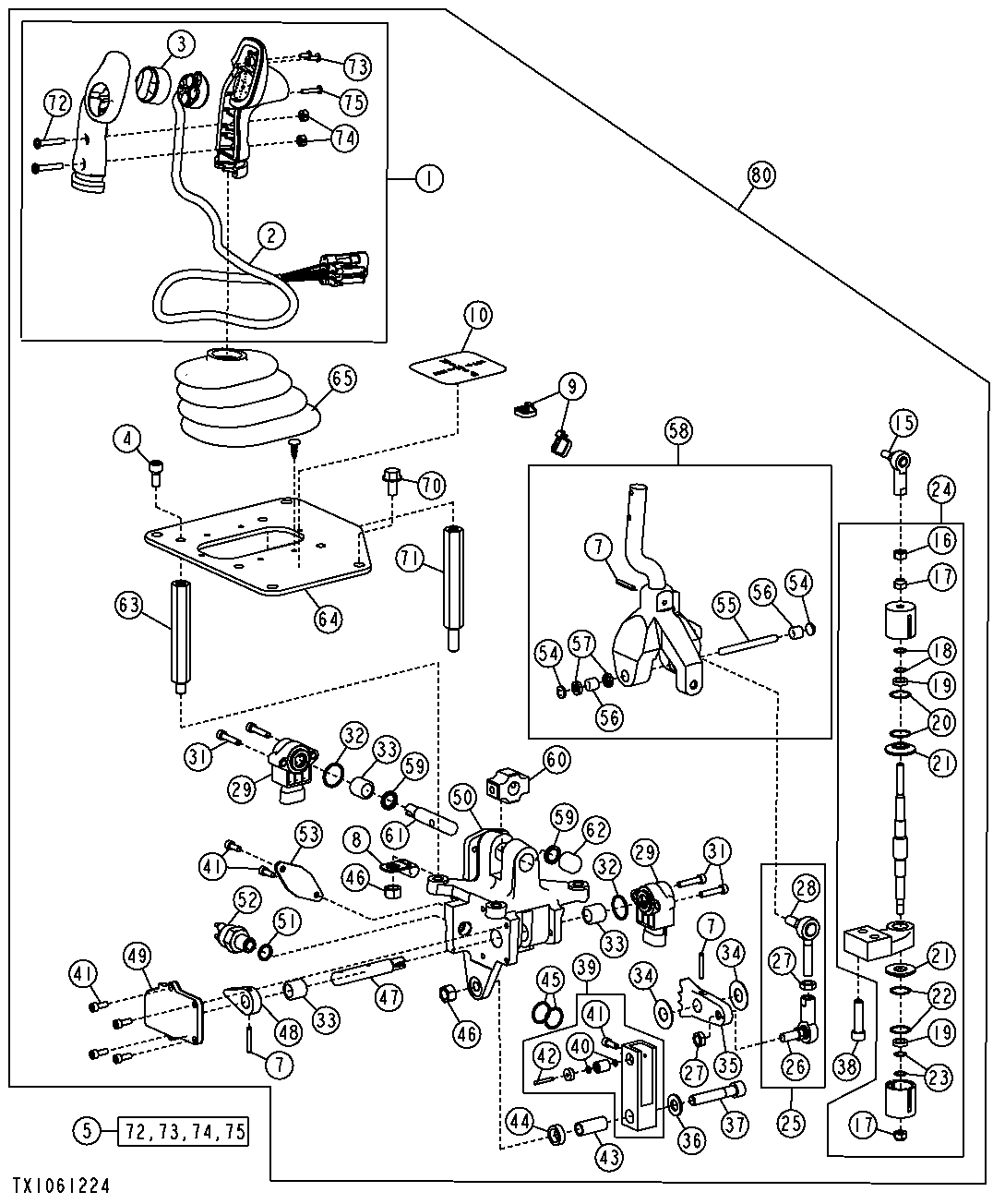

TRANSMISSION / HYDROSTATIC CONTROL LEVER

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT219793	1	Grip	-
2	AT222609	1	Wiring Harness	(WIRING HARNESS WITH SWITCH AND COVER)
3	T178768	1	Boot	(SWITCH BOOT)
4	T176136	4	Bolt	-
5	AT222608	1	Handle Kit	(GRIP FASTENER HARDWARE KIT)
7	34H266	3	Spring Pin	5/32" X 1"
8	AT222606	1	Clamp	-
9	R44302	1	Tie Band	-
10	T204071	1	Label	(FORWARD, NEUTRAL AND REVERSE LABEL)
15	AT169374	1	Ball Joint	(BEARING)
16	14H860	1	Nut	1/4"
17	T30637	2	Nut	(LOCK)
18	T176172	1	Spring	-
19	T176169	2	Spacer	-
20	T176173	1	Spring	-
21	T176168	2	Washer	(STEPPED WASHER)
22	T176170	1	Spring	-
23	T176171	1	Spring	-
24	AT220709	1	Spring Assembly	(PACK)
25	AT220706	1	Linkage	(ROD END ASSEMBLY)
26	AT48548	1	Ball Joint	-
27	14H882	2	Nut	5/16"
28	AT46597	1	Ball Joint	-
29	AT220879	2	Potentiometer	(ROTARY SENSOR)
31	T176137	4	Screw	-
32	U15980	2	O-Ring	-
33	AT220702	3	Bearing	(NEEDLE)
34	T176149	2	Washer	(DETENT SPACER)
35	T176150	1	Plate	(DETENT)
36	T177605	1	Washer	-
37	T177604	1	Screw	-
38	M882T	2	Screw	7.925 X 31.750 mm (5/16" X 1-1/4")
39	AT220708	1	Lever	(DETENT ASSEMBLY)
40	T26257	2	O-Ring	-
41	T176152	7	Screw	-
42	R39090	1	Needle Roller	(BEARING)
43	T177602	1	Spacer	-
44	T177603	1	Spacer	-
45	T176154	1	Spring	-
46	14H1076	2	Nut	3/8"
47	T176147	1	Cam	(SHAFT DETENT)
48	T176148	1	Cam	(CAM NEUTRAL SWITCH)
49	AT220707	1	Cover	(CAM ASSEMBLY)
50	AT221854	1	Housing	(SLC BODY)
51	R26448	1	O-Ring	-
52	AT86950	1	Switch	(NEUTRAL START)
53	T176155	1	Plate	(SPRING)
54	T176146	2	Plug	(SEAL)
55	T176145	1	Universal Driveshaft	(SHAFT)
56	AT220711	2	Bearing	(NEEDLE)
57	AT220710	2	Seal	(LIP)
58	AT222803	1	Bracket	-
59	AT220704	2	Seal	(LIP)
60	T176143	1	Spacer	(BLOCK BEARING)
61	T176144	1	Universal Driveshaft	(SHAFT)
62	AT220703	1	Bearing	(NEEDLE)
63	T176158	3	Post	(MOUNTING)
64	-	1	Part 58	(MOUNTING)
65	AT220855	1	Boot	(ASSEMBLY)
70	19M7897	4	Screw	M8 X 35
71	T178767	1	Post	-
72	-	2	Part 62	-
73	-	2	Part 63	-
74	-	2	Part 64	-
75	-	1	Part 65	-
80	AT304326	1	Steering Controller	(TRANSMISSION/HYDROSTATIC CONTROL LEVER) (CONVENIENCE ASSEMBLY)

TRANSMISSION / HYDROSTATIC CONTROL LEVER

Нет текстового описания
