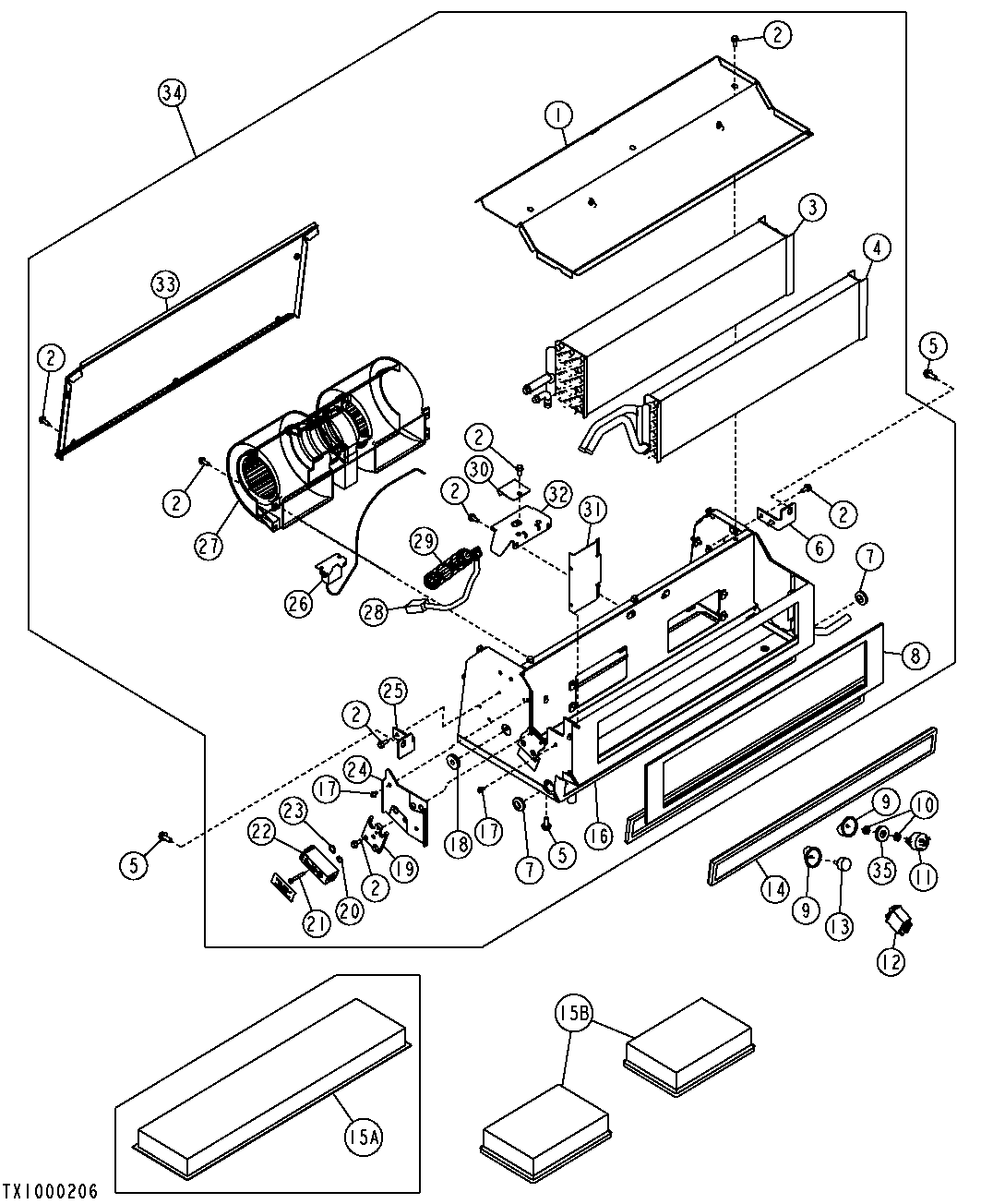

CAB HEATER (UPPER) (SERIAL NO. -118110)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT221267	1	Cover	(TOP)
2	19M7775	34	Screw	M6 X 16
3	AT207848	1	Core	(EVAPORATOR)
4	AT207849	1	Core	(HEATER)
5	19M7866	10	Screw	M8 X 20
6	T177172	1	Bracket	(TIE DOWN)
7	P41858	2	Grommet	-
8	AT221263	1	Gasket Kit	-
9	AT220817	2	Knob	(SWITCH)
10	E46066	2	Nut	(JAM)
11	RE43497	1	Switch	BLOWER
12	AT303864	1	Toggle/Rocker Switch	(ON/OFF) (IN DASH)
13	AT219733	1	Temperature Switch	-
14	AT315957	1	Filter Element	(SUB FOR <service-part qty="1">AT221265</service-part>)(RECIRCULATION) (INSIDE, ABOVE REAR WINDOW)
16	AT224719	1	Housing	-
16	AT224721	1	Gasket Kit	(NOT ILLUSTRATED) (UPPER HEATER DRAIN PAN FOAM)
17	19M8870	4	Screw	M5 X 8
18	R26936	1	Grommet	-
19	T158127	1	Plate	(MOUNT)
20	R113050	1	O-Ring	-
21	19M8669	2	Screw	M5 X 35
22	RE57575	1	Valve	(THERMAL EXPANSION)
23	R33259	1	O-Ring	-
24	AT221317	1	Plate	(CUTOUT)
25	T177171	1	Bracket	(RIGHT TIE DOWN)
26	RE198074	1	Temperature Switch	(SWITCH FREEZE CONTROL)
26	AT222736	1	Resistor	NOT ILLUSTRATED WATER VALVE RESISTOR
27	AT221322	1	Blower Fan	(HEATER)
28	AT223253	1	Wiring Harness	-
29	AT221337	1	Resistor	-
30	T177168	1	Plate	(RETAINER MOTOR SUPPORT)
31	AT221266	1	Cover	(HEATER MOTOR)
32	AT221279	1	Bracket	-
33	AT221268	1	Cover	(AIR CONDITIONER BACK)
34	AT224734	1	Heater	(UPPER)
35	24H1272	1	Washer	9/16" X 1-1/4" X 1/4"
15A	AT315958	1	Air Filter	(SUB FOR <service-part qty="1">AT222256</service-part>)(FRESH AIR FILTER) (CONTACT GR MANUFACTURING IF YOU HAVE AN ENVIRONMENTAL CAB)
15B	-	2	Part 16	NOT USED THIS APPL
