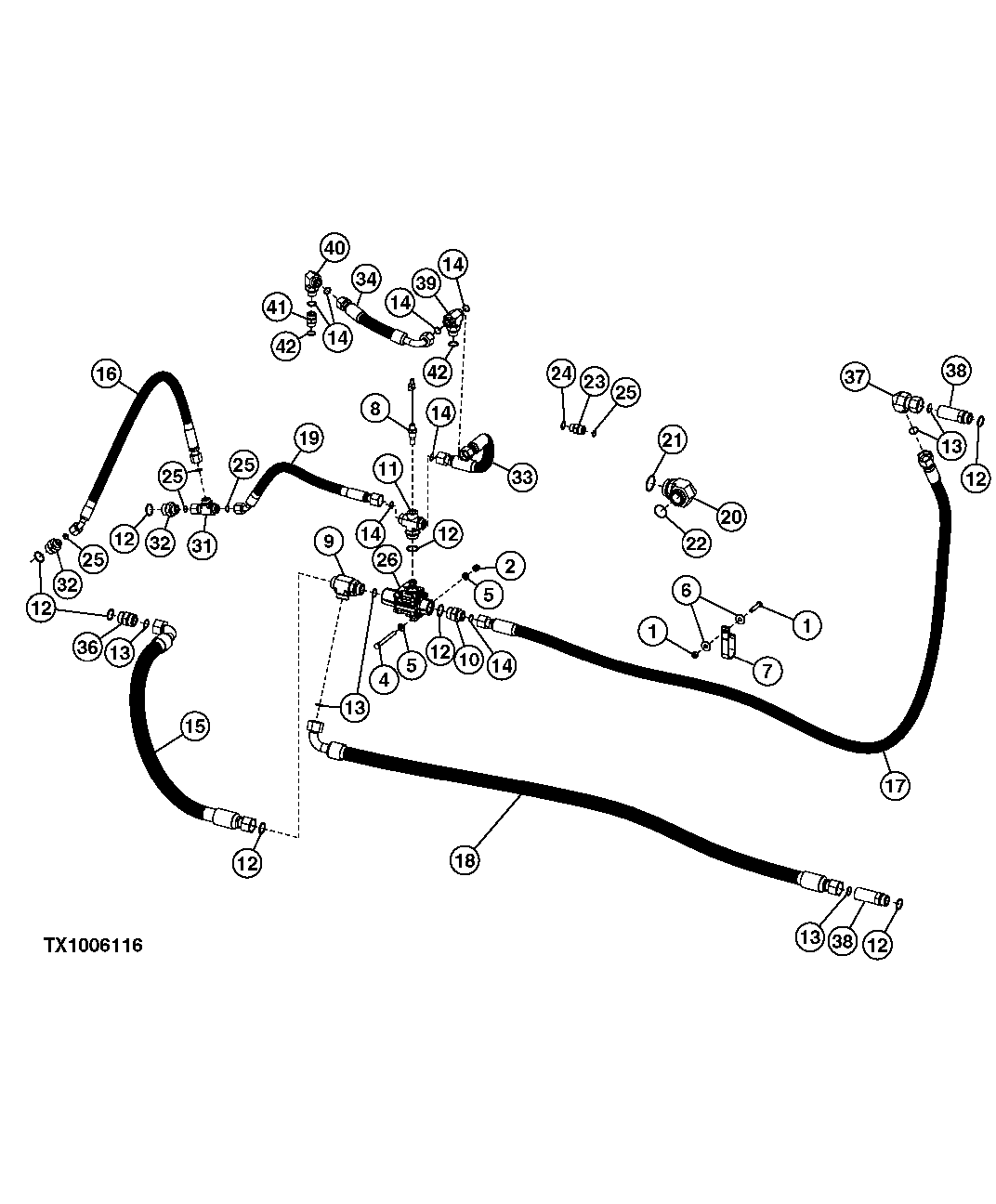

TRANSMISSION COOLER BYPASS PLUMBING (SER. NO. 908630- )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7274	1	Nut	M10
2	14M7517	2	Lock Nut	M10
3	19M7572	1	Cap Screw	M10 X 45
4	19M8093	2	Cap Screw	M10 X 100
5	24M7239	4	Washer	10.700 X 21 X 2.500 mm
6	24M7296	2	Washer	10.500 X 30 X 2.500 mm
7	AT136909	1	Clamp	-
8	AT186410	1	Switch	-
8	RE48419	1	Sensor	-
9	38H1027	1	Tee Fitting	-
10	38H1194	1	Adapter Fitting	-
11	AT223739	1	Fitting	-
11	AT220858	1	Tee Fitting	-
12	R29936	8	O-Ring	-
13	T76938	6	O-Ring	-
14	T77858	7	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
15	AT211239	1	Hydraulic Hose	36.5252" X 959 mm (37-3/4") X 36.5252"
16	AT211255	1	Hydraulic Hose	-
17	AT220277	1	Hydraulic Hose	-
18	AT220278	1	Hydraulic Hose	-
19	AT220279	1	Hydraulic Hose	-
20	38H1101	1	Elbow Fitting	-
21	R26773	1	O-Ring	-
22	T78784	1	O-Ring	-
23	38H1162	1	Adapter Fitting	-
24	R26906	1	O-Ring	-
24	T58477	1	Fitting	-
25	T77932	5	O-Ring	-
26	AT223937	1	Flow Control Hyd. Valve	(OIL COOLER THERMAL BYPASS VALVE) (CONTAINS SPRING, NOT SERVICED SEPARATELY)
26	AT220846	1	Valve Kit	(DOES NOT INCLUDE SPRING)
27	19H2336	4	Cap Screw	1/4" X 3-1/2", (NOT ILLUSTRATED)
29	M40333	4	Lock Nut	(NOT ILLUSTRATED)
30	T102419	2	O-Ring	53.696 X 1.778 mm (2.114" X 0.070"), (NOT ILLUSTRATED)
31	38H1032	1	Tee Fitting	-
32	38H1447	2	Adapter Fitting	-
33	AT225122	1	Hydraulic Hose	-
34	AT225123	1	Hydraulic Hose	-
35	R44302	1	Tie Band	(NOT ILLUSTRATED)
36	38H1164	1	Adapter Fitting	-
37	38H1098	1	Elbow Fitting	-
38	38H1216	2	Adapter Fitting	-
39	38H1019	1	Tee Fitting	-
40	38H1097	1	Elbow Fitting	-
41	38H1163	1	Adapter Fitting	-
42	U12547	2	O-Ring	-

TRANSMISSION COOLER BYPASS PLUMBING (SER. NO. 908630- )
