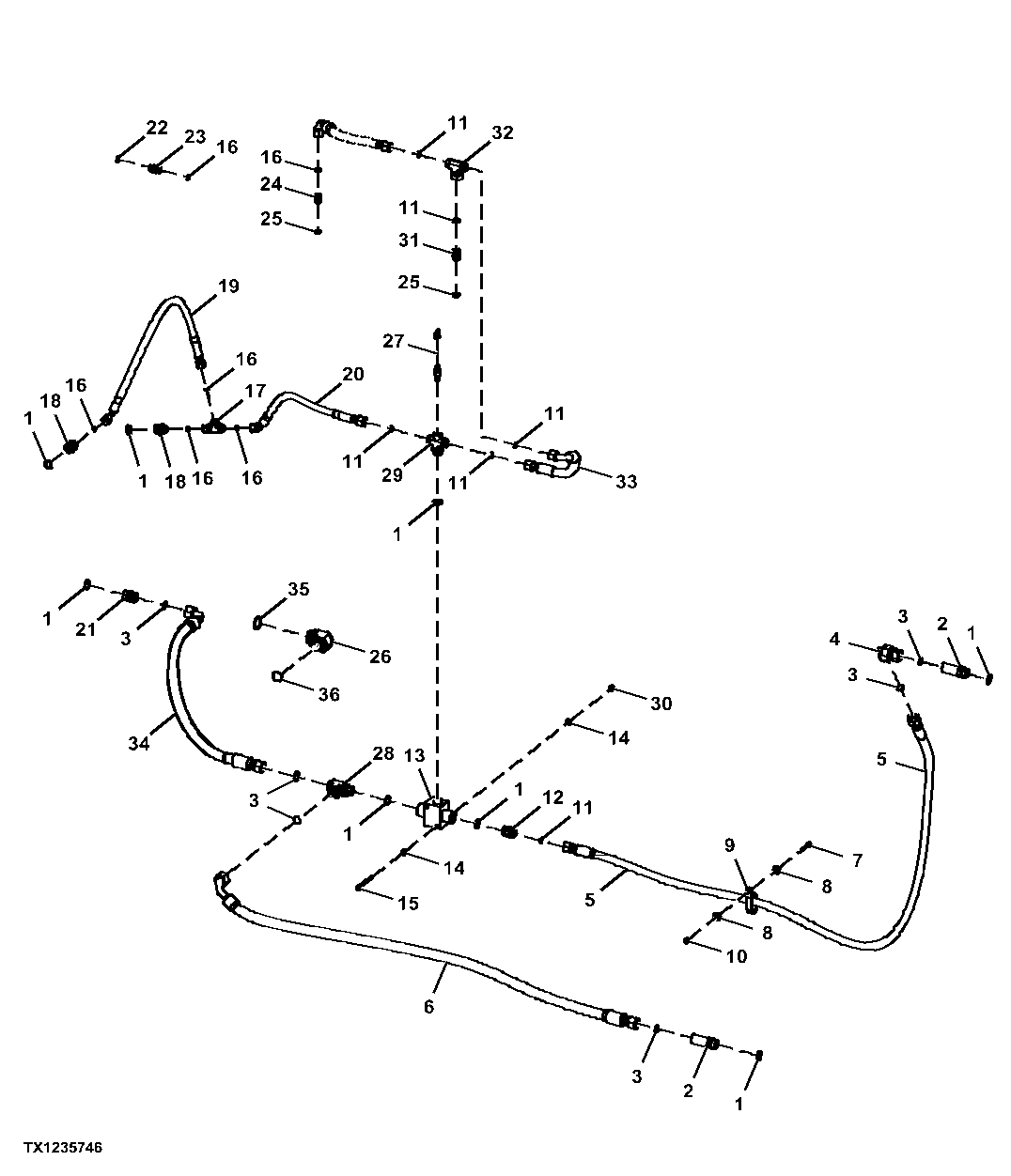

TRANSMISSION COOLER BYPASS PLUMBING(SER. NO. -908629)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R29936	10	O-Ring	-
2	38H1216	2	Adapter Fitting	-
3	T76938	6	O-Ring	-
4	38H1098	1	Elbow Fitting	-
5	AT220277	1	Hydraulic Hose	-
6	AT220278	1	Hydraulic Hose	-
7	19M7572	1	Cap Screw	M10 X 45
8	24M7296	2	Washer	10.500 X 30 X 2.500 mm
9	AT136909	1	Clamp	-
10	14M7274	1	Nut	M10
11	T77858	6	O-Ring	-
12	38H1194	1	Adapter Fitting	-
13	AT223937	1	Flow Control Hyd. Valve	(INCLUDES 19H2336, T102419, M40333 AND AT220846)(COOLER BYPASS VALVE) (CONTAINS SPRING, NOT SERVICED SEPARATELY)
13	19H2336	4	Cap Screw	1/4" X 3-1/2"
13	T102419	2	O-Ring	-
13	M40333	4	Lock Nut	-
13	AT220846	1	Valve Kit	(DOES NOT INCLUDE SPRING)
14	24M7239	4	Washer	10.700 X 21 X 2.500 mm
15	19M8093	2	Cap Screw	M10 X 100
16	T77932	6	O-Ring	-
17	38H1032	1	Tee Fitting	-
18	38H1447	2	Adapter Fitting	-
19	AT211255	1	Hydraulic Hose	-
20	AT220279	1	Hydraulic Hose	-
21	38H1164	1	Adapter Fitting	-
22	R26906	1	O-Ring	-
22	T58477	1	Fitting	-
23	38H1162	1	Adapter Fitting	-
24	38H1329	1	Adapter Fitting	-
25	U12547	2	O-Ring	-
26	38H1101	1	Elbow Fitting	-
27	AT186410	1	Switch	-
28	38H1027	1	Tee Fitting	-
29	AT220858	1	Tee Fitting	-
30	14M7517	2	Lock Nut	M10
31	38H1163	1	Adapter Fitting	-
32	38H1041	1	Tee Fitting	-
33	AT207365	1	Hydraulic Hose	-
34	AT211239	1	Hydraulic Hose	-
35	R26773	1	O-Ring	-
36	T78784	1	O-Ring	-

TRANSMISSION COOLER BYPASS PLUMBING(SER. NO. -908629)
