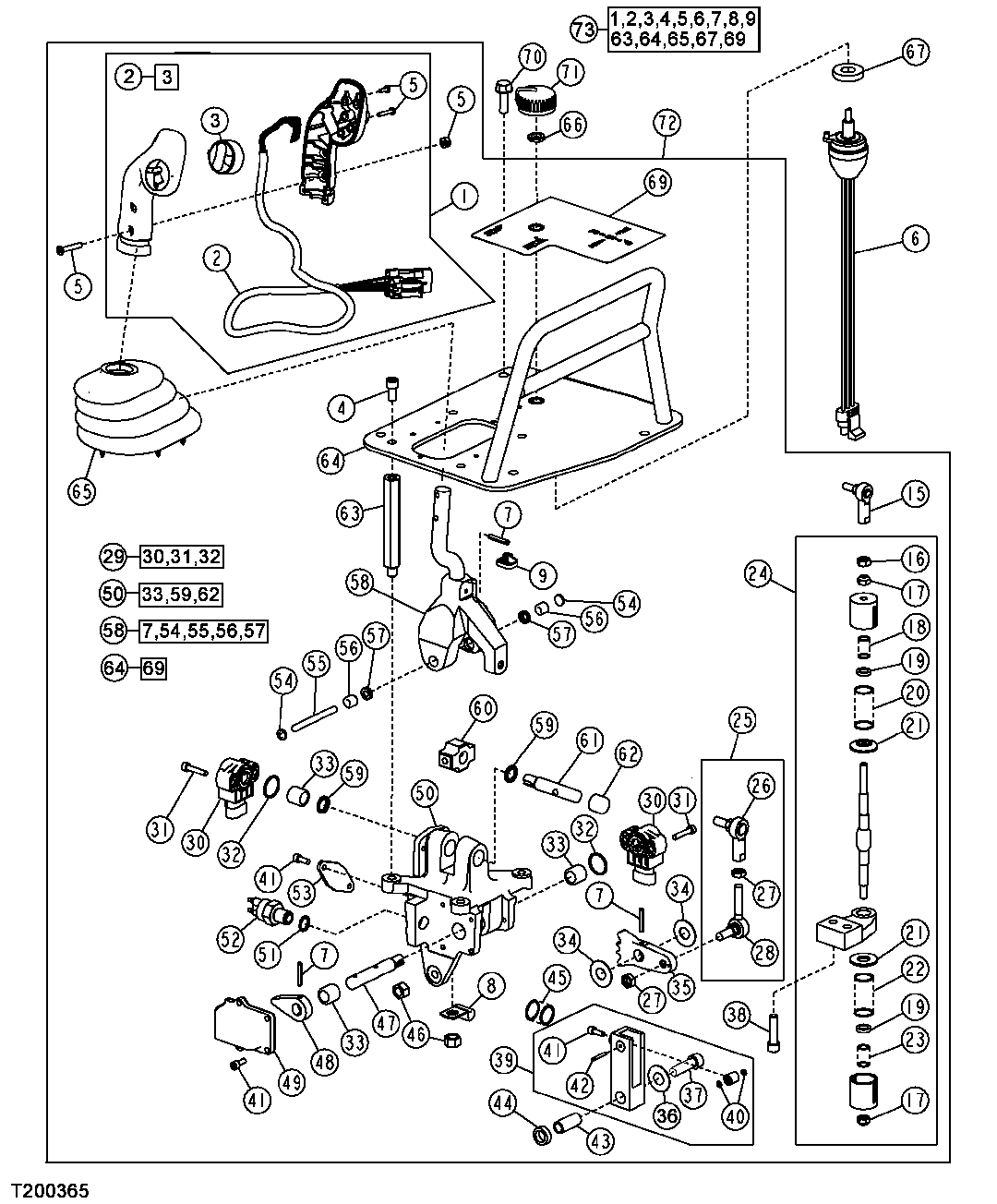

SINGLE LEVER CONTROL WITH SPEED IN GRIP (CONTINUED)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
38	T176157	2	Screw	-
39	AT220708	1	Lever	(DETENT ASSEMBLY)
40	T26257	2	O-Ring	-
41	T176152	7	Screw	-
42	R39090	1	Needle Roller	(BEARING)
43	T177602	1	Spacer	-
44	T177603	1	Spacer	-
45	T176154	1	Spring	-
46	14H1076	2	Nut	3/8"
47	T176147	1	Cam	(SHAFT DETENT)
48	T176148	1	Cam	(CAM NEUTRAL SWITCH)
49	AT220707	1	Cover	(CAM ASSEMBLY)
50	AT221854	1	Housing	(SLC BODY)
51	R26448	1	O-Ring	-
52	AT86950	1	Switch	(NEUTRAL START)
53	T176155	1	Plate	(SPRING)
54	T176146	2	Plug	(SEAL)
55	T176145	1	Universal Driveshaft	(SHAFT)
56	AT220711	2	Bearing	(NEEDLE)
57	AT220710	2	Seal	(LIP)
58	AT222803	1	Bracket	-
59	AT220704	2	Seal	(LIP)
60	T176143	1	Spacer	(BLOCK BEARING)
61	T176144	1	Universal Driveshaft	(SHAFT)
62	AT220703	1	Bearing	(NEEDLE)
63	T178767	1	Post	-
63	T176158	3	Post	(MOUNTING)
64	AT221383	1	Plate	(MOUNTING)
65	AT220855	1	Boot	(ASSY)
66	R44165	1	Lock Nut	-
67	24H1272	1	Washer	9/16" X 1-1/4" X 1/4"
69	AT222500	1	Label	(FORWARD, NEUTRAL AND REVERSE)
70	19M7867	4	Screw	M8 X 25
71	R111632	1	Knob	(SWITCH COVER)
72	AT219790	1	Transmission Controller	(CONVENIENCE ASSEMBLY)

SINGLE LEVER CONTROL WITH SPEED IN GRIP (CONTINUED)
