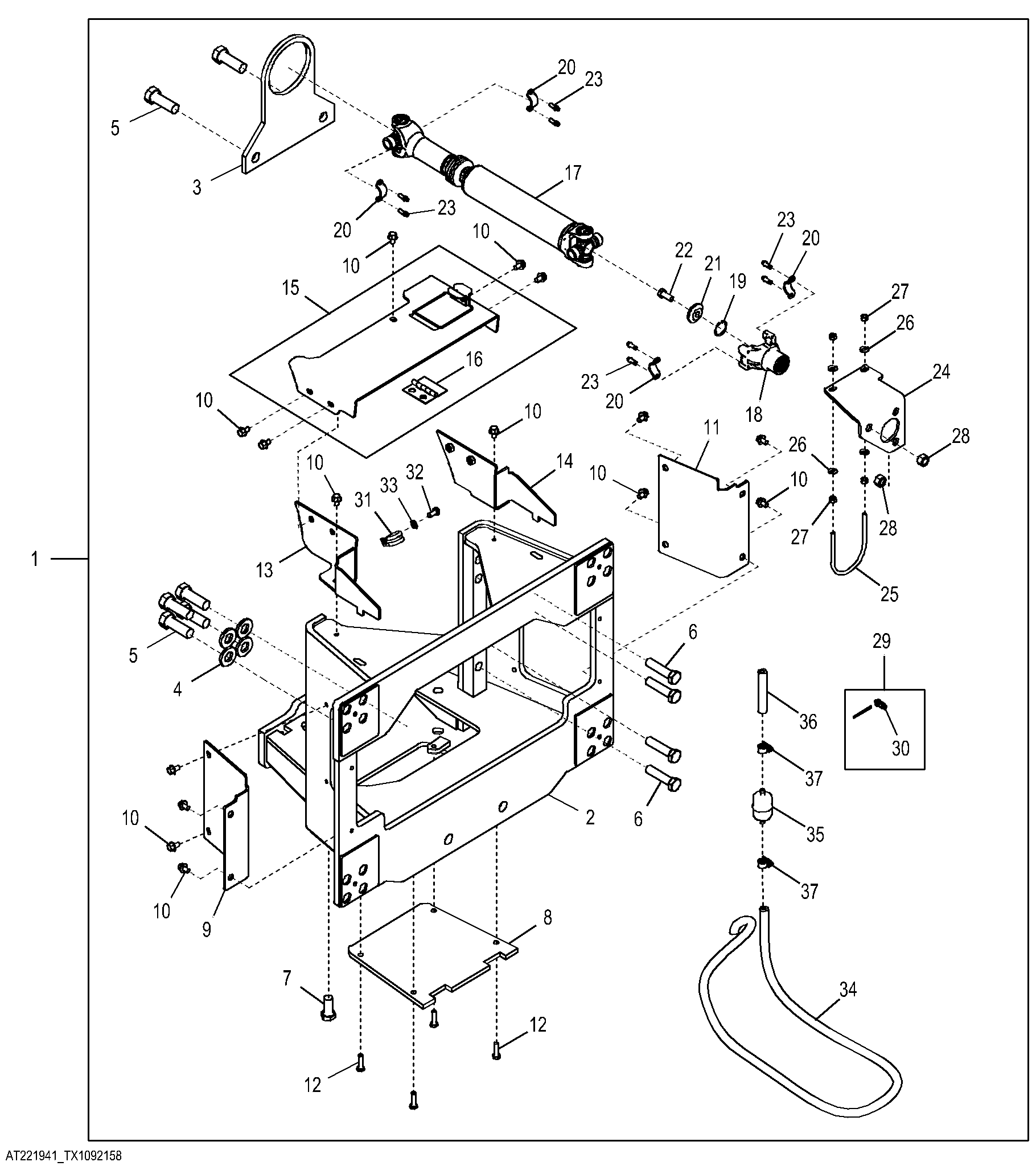

Mounting Bracket And Hardware (700J Series Crawler)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT221941	1	Bracket Kit	Mounting Bracket Whole Goods
2	AT222133	1	Bracket	-
3	T177837	1	Plate	-
4	24M7243	16	Washer	25.400 X 50 X 6 mm
5	19M8346	20	Cap Screw	M24 X 70
6	19M7892	8	Cap Screw	M20 X 80
7	19M7950	2	Cap Screw	M20 X 45
8	T177793	1	Plate	Sump Guard Cover
9	T177836	1	Cover	Right Cover
10	19M7783	15	Screw	M10 X 16
11	T177851	1	Cover	Left Cover
12	19M7550	4	Cap Screw	M10 X 35
13	AT222136	1	Cover	Upper Right Side
14	AT222137	1	Cover	Upper Left Side
15	AT222134	1	Cover	Valve Cover
16	AT209110	1	Hinge	-
17	T185660	1	Clamp	-
17	T185658	1	Clamp	-
17	T185657	1	Boot	-
17	AT397345	1	Universal Joint	-
17	AT191821	1	Universal Driveshaft	-
17	N119316	4	Snap Ring	-
18	T185656	1	Universal Joint Yoke	-
19	M41029	1	Snap Ring	-
20	T69938	4	Half Clamp	-
21	T163182	1	Spacer	-
22	19M8011	1	Cap Screw	M12 X 30
23	T113128	8	Screw	-
24	T164218	1	Bracket	-
25	T36393	1	U-Bolt	-
26	24H1305	4	Washer	13/32" X 13/16" X 0.065"
27	14H1076	4	Nut	3/8"
28	14H1039	4	Nut	5/8"
29	AT228732	1	Warning Light Kit	Winch Oil Pressure
30	AT228722	1	Indicator Lamp	24 V, Red
31	T102934	1	Clamp	-
32	19M7938	1	Cap Screw	M10 X 20
33	24M7028	1	Washer	10.500 X 20 X 2 mm
34	-	1	Part 39	MAKE FROM M87571, CTL
35	AT101565	1	Air Filter	-
36	-	1	Part 41	MAKE FROM M87571, CTL
37	TY22464	2	Clamp	-

Mounting Bracket And Hardware (700J Series Crawler)

Нет текстового описания
