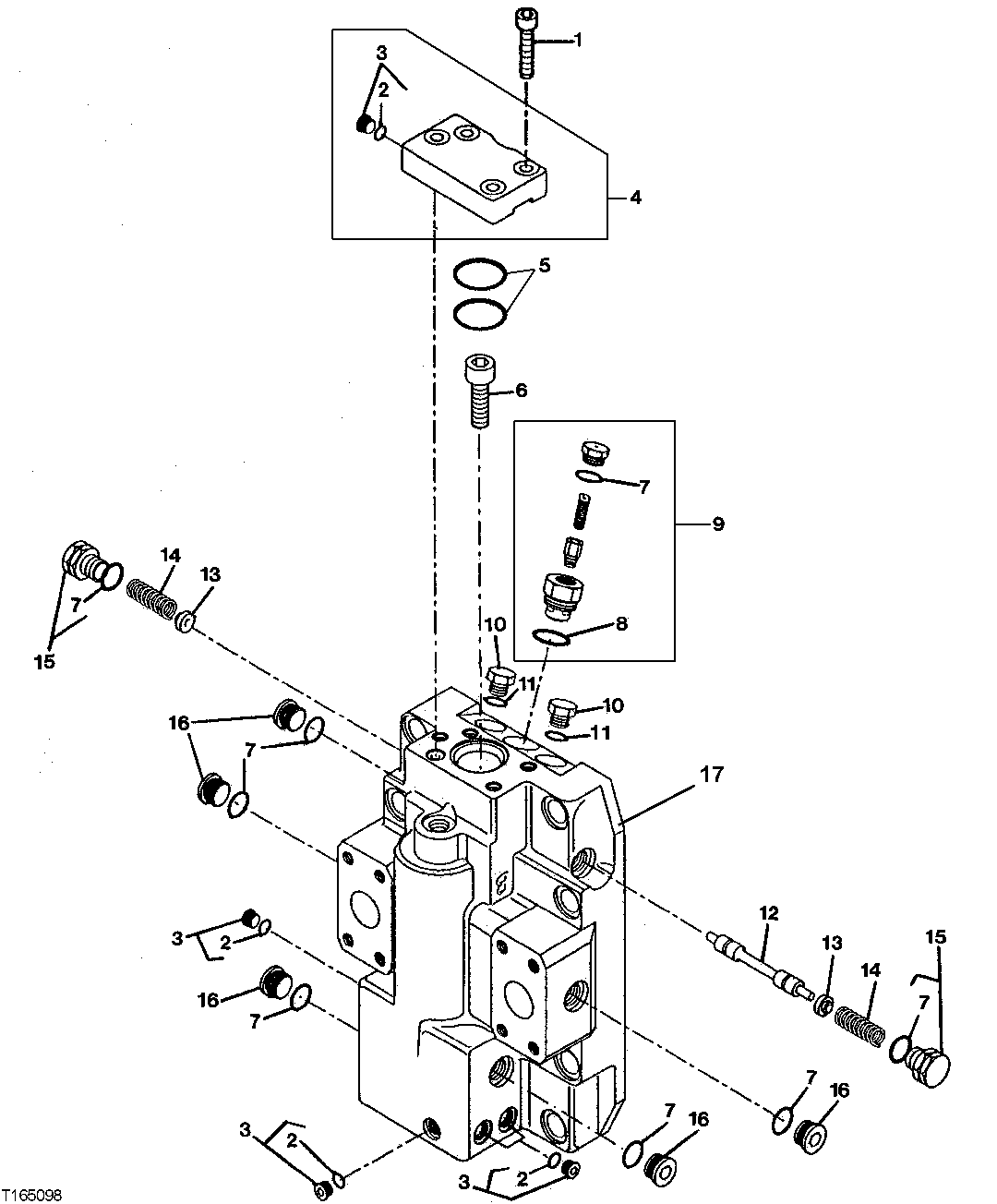

HYDROSTATIC TRACK DRIVE MOTOR END CAP AND FEEDBACK SPRING

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8447	4	Screw	-
2	T165535	4	O-Ring	-
3	AT184869	4	Plug	-
4	AT306983	1	Cover	(SUB FOR AT193399)(SERVO PISTON ASSEMBLY)
5	T158241	1	O-Ring	-
5	T155987	1	O-Ring	-
6	19M7695	1	Screw	M10 X 20, (SUB FOR AT214502)(USE WITH OLD COVERS)
7	M74600	8	O-Ring	(SUB FOR T165493, THIS APPLICATION)
8	R26906	1	O-Ring	-
8	T58477	1	Fitting	-
9	T155742	1	Spring	-
9	AT224194	1	Pressure Relief Valve	(CHARGE PRESSURE RELIEF VALVE)
10	T176383	2	Plug	-
11	R28782	2	O-Ring	-
12	T155741	1	Piston	-
13	-	2	Part 16	(A) (SUB AT196462 ) (SUB FOR T165539, THIS APPLICATION)(SPRING)
14	-	2	Part 17	(B) (SUB AT196462 ) (SUB FOR T162071, THIS APPLICATION)
15	AT220839	2	Plug	(C)
16	T54967	5	Fitting Plug	-
17	T165489	1	Cap	(SUB T190502 AND T190503)
17	T190502	1	Cap	-
17	T190503	1	Gasket	-
18	-	1	Part 23	(PLUG), (SUB AT180814 AND AT196462 ) (SUB FOR AT180812 (NOT ILLUSTRATED) INCLUDES ITEMS MARKED (A), (B) AND (C))

HYDROSTATIC TRACK DRIVE MOTOR END CAP AND FEEDBACK SPRING
