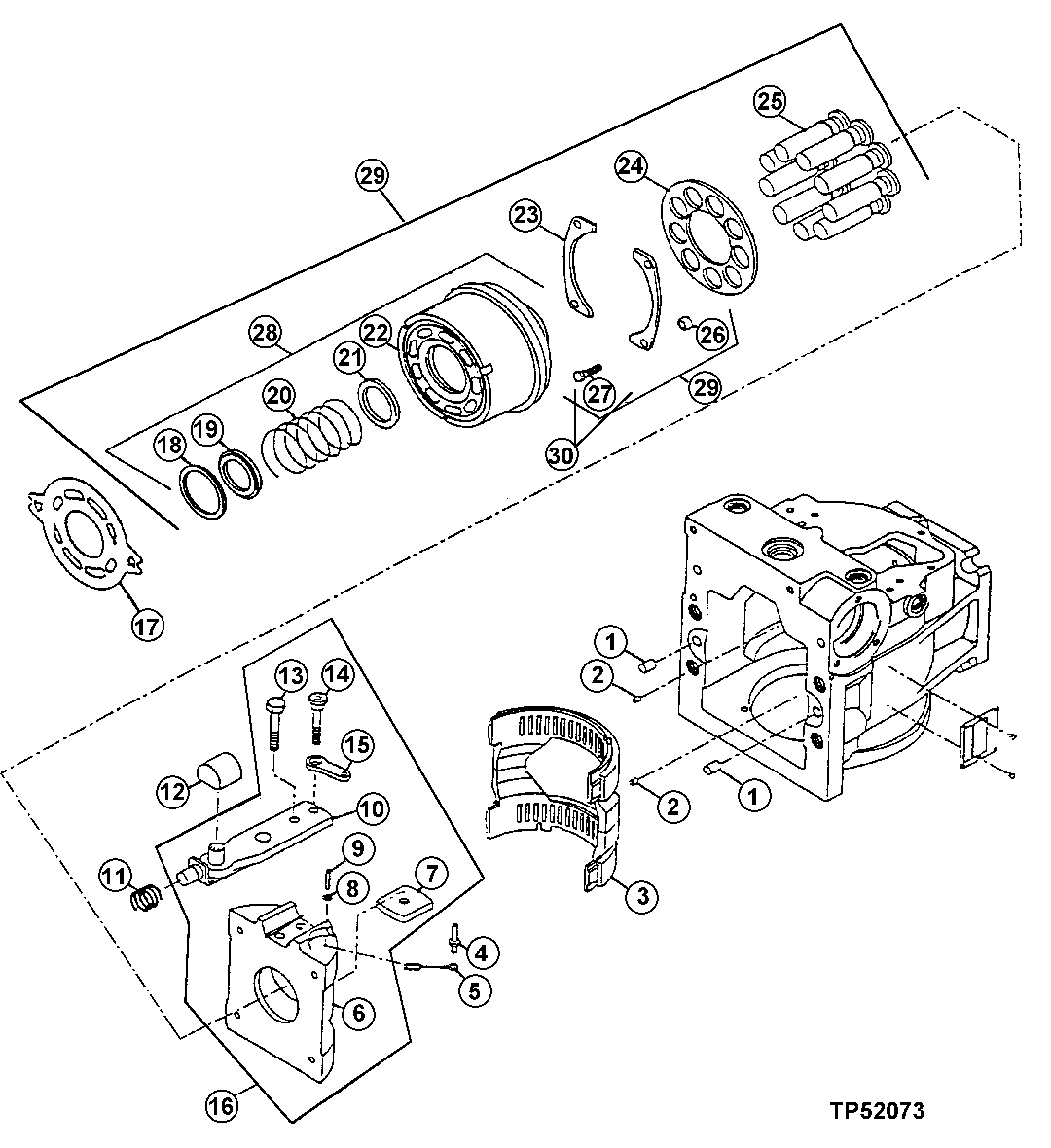

HYDROSTATIC PUMP HOUSING, SWASHPLATE, PISTON AND CYLINDER BLOCK ASSEMBLY

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R726R	2	Dowel Pin	-
2	T155936	2	Pin	-
3	R151062	1	Bearing	-
4	RE159656	1	Pin	-
5	R151065	1	Link	(CAGE LOCATOR)
6	T176242	1	Swash Plate	(VARIABLE)
7	AT214873	1	Guide	(SWASH PLATE)
8	T24199	1	Washer	-
9	AT214874	1	Pin Fastener	(SPIRAL)
10	AT220770	1	Actuator	(SERVO ARM)
11	R151066	1	Spring	-
12	R151075	1	Clamp	(SLIDER BLOCK)
13	T176243	1	Screw	-
14	T176244	1	Screw	-
15	T176245	1	Link	(SUB FOR T179641)(FEEDBACK)
16	RE151064	1	Yoke	(SWASHPLATE ASSEMBLY)
17	R151063	1	Plate	-
18	T176259	1	Ring	(RETAINING)
19	T176258	1	Plate	(SPRING RETAINER)
20	T176256	1	Spring	-
21	T176257	1	Spring Washer	(SEAT)
22	T176260	1	Ring	(SPEED)
23	R151099	2	Bearing	(SLIPPER GUIDE)
24	N220940	1	Guide	(SLIPPER)
25	AN220419	9	Piston	(WELDED ASSEMBLY)
26	T177594	4	Spacer	-
27	T176261	4	Screw	-
28	AT221619	1	Cylinder	(BLOCK ASSEMBLY WITH SPEED RING)
29	AT221620	1	Cylinder Block	(KIT WITH SPEED RING)
29	AT224344	1	Cylinder Block	(KIT WITHOUT SPEED RING)
30	AN220311	1	Seal Kit	(OVERHAUL)(PARTS INCLUDED ON OTHER PAGES)

HYDROSTATIC PUMP HOUSING, SWASHPLATE, PISTON AND CYLINDER BLOCK ASSEMBLY
