HYDRAULIC CONTROL VALVE (FOUR SECTION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT221852	1	Tie Rod Assembly	-
2	14H865	4	Nut	1/2"
3	14H807	2	Nut	7/16"
4	-	3	Part 4	-
7	T118685	5	O-Ring	-
8	AT221848	1	Valve Stack	-
9	24M7047	3	Washer	13 X 24 X 2.500 mm
10	19M7493	3	Cap Screw	M12 X 40
11	U12547	2	O-Ring	-
12	R27175	2	Drain Plug	-
13	AT165736	1	Pressure Relief Valve	-
14	AT83174	1	Fitting Plug	-
15	T183757	1	Seal	-
16	T187884	1	Compression Spring	-
17	19H3554	6	Screw	1/4" X 0.880", (SUB FOR T65036)
18	T118808	3	Cap	-
19	T177849	2	Extension Spring	-
20	T81541	3	Screw	-
21	T81540	6	Retainer	-
22	T178477	1	Spacer	-
23	T178478	1	Spacer	-
24	T177847	7	Plate	(SUB FOR AT223968)
27	T143000	6	Seal	-
30	AT222384	1	Spring Assembly	-
31	T121239	1	Spring	-
32	T152404	1	Sleeve	-
33	T152401	1	Sleeve	-
34	T118708	1	Valve Seat Insert	-
35	T118712	2	Screw	-
36	T118709	1	Valve Seat Insert	-
37	T118711	1	End	-
40	T174722	1	Exhaust Valve	-
41	T81538	4	Poppet	-
42	T81539	4	Spring	-
45	AT280406	1	Seal Kit	(SUB FOR AT178372)(SPOOL) (NOT ILLUSTRATED)
46	21H1352	8	Screw	1/4" X 3/8"
47	AT322180	1	Pressure Relief Valve	(INCLUDES AT314538 ) (SUB FOR AT221849)
47	AT314538	1	Seal Kit	(NOT ILLUSTRATED)
48	AT224726	1	Hyd Actuated Control Valve	(SUB FOR AT211569)(TILT SECTION)
49	AT224725	1	Hyd Actuated Control Valve	(SUB FOR AT211570)(LIFT SECTION)
52	AT224724	1	Hyd Actuated Control Valve	(SUB FOR AT211571)(ANGLE SECTION)
53	AT224727	1	Spool Valve	(AUXILIARY SECTION)
54	AT343701	1	Valve Stack	(WHOLE GOODS) (CONVENIENCE ASSEMBLY), (INCLUDES AT280406 ) (SUB FOR AT224730)

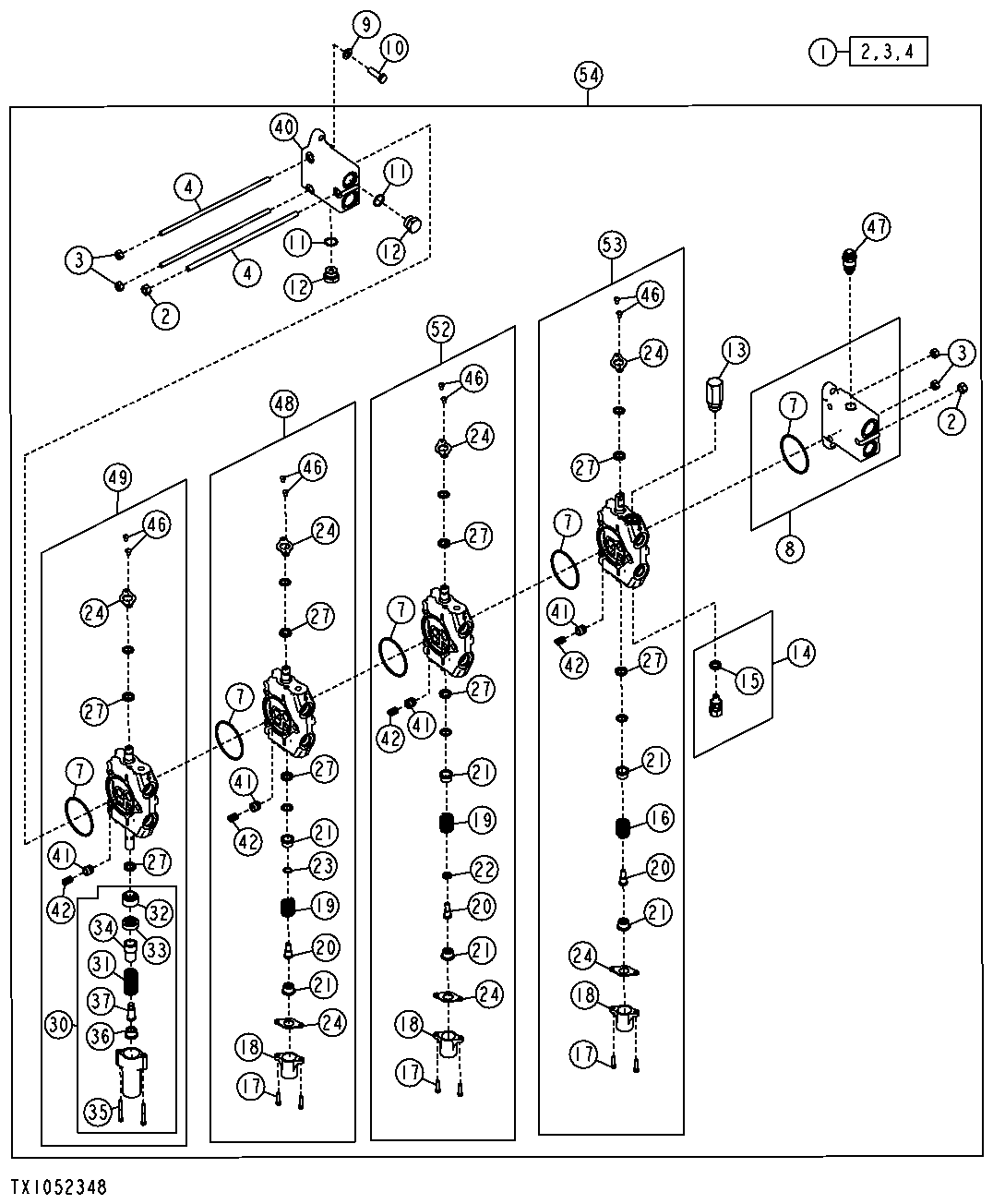

HYDRAULIC CONTROL VALVE (FOUR SECTION)
