Открытый узел

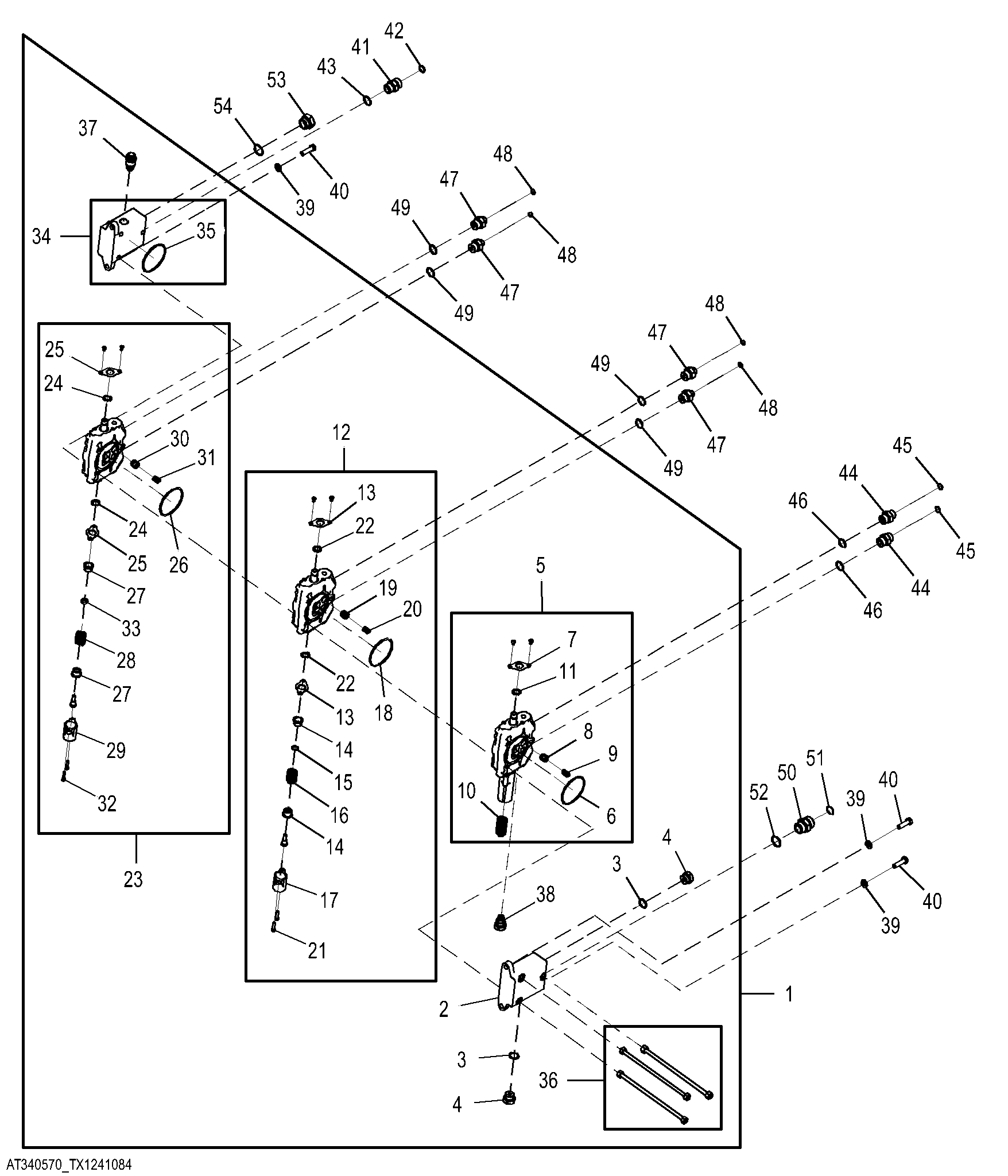

Hydraulic Control Valve Components, Three Section (Marked AT407657)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT280406	1	Seal Kit	USE WITH AT407657
1	AT407657	1	Valve Stack	Convenience Assembly
2	T174722	1	Exhaust Valve	-
3	U12547	2	O-Ring	-
4	R27175	2	Drain Plug	-
5	AT224725	1	Hyd Actuated Control Valve	Lift Section, INCLUDES AT222384
5	AT222384	1	Spring Assembly	-
6	T118685	1	O-Ring	-
7	T177847	1	Plate	-
8	T81538	1	Poppet	-
9	T81539	1	Spring	-
10	T121239	1	Spring	-
11	-	1	Part 13	NSEP, ORDER AT280406
12	AT224726	1	Hyd Actuated Control Valve	Tilt Section
13	T177847	2	Plate	-
14	T81540	2	Retainer	-
15	T178478	1	Spacer	-
16	T177849	1	Extension Spring	-
17	T118808	1	Cap	-
18	T118685	1	O-Ring	-
19	T81538	1	Poppet	-
20	T81539	1	Spring	-
21	19H3554	2	Screw	1/4" X 0.880"
22	-	1	Part 24	NSEP, ORDER AT280406
23	AT224724	1	Hyd Actuated Control Valve	Angle Section
24	-	1	Part 26	NSEP, ORDER AT280406
25	T177847	2	Plate	-
26	T118685	1	O-Ring	-
27	T81540	2	Retainer	-
28	T177849	1	Extension Spring	-
29	T118808	1	Cap	-
30	T81538	1	Poppet	-
31	T81539	1	Spring	-
32	19H3554	2	Screw	1/4" X 0.880"
33	T178477	1	Spacer	-
34	AT221848	1	Valve Stack	-
35	T118685	1	O-Ring	-
36	AT320348	1	Tie Rod Assembly	-
37	AT407405	1	Pressure Relief Valve	3200 PSI, INCLUDES T183756
37	AT314538	1	Seal Kit	USE WITH AT407405
37	T183756	1	Seal	-
38	AT169373	1	Check Valve	Anticavitation, INCLUDES T118681 AND U12547
38	T118681	1	O-Ring	-
38	U12547	1	O-Ring	-
39	24M7047	3	Washer	13 X 24 X 2.500 mm
40	19M7493	3	Cap Screw	M12 X 40
41	38H1163	1	Adapter Fitting	-
42	T77858	1	O-Ring	-
43	U12547	1	O-Ring	-
44	38H1329	2	Adapter Fitting	-
45	T77932	2	O-Ring	-
46	U12547	2	O-Ring	-
47	38H1175	4	Adapter Fitting	-
48	T77857	4	O-Ring	-
49	U12547	4	O-Ring	-
50	38H1164	1	Adapter Fitting	-
51	T76938	1	O-Ring	-
52	R29936	1	O-Ring	-
53	R36636	1	Drain Plug	-
54	R29936	1	O-Ring	-

Hydraulic Control Valve Components, Three Section (Marked AT407657)
