Hydraulic Control Valve Components, Three Section (Marked AT224729)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT320348	1	Tie Rod Assembly	SUB FOR AT221851
2	14H865	2	Nut	1/2"
3	14H807	4	Nut	7/16"
4	-	3	Part 4	-
5	R36636	1	Drain Plug	-
6	R29936	1	O-Ring	-
7	T118685	4	O-Ring	-
8	AT221848	1	Valve Stack	-
9	24M7047	3	Washer	13 X 24 X 2.500 mm
10	19M7493	3	Cap Screw	M12 X 40
11	U12547	3	O-Ring	-
12	R27175	1	Drain Plug	-
13	-	5	Part 13	NLA; ORDER AT280406
17	19H3554	4	Screw	1/4" X 0.880"
18	T118808	2	Cap	-
19	T177849	2	Extension Spring	-
20	T81541	2	Screw	-
21	T81540	4	Retainer	-
22	T178477	1	Spacer	-
23	T178478	1	Spacer	-
24	T177847	5	Plate	-
25	AT169373	1	Check Valve	Anticavitation
27	T143000	5	Seal	-
30	AT222384	1	Spring Assembly	-
31	T121239	1	Spring	-
32	T152404	1	Sleeve	-
33	T152401	1	Sleeve	-
34	T118708	1	Valve Seat Insert	-
35	T118712	2	Screw	-
36	T118709	1	Valve Seat Insert	-
37	T118711	1	End	-
40	T174722	1	Exhaust Valve	-
41	T81538	3	Poppet	-
42	T81539	3	Spring	-
45	AT280406	1	Seal Kit	Not Illustrated Spool
46	21H1352	6	Screw	1/4" X 3/8"
47	AT322180	1	Pressure Relief Valve	(SUB FOR AT221849 ) (INCLUDES AT314538)
47	AT314538	1	Seal Kit	Not Illustrated
48	AT224726	1	Hyd Actuated Control Valve	Tilt Section
49	AT224725	1	Hyd Actuated Control Valve	Lift Section
52	AT224724	1	Hyd Actuated Control Valve	Angle Section
54	AT224729	1	Valve Stack	Furnish Components, NLA, ORDER AT407657
54	AT407657	1	Valve Stack	Components On Separate Page, SUB FOR AT224729

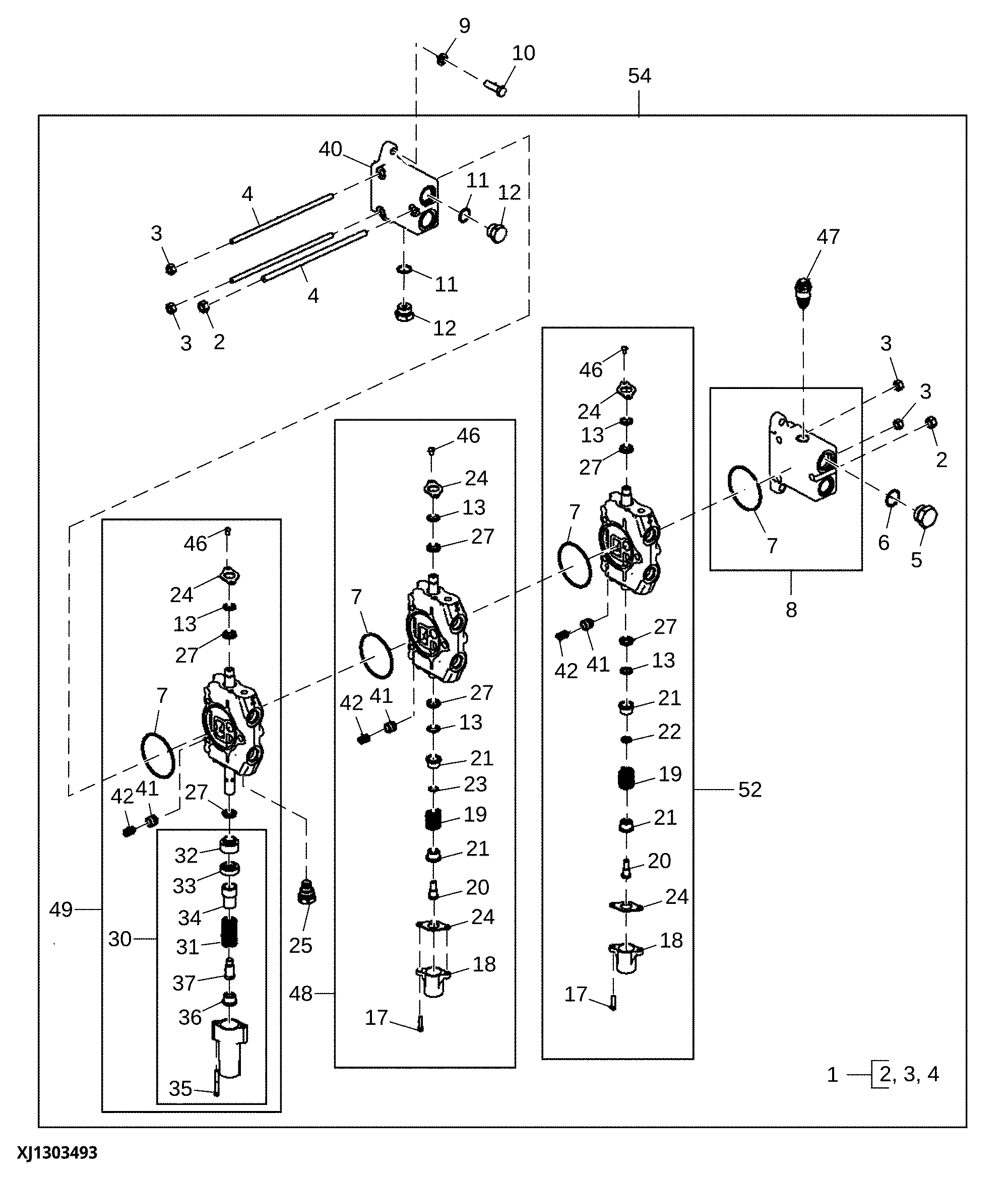

Hydraulic Control Valve Components, Three Section (Marked AT224729)
