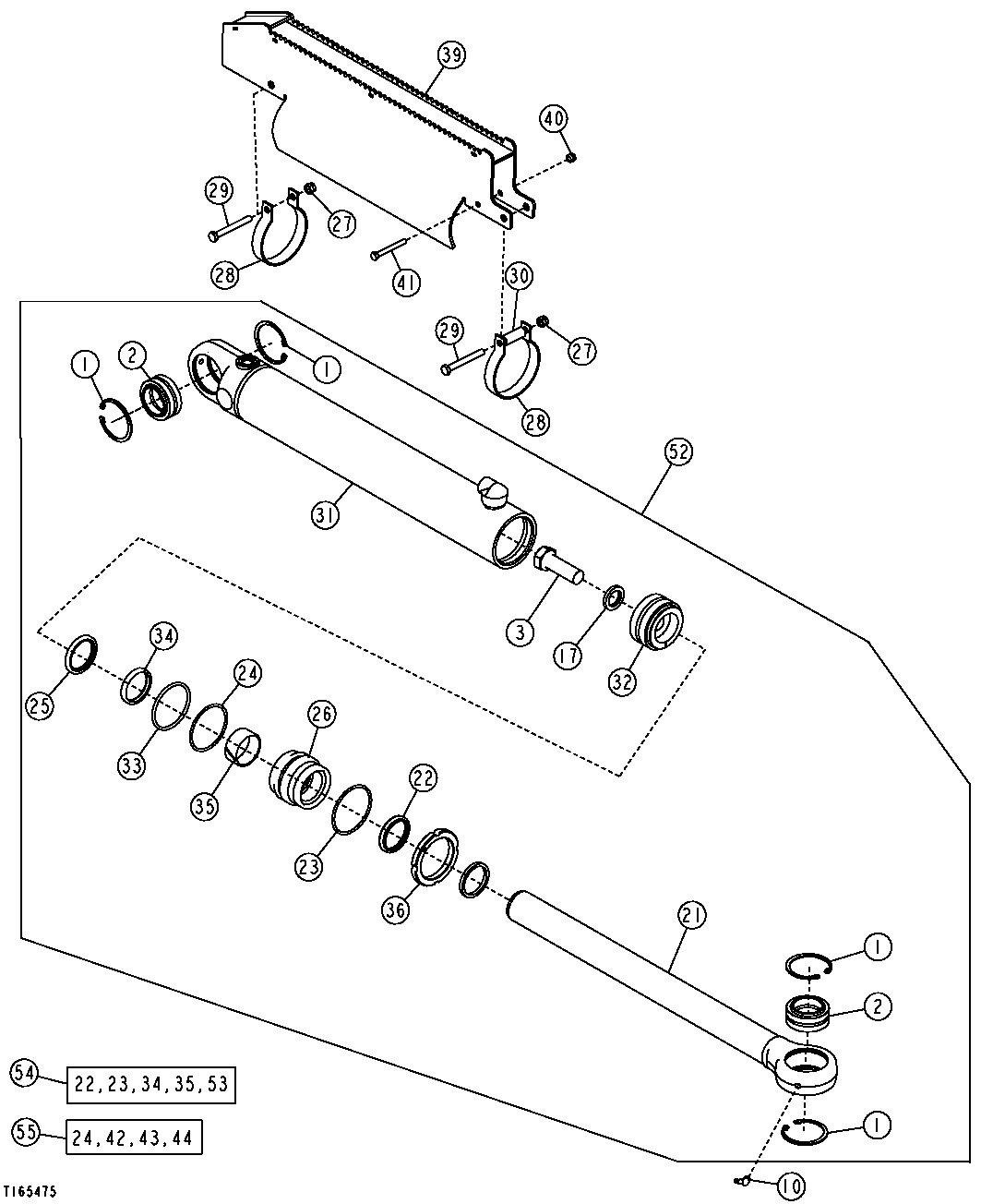

HYDRAULIC ANGLE CYLINDER (SN -925555)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	40M5099	4	Snap Ring	-
2	AH150341	2	Bushing	-
3	19H3632	1	Cap Screw	1" X 3"
10	JD7799	1	Lubrication Fitting	-
17	H145176	1	Washer	-
21	AH169828	1	Hydraulic Cylinder Rod	-
22	AH146558	1	Seal	(WIPER)
23	R81788	1	Ring	(ROD UNIVERSAL)
24	R79101	1	Back-Up Ring	-
25	AH146562	1	Seal	(BUFFER)
26	H171675	1	Hydr. Cylinder Rod Guide	-
27	14M7517	2	Lock Nut	M10
28	T137908	2	Clamp	-
29	19M8197	2	Cap Screw	M10 X 85
30	T101975	1	Bushing	-
31	AH211326	1	Hydraulic Cylinder Barrel	(ALSO ORDER H209264, H206859 AND H180103 ) (SUB FOR AH168829)
32	AH169827	1	Piston	-
33	F1430R	1	O-Ring	-
34	H152204	1	Seal	(ROD)
35	H152795	1	Wear Ring	(ROD)
36	R81794	1	Nut	-
39	AT223552	1	Guard	(RIGHT SIDE CYLINDER STEP GUARD)
39	AT223656	1	Guard	(LEFT SIDE CYLINDER STEP GUARD)
40	14M7426	2	Lock Nut	M8
41	19M7663	2	Cap Screw	M8 X 70
42	R91730	1	Ring	(NOT ILLUSTRATED)
43	E65288	1	O-Ring	(NOT ILLUSTRATED)
44	R83576	1	O-Ring	(NOT ILLUSTRATED)
52	-	2	Part 29	(SUB AH211335 ) (SUB FOR AH169831)
53	H155630	1	Seal	(NOT ILLUSTRATED) (WIPER INSTALLATION TOOL)
54	AH149814	1	Hydraulic Cylinder Kit	(INCLUDES AH146558, AH146562, H152204, H152795 AND H155630)(ROD SEAL)
55	AH212097	1	Hydraulic Cylinder Kit	(SUB FOR AH202290)(BORE SEAL)
