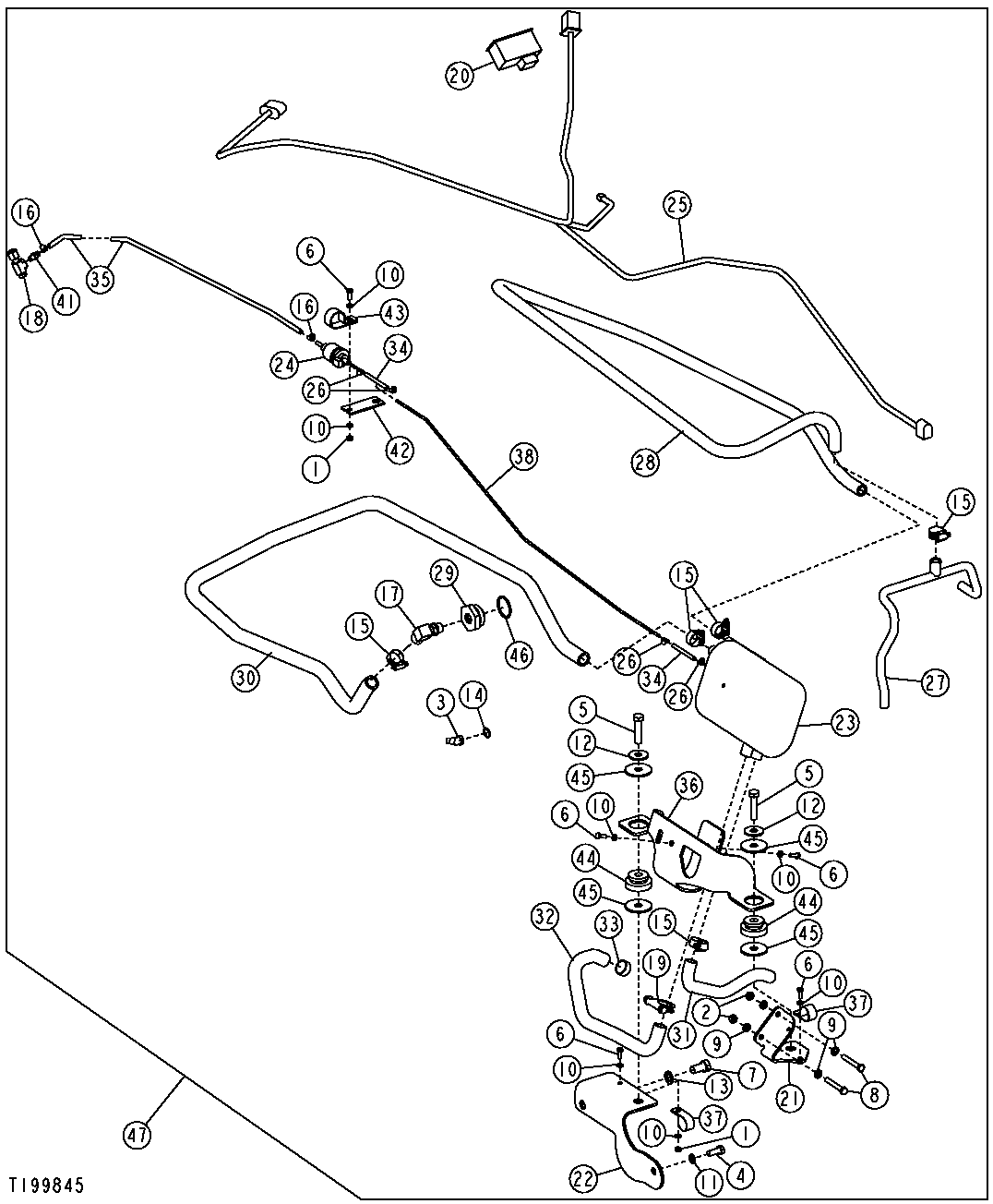

FUEL FIRED COOLANT HEATER (SERIAL NO.920839-)(OLD BRACKETS)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7272	2	Nut	M6
2	14M7273	2	Nut	M8
3	15H219	1	Elbow Fitting	1/8", (MAKE FROM TY22330)(CUT TO LENGTH)
4	19M7167	1	Cap Screw	M10 X 25, (FOR WATER IN)
5	19M7361	2	Cap Screw	M12 X 50
6	19M7560	5	Cap Screw	M6 X 16
7	19M7646	1	Cap Screw	M14 X 25, (MAKE FROM TY22330)(CUT TO LENGTH)
8	19M7981	2	Cap Screw	M8 X 55, (SUB FOR AT222903)
9	24M7036	4	Washer	9 X 16 X 1.600 mm, (24 VOLT DIESEL FUELED COOLANT HEATER)
10	24M7054	7	Washer	6.400 X 12 X 1.600 mm
11	24M7096	1	Washer	10.500 X 18 X 1.600 mm
12	24M7180	2	Washer	13 X 37 X 3 mm
13	24M7427	1	Washer	15 X 24 X 2.500 mm, (FOR AIR IN)
14	51M7043	1	O-Ring	15.300 X 2.200 mm
15	AR21837	5	Clamp	-
16	TY22462	2	Clamp	(SUB FOR AR48236)
17	AT221440	1	Fitting	-
18	AT221560	1	Tee Fitting	-
19	AT221605	1	Clamp	-
20	AT221990	1	Digital Display	-
21	AT222214	1	Bracket	-
22	AT222696	1	Bracket	-
23	AT222697	1	Coolant Heater	-
24	AT223099	1	Fuel Pump	-
25	AT223103	1	Wiring Harness	-
26	AT224094	4	Clamp	(INCLUDES 19M7981, 14M7273 AND (2) 24M7238)
27	AT225605	1	Line	(SCREEN GUARD ON EXHAUST HOSE)
28	-	1	Part 28	(MAKE FROM T78497)(CUT TO LENGTH)
29	R123616	1	Plug	(FUEL LINE ADAPTING HOSE)
30	T177523	1	Bulk Hose	-
31	T177524	1	Bulk Hose	-
32	T177525	1	Bulk Hose	-
33	T177575	1	Exhaust Cap	-
34	T177580	2	Hose	-
35	T178871	1	Hose	-
36	T178901	1	Bracket	-
37	T179306	2	Clamp	-
38	T179467	1	Hose	-
41	T179483	1	Fitting	-
42	T179671	1	Strap	(HEATER FUEL PUMP)
43	T26955	1	Clamp	(EXHAUST OUT)
44	T41770	2	Isolator	(SUPPLY FUEL LINE)
45	T62323	4	Washer	-
46	U13639	1	O-Ring	-
47	-	1	Part 45	(WHOLEGOODS) ( AT307626 NLA) ( AT311173 NLA)
