FUEL FIRED COOLANT HEATER (SERIAL NO.-920838)(OLD BRACKETS)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT221990	1	Digital Display	-
2	AT223103	1	Wiring Harness	-
2	99M7069	1	Fuse	-
3	-	1	Part 4	1.8288M (6 FT.), (MAKE FROM TY22330)
4	T177523	1	Bulk Hose	(COOLANT HEATER WATER IN)
5	T178390	1	Conduit	(NOT ILLUSTRATED)
6	AR21837	6	Clamp	-
7	T77857	1	O-Ring	-
8	RE506350	1	Fitting	(SUB FOR AT222903)
9	AT222697	1	Coolant Heater	(24 VOLT)
10	19M7560	3	Cap Screw	M6 X 16
11	24M7054	5	Washer	6.400 X 12 X 1.600 mm
12	T179306	2	Clamp	-
13	T177524	1	Bulk Hose	(COOLANT HEATER AIR IN)
14	19M7361	2	Cap Screw	M12 X 50
15	24M7180	2	Washer	13 X 37 X 3 mm
16	T62323	2	Washer	-
17	19M7981	2	Cap Screw	M8 X 55
18	24M7036	4	Washer	9 X 16 X 1.600 mm
19	AT222214	1	Bracket	-
20	T178901	1	Bracket	-
21	19M7168	1	Cap Screw	M10 X 30
22	24M7096	1	Washer	10.500 X 18 X 1.600 mm
23	AT222696	1	Bracket	-
24	T41770	2	Isolator	-
25	14M7273	2	Nut	M8
26	AT221605	1	Clamp	(INCLUDES 19M7981, 14M7273 AND (2) 24M7238)
26	24M7238	2	Washer	8.700 X 17 X 2 mm
26	14M7273	1	Nut	M8
26	19M7981	1	Cap Screw	M8 X 55
27	T177575	1	Exhaust Cap	(SCREEN GUARD ON EXHAUST HOSE)
28	TY22462	3	Clamp	(SUB FOR AR48236)
29	T177580	2	Hose	(FUEL LINE ADAPTING HOSE)
30	51M7043	1	O-Ring	15.300 X 2.200 mm
31	AT221440	1	Fitting	-
32	15H219	1	Elbow Fitting	1/8"
35	U13639	1	O-Ring	-
36	R123616	1	Plug	-
38	T178871	1	Hose	-
39	T179483	1	Fitting	-
40	AT221560	1	Tee Fitting	-
41	T26955	1	Clamp	-
42	AT223099	1	Fuel Pump	(HEATER)
43	T177525	1	Bulk Hose	(COOLANT HEATER EXHAUST OUT)
44	T177520	1	Hose	(COOLANT HEATER SUPPLY FUEL LINE)
45	51M7041	1	O-Ring	11.300 X 2.200 mm
46	38H5023	1	Elbow Fitting	-
47	14M7272	2	Nut	M6
48	T179671	1	Strap	-
49	19M7646	1	Cap Screw	M14 X 25
50	-	1	Part 51	( 24M7247 NLA)
51	AT224094	4	Clamp	-
52	-	1	Part 53	(SUB FOR AT222473)( AT311173 NLA)

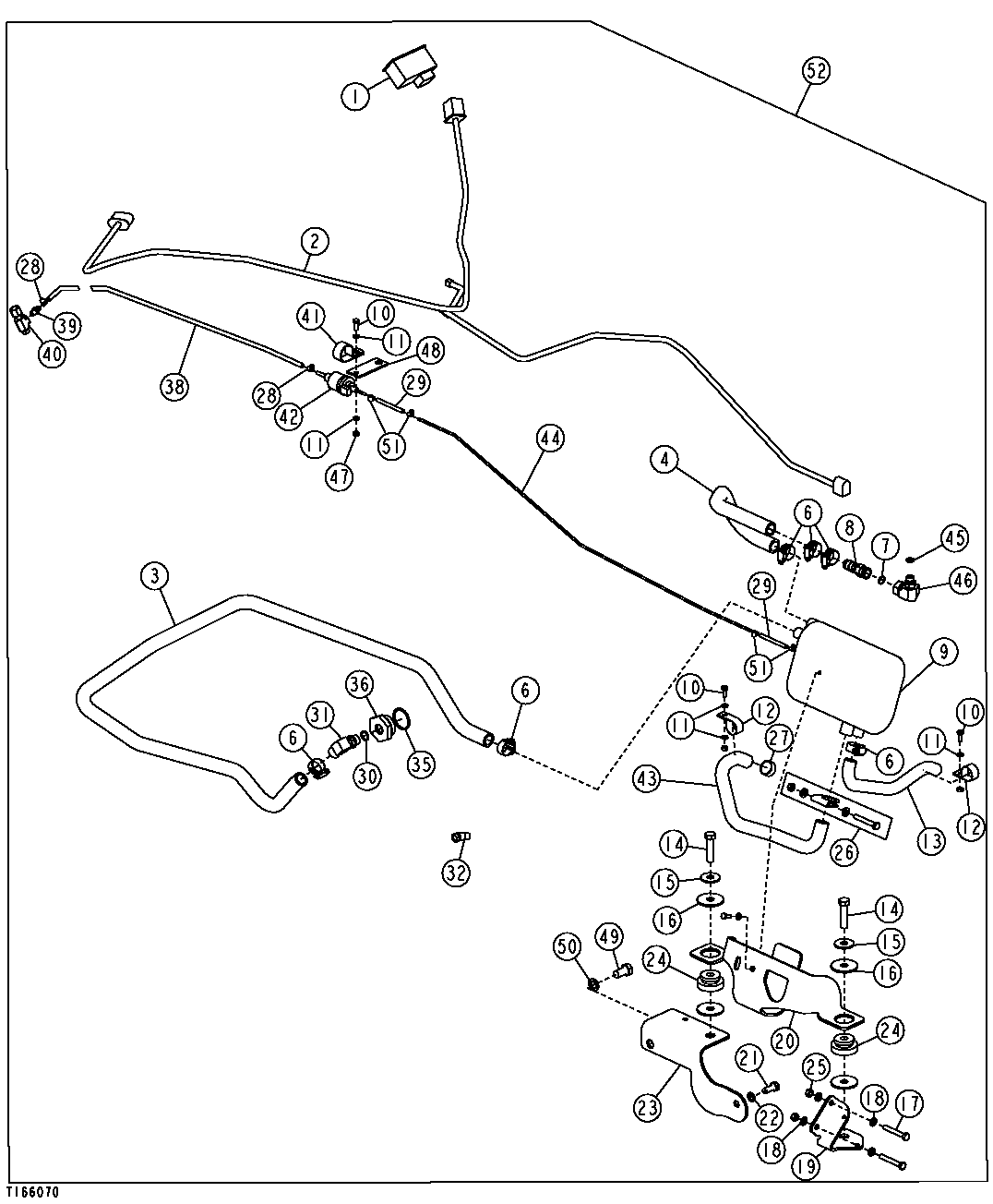

FUEL FIRED COOLANT HEATER (SERIAL NO.-920838)(OLD BRACKETS)
