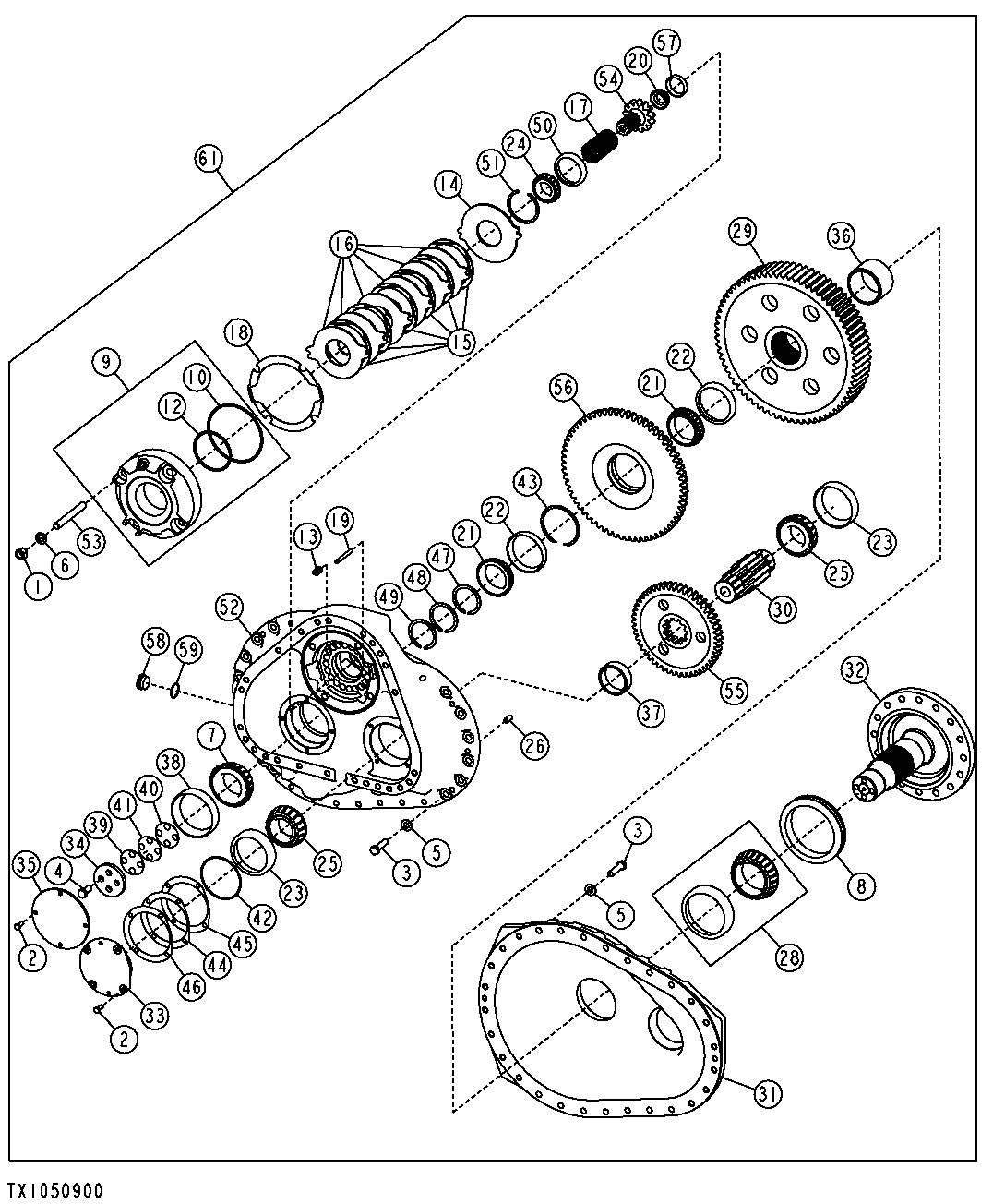

FINAL DRIVES COMPONENTS

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H1058	4	Nut	3/4"
2	19M7402	8	Cap Screw	M10 X 25
3	19M7759	28	Cap Screw	M16 X 60
4	19M8035	4	Cap Screw	M16 X 35
5	24M7241	28	Washer	17 X 34 X 4 mm
6	24M7353	4	Washer	20 X 34 X 3 mm
7	AT220933	1	Bearing Cone	-
8	AT223910	1	Seal	-
9	AT223909	1	Piston	(BRAKE)
10	T169116	1	O-Ring	177.165 X 5.334 mm (6.975" X 0.210")
12	T38489	1	O-RING	116.840 X 5.334 mm (4.600" X 0.210")
13	T167841	20	Compression Spring	-
14	T169107	1	Brake Disk	(PRIMARY)
15	T169108	6	Brake Disk	(ROTATING)
16	T169109	6	Brake Disk	(STATIONARY)
17	T178266	1	Splined Coupling	(13 TOOTH SPLINE - 8/16)
18	T178268	1	Gasket	-
19	T180584	2	Pin	-
20	AT320692	1	Bearing Cone	-
21	JD8177	2	Bearing Cone	-
22	JD8213	2	Bearing Cup	-
23	JD8261	2	Bearing Cup	-
24	JD8924	1	Bearing Cone	-
25	JD8959	2	Bearing Cone	-
26	M3689T	2	Dowel Pin	-
28	RE50957	1	Tapered Roller Bearing	(SUB FOR R115149 AND R115150)
29	T174326	1	Spur Gear	(62 TOOTH SPLINE, 71 TOOTH GEAR)
30	T174327	1	Pinion Shaft	(11 TOOTH, 3RD REDUCTION)
31	T174447	1	Housing	(OUTER)
32	T174975	1	Spindle	352.630 mm (13.883"), (62 TOOTH SPLINE - 16/32)
33	T175549	1	Bearing Housing W/O Bearing	(QUILL, 3RD REDUCTION SHAFT)
34	T175550	1	Spacer	(RETAINER PLATE, AXLE SHAFT)
35	T175551	1	Cover	(AXLE)
36	T175615	1	Spacer	100.160 X 110 X 74.381 mm (3.943" X 4.331" X 2.928"), (AXLE)
37	T175617	1	Spacer	83.460 X 95.250 X 28.665 mm (3.286" X 3-3/4" X 1.129"), (3RD REDUCTION PINION)
38	T176586	1	Bearing Cup	-
39	T177074	1	Shim	0.127 mm (0.005 in)
40	T177075	1	Shim	0.178 mm (0.005 in)
41	T177076	1	Shim	0.254 mm (0.010 in)
42	T177148	1	O-Ring	129.769 X 3.531 mm (5-7/64" X 0.139")
43	T177385	1	Snap Ring	-
44	T177548	1	Shim	0.076 mm (0.003 in)
45	T177550	1	Shim	0.127 mm (0.005 in)
46	T177551	1	Shim	2.565 mm (0.101 in)
47	T178007	1	Snap Ring	3.175 mm (0.125 in)
48	T178008	1	Snap Ring	2.921 mm (0.115 in)
49	T178009	1	Snap Ring	2.667 mm (0.105 in)
50	T178075	1	Bearing Cup	-
51	T275700	1	Snap Ring	2.77 mm (0.109 in), SUB FOR T178076 AND T257310
52	T257327	1	Housing	(LH) ( T178264 NLA)
52	T257326	1	Housing	(RH) ( T178263 NLA)
53	T178265	4	Rod	-
54	T179675	1	Spur Gear	(GEAR 13 TOOTH, SPLINE 13 TOOTH - 8/16)
55	T180548	1	Spur Gear	(SECOND REDUCTION, 50 TOOTH)
56	T180549	1	Spur Gear	(GEAR A 64 TOOTH, GEAR B 48 TOOTH)
57	T214596	1	Bearing Cup	-
58	T77170	2	Fitting Plug	-
59	U15973	2	O-Ring	39.345 X 2.616 mm (1.549" X 0.103")
61	AT383057	1	Drive	(LH), SUB FOR AT222219 AND AT441196
61	AT383058	1	Drive	(RH), SUB FOR AT222218 AND AT441197
