DASH GAUGES AND SPEED READOUT (SERIAL NO.910011- )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT360871	1	Pressure Gauge	(SUB FOR AT185970)(TRANSMISSION PRESSURE)
2	AT178526	1	Audible Warning Alarm	(MONITOR WARNING ALARM)
5	37M7181	2	Screw	-
6	AT374219	1	Vehicle Monitor	(ALSO ORDER AT346452 ) (SUB FOR AT301870, AT223930, AT300075 AND AT307089)
7	-	2	Part 5	(SUB T207060)( T163309 NLA)
8	T180033	1	Instrument Panel	-
13	T154361	1	Plug	-
20	R44342	1	Nut	-
21	R52725	1	Electrical Connector Assy	Ground (NOT USED ON TIER 2 ENGINES)
22	AT195301	1	Switch	(INCLUDES AT195302 ) (SUB FOR AT145931)
23	AT195302	1	Key	-
24	AT220991	1	Lock	(DASH COVER LOCK)
25	T172677	1	Cover	(DASH COVER)
26	T160015	1	Bumper	-
27	T180034	1	Housing	(SUB T180034, T181030, T182010 AND (2) 37H95 ) (SUB FOR T170470)
28	T134895	4	Self-Locking Screw	-
29	T151711	1	Label	(PARK LOCK)
30	14H631	2	Nut	0.190"
31	AT224316	4	Bulb	(LAMP 24 VOLT BULB)
33	12H295	2	Lock Washer	0.190"
34	T74617	1	Bracket	-
35	AT210836	1	Hydraulic Hose	-
36	T49206	1	Adapter Fitting	-
37	F122315	1	Bulb	(NOT ILLUSTRATED)
38	-	1	Part 25	(NOT ILLUSTRATED)
39	AT312566	1	Warning Light Kit	(WINCH OIL PRESSURE), (NOT ILLUSTRATED)

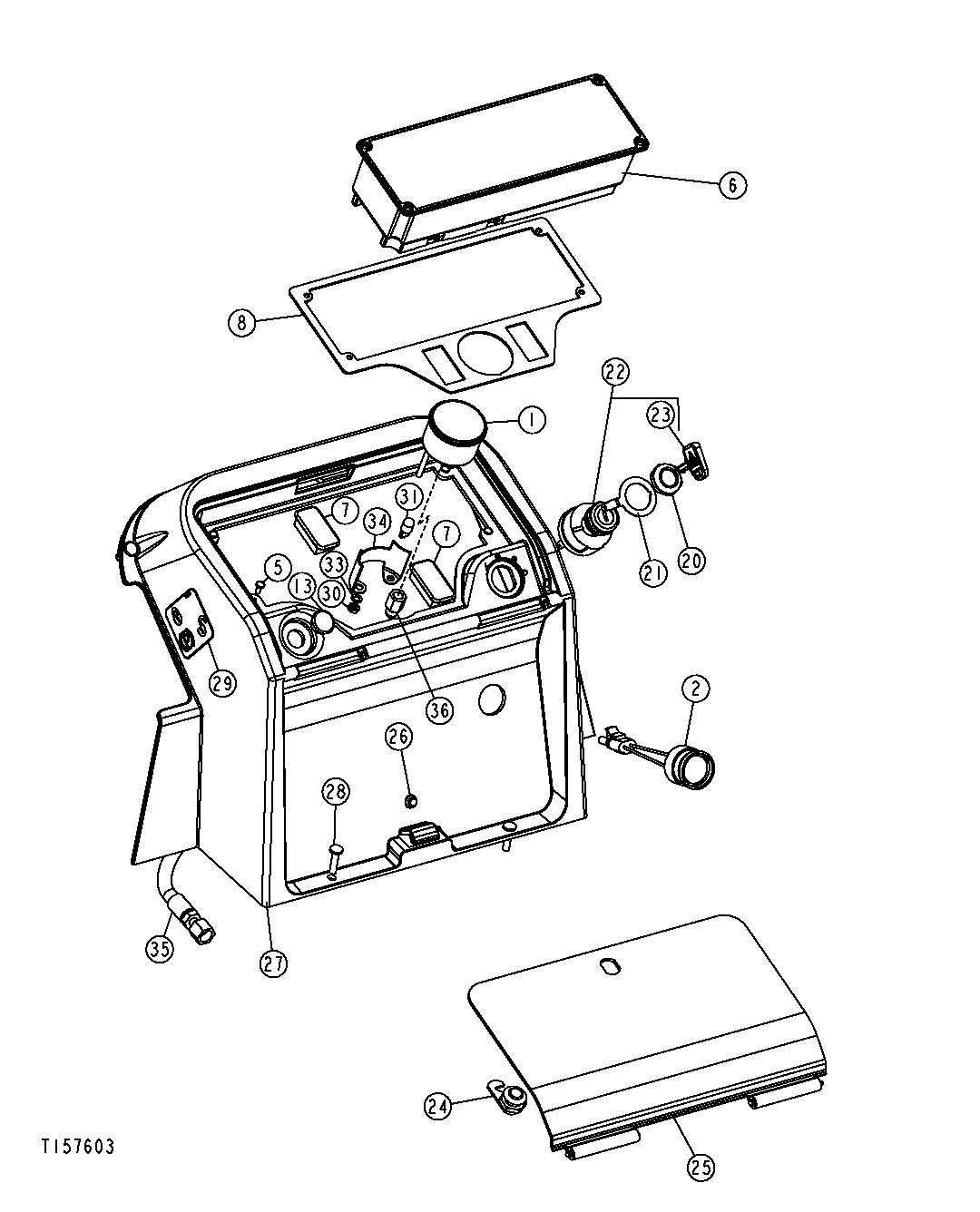

DASH GAUGES AND SPEED READOUT (SERIAL NO.910011- )

Нет текстового описания
